Exhaust Manifold Gaskets

When should you not reuse them? Or should you just get new ones after 1xx,xx miles?
Old 12-16-06, 08:14 AM
  #2
Respecognize!


Whizbang's Avatar

Join Date: Sep 2004
Location: Anchor Bay, CA
Posts: 4,106
Received 71 Likes on 42 Posts
ive reused ones before that were in good condition, but it really depends on how the look once you get the manifold off. But at the same time the likely hood that an exhaust leak will form is greater.
Old 12-16-06, 08:21 AM
  #3
HDP
A Fistfull of Dollars!

Thread Starter
iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts
One of my original gaskets was actually missing part of the inner lip so I obtained a "new" used one from a friend but the one he sent has a small crack on the inner lip as well. Should I scrap that one also?
Old 12-16-06, 08:44 AM
  #4
Rotary Freak


chinaman's Avatar

Join Date: Dec 2001
Location: Macungie, Pennsylvania
Posts: 1,802
Likes: 0
Received 0 Likes on 0 Posts
The shop manuel recommends changing them when you pull off the manifold. Due to the high price of these, it forces people to re-use them. I was fortunate to find a brand new set someone was selling on e-bay for $50. I get a discount on Mazda parts at the local dealer. I can check into them for you or, you can give Ray at Mallory Mazda a call (sorry, don't know the # off the top of my head).
Old 12-16-06, 08:49 AM
  #5
HDP
A Fistfull of Dollars!

Thread Starter
iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts

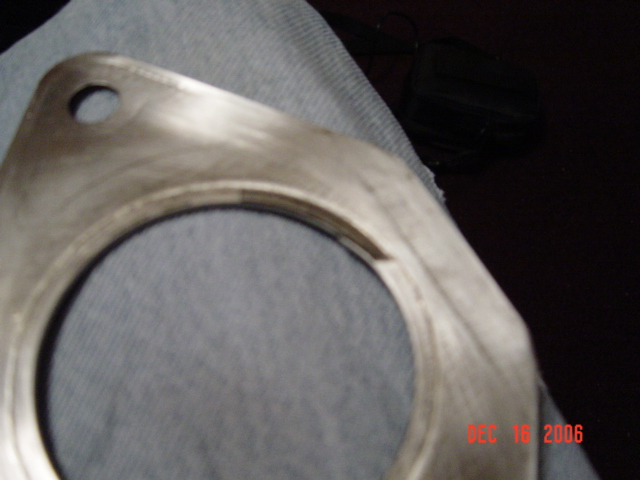

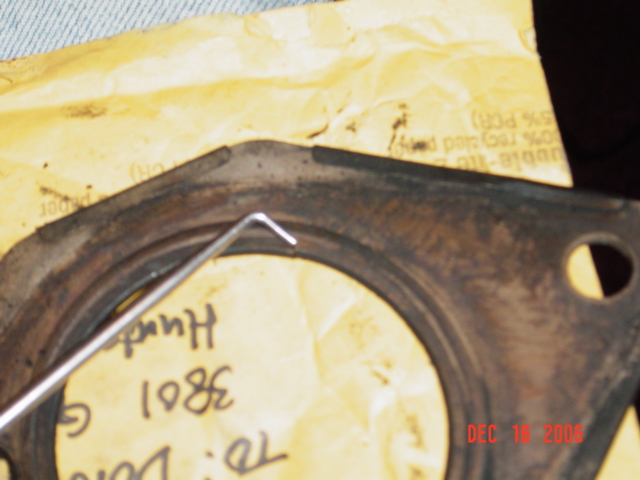

Here's a couple of pics of the gaskets. The first pic is my original (cleaned) with part of the inner lip missing and the second pic is the new one with a small crack indicated by the pick tool.
Attached Thumbnails Exhaust Manifold Gaskets-picture3-048.jpg   Exhaust Manifold Gaskets-picture3-055.jpg
Old 12-16-06, 09:23 AM
  #6
Rotary Freak


chinaman's Avatar

Join Date: Dec 2001
Location: Macungie, Pennsylvania
Posts: 1,802
Likes: 0
Received 0 Likes on 0 Posts
I would'nt use that (2nd one). I'm sure I have a set of used but good condition ones, will look for them and let you know.
Old 12-16-06, 09:26 AM
  #7
HDP
A Fistfull of Dollars!

Thread Starter
iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts
Originally Posted by chinaman
I would'nt use that (2nd one). I'm sure I have a set of used but good condition ones, will look for them and let you know.
Thanks.
Old 12-16-06, 09:33 AM
  #8
Nearing Completion...

iTrader: (473)

str8ryd's Avatar

Join Date: Aug 2006
Location: Chicago
Posts: 4,735
Likes: 0
Received 0 Likes on 0 Posts
PM'd thread starter. I have a good condition set. Let me know if you're interested.
Old 12-16-06, 12:57 PM
  #9
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
Most times, you can re-use them. It's just one of those things you don't want to have to tear back into it if you have an exhaust leak.

The stainless gaskets Mazda uses are VERY hardy, and can be re-used many times. They usually fail if you have the bolts/nuts/studs that hold the flange together come loose and create a gap - this will blow the gasket out in short order.

Dale
Old 12-16-06, 01:03 PM
  #10
HDP
A Fistfull of Dollars!

Thread Starter
iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts
Originally Posted by DaleClark
Most times, you can re-use them. It's just one of those things you don't want to have to tear back into it if you have an exhaust leak.

The stainless gaskets Mazda uses are VERY hardy, and can be re-used many times. They usually fail if you have the bolts/nuts/studs that hold the flange together come loose and create a gap - this will blow the gasket out in short order.

Dale
Well, what causes them to crack like the ones posted above?
Old 12-16-06, 02:42 PM
  #11
Out of the game

iTrader: (1)

tdazmansFD's Avatar

Join Date: Dec 2004
Location: Reno NV
Posts: 637
Likes: 0
Received 0 Likes on 0 Posts
I'm not sure how much the OEM replacements go for but, you can get them from www.mazdatrix.com for about $76 per housing.
