airboarder

iTrader: (6)

Hey guys I just wanted to get some info on removing my 13b. I have everything disconnected, yes even the fly wheel clip that keeps the engine attached to the tranny. My question is what's the best place to hook-up the cherry picker to pull the engine out? If anyone has some info on this I would really appreciate it. I have to rebuild it cuz some crappy mechanic blew the engine while dyno-tuning it and he won't say he screwed up and pay to fix it like he should. Just in case anyone was wondering why I was pulling it out. Anyways please let me know what the best lift point are since I have never pulled a 13b. Thanks for the help.

-TC

3rdgenguy

iTrader: (1)

i put a bracket on the uim looped a chain in that to the braket on the end plate and it was out.

FixableUnknown

iTrader: (8)

Should be 2 engine hoist brackets on the engine. 1. Drivers side front on the engine near the alternator. 2. passenger side rear bolted to the back of the UIM. If yours are missing you can fab some. It also helps to use a hoist leveler http://www.northerntool.com/webapp/w...70_19979_19979

Sgtblue

iTrader: (16)

Banzai-Racing

iTrader: (11)

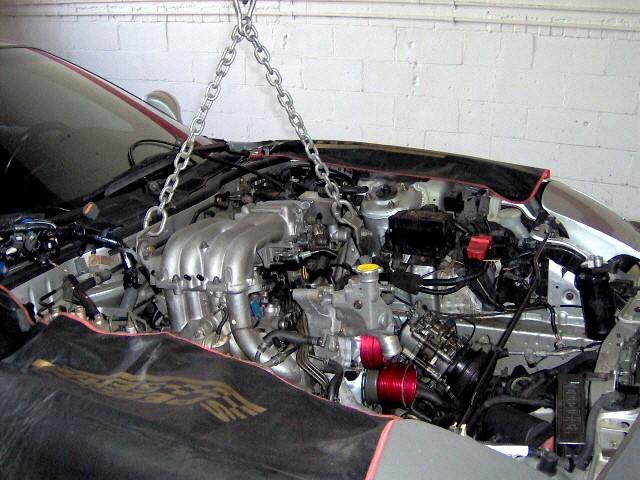

Here is another pic

Ratjar

iTrader: (1)

see above...
