EGT dilema
#1
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
EGT dilema
hey guys so .. after my new rebuild .. ( blew a Atkins apex seal .. just the very end ... but no harm done to the housings and or rotors miraculously ... i don't understand ) i have a bit of an issue , while cruising and breaking in the motor...when i took my foot off the gas on the freeway , my egt gauge gives an alarm ( 900 C ) at twins exit b4 dowpipe ... i was like WTF is this .. i have never seen 900 even boostng 13 PSI ... b4 rebuild
rebuild using rotary aviation O ring kit
RX7 specialties 2,, apex seals and springs
new side seals
all the rest including bearings are 15k km`s old ( atkins )
What can cause EGT`s to shoot up on deceleration ( throttle off ) ... mainly above 4K???? i am really puzzled by this
details :
Stock ECU + HKS fcon V 2.1 pro ( not PFC F-CON ) mapped by FEED ( timing and fuel ) NEW [ used to have pettit unlimited b4 rebuild ]
Upgraded exhaust all 3" cat rez muffler
upgraded intercooler ( quivalent to pettit medium stock mount )
plugs 4 x b9egv ( no resistor ) NEW [ stock 7`s 9`s b4 rebuild ]
2 boost controlers
that`s about it for engne related stuff
b4 rebuild ... car ripped the asphalt from the floor ... ( primary 12 ... secondary 13 psi )
all i changed is what is indicated above
now i get egt hot as hell on decel .... i did not push the car yet to boost past 7 psi ... still want to give the new parts some sealing time
also seem to have some ignition break off boost >5K rpm
what can cause this ????
thx for reading
rebuild using rotary aviation O ring kit
RX7 specialties 2,, apex seals and springs
new side seals
all the rest including bearings are 15k km`s old ( atkins )
What can cause EGT`s to shoot up on deceleration ( throttle off ) ... mainly above 4K???? i am really puzzled by this
details :
Stock ECU + HKS fcon V 2.1 pro ( not PFC F-CON ) mapped by FEED ( timing and fuel ) NEW [ used to have pettit unlimited b4 rebuild ]
Upgraded exhaust all 3" cat rez muffler
upgraded intercooler ( quivalent to pettit medium stock mount )
plugs 4 x b9egv ( no resistor ) NEW [ stock 7`s 9`s b4 rebuild ]
2 boost controlers
that`s about it for engne related stuff
b4 rebuild ... car ripped the asphalt from the floor ... ( primary 12 ... secondary 13 psi )
all i changed is what is indicated above
now i get egt hot as hell on decel .... i did not push the car yet to boost past 7 psi ... still want to give the new parts some sealing time
also seem to have some ignition break off boost >5K rpm
what can cause this ????
thx for reading
#3
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
900c`s at the downpipe but my probe is not in the down pipe it`s in between the 2 turbo`s ... 1cm b4 the downpipe flange .
car has no more emissions equipment ( no air pump , no double throttle , no nothing )
i have a high flow cat
it did not do this b4 i resembled it
the only chages is the HKS ecu and the plugs ... that`s it
if i accel it`s fine egt`s are good ... but smetimes when i lift off ... they shoot up
but lets say .. hypothetical situation .... what can cause a egt rise on full decel ??? ( timing .... fuel ... tps ... ) ?
THX
car has no more emissions equipment ( no air pump , no double throttle , no nothing )
i have a high flow cat
it did not do this b4 i resembled it
the only chages is the HKS ecu and the plugs ... that`s it
if i accel it`s fine egt`s are good ... but smetimes when i lift off ... they shoot up
but lets say .. hypothetical situation .... what can cause a egt rise on full decel ??? ( timing .... fuel ... tps ... ) ?
THX
#4
Lives on the Forum
iTrader: (6)
How about this (says the person who is no mechanic): Is fuel cut set on your car? Maybe on decel your car is not cutting fuel and it is igniting and shooting flames, hence the dramatic rise in EGT temps.
As a guy who was shooting flames out the back, I set fuel cut upon decel and no more flames. never did look at EGTs when this happened, but I would assume temps would go way up when exhaust gases are ignited.
Just a thought.
As a guy who was shooting flames out the back, I set fuel cut upon decel and no more flames. never did look at EGTs when this happened, but I would assume temps would go way up when exhaust gases are ignited.
Just a thought.
#5
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
that is what i am thinking as well ... my ECU is not detecting idle status of TPS ( which i set to correct voltage ) ... and continues to provide some fuel on decel
and as for fuel cut ... im not able to set any on the car ... it`s stock ecu with a pre programmed HKS ecu piggyback
and as for fuel cut ... im not able to set any on the car ... it`s stock ecu with a pre programmed HKS ecu piggyback
#6
Lives on the Forum
iTrader: (6)
that is what i am thinking as well ... my ECU is not detecting idle status of TPS ( which i set to correct voltage ) ... and continues to provide some fuel on decel
and as for fuel cut ... im not able to set any on the car ... it`s stock ecu with a pre programmed HKS ecu piggyback
and as for fuel cut ... im not able to set any on the car ... it`s stock ecu with a pre programmed HKS ecu piggyback
IF (and that is a big IF) this is the case, can't you get a fuel management system to take care of this? I think the AFC-NEO incorporates fuel cut into its program so you could compensate for too much fuel at decel. Others probably do also.
#7
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
i will try running stock ecu alone see what it does .... ... then add the hks
i was just wondering if anyone else has experienced this
and there are not considerable backfires made... some small pop`s
im gonna have a friend drive behind me and check for flames
i was just wondering if anyone else has experienced this
and there are not considerable backfires made... some small pop`s
im gonna have a friend drive behind me and check for flames
Trending Topics
#9
rotorhead
iTrader: (3)

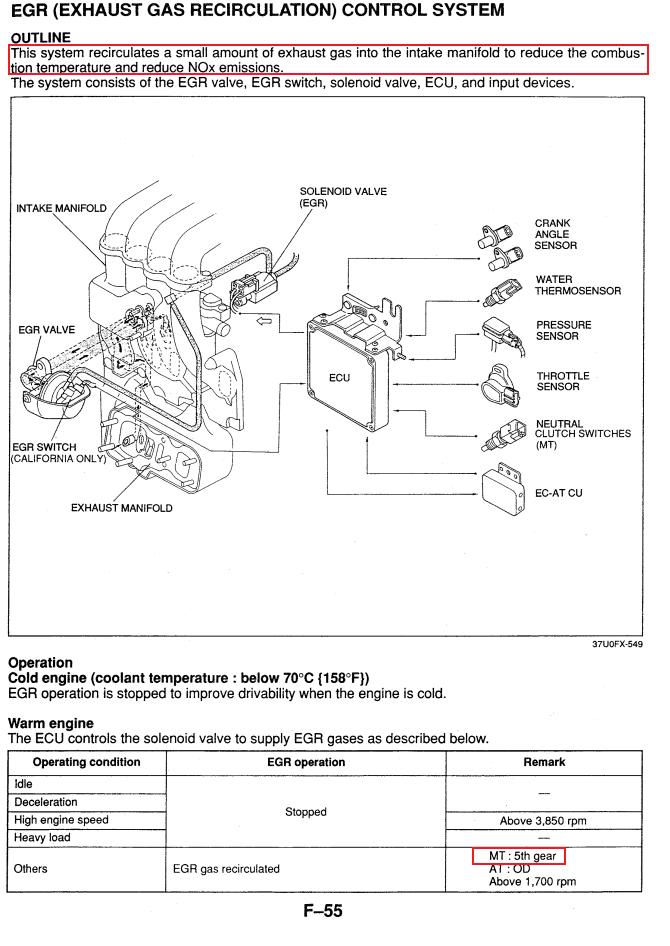

I'm not convinced there's anything wrong. Running in 5th gear on the highway produces very high EGT's, especially with stock ports and stock turbos. Those are the only conditions under which the factory EGR system operates. The purpose of EGR is to reduce EGT's in order to limit NOx emissions.
Last edited by arghx; 07-27-09 at 09:49 PM. Reason: diagram
#10
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
i actually dont have EGR , i have a JDM fd3s im sorry i forgot to mention that
so here is the update
non resistor plugs seem to interfere with the HKS computer ( b9egv ) and possibly my prosport electric gauges
i swapped them out for stock 9`s all over and no more rising egt , no more unstable idle .. misfires
and max egt`s are now at 750 C at turbo exit ( down pipe flange ) when boosting on the highway 2-3-4 ... ( 12.5 psi )
i just wasted money on 12 b9egv .............. but hey .. i just saved a bunch of money on my car insurance .... GAIKO !!!! ( j/k)
so it appears for now ... non resistor plugs = no no with HKS ECU ... and /or prosport electric gauges
i appreciate youz all reading and scratching your heads on this one
so here is the update
non resistor plugs seem to interfere with the HKS computer ( b9egv ) and possibly my prosport electric gauges
i swapped them out for stock 9`s all over and no more rising egt , no more unstable idle .. misfires
and max egt`s are now at 750 C at turbo exit ( down pipe flange ) when boosting on the highway 2-3-4 ... ( 12.5 psi )
i just wasted money on 12 b9egv .............. but hey .. i just saved a bunch of money on my car insurance .... GAIKO !!!! ( j/k)
so it appears for now ... non resistor plugs = no no with HKS ECU ... and /or prosport electric gauges
i appreciate youz all reading and scratching your heads on this one
#12
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
i dont have a twin power .. i have a HKS fcon v piggyback ( JDM equivalent of the pettit unlimited )
now that i rethink about it .. i regret getting these plugs .. and spending time enlarging the housing plug socket to fit my modified socket tool ... to get interfernece ...
bah .... who ever wants .. 12 B9EGV`S ... 8 are brand new ... 4 have 2 hours idle time and 150 km`s .after a rebuild let me know
now that i rethink about it .. i regret getting these plugs .. and spending time enlarging the housing plug socket to fit my modified socket tool ... to get interfernece ...
bah .... who ever wants .. 12 B9EGV`S ... 8 are brand new ... 4 have 2 hours idle time and 150 km`s .after a rebuild let me know
