Heres a quick diagram I made based on what Howard posted. I didnt list the hose lengths because I forgot what the actual measurements were but my lines ended up being much shorter than Howard's measurements. I bought 10 feet or hose and had plenty left over.
This should be much easier to understand for people having a hard time with this mod.
This should be much easier to understand for people having a hard time with this mod.
So the thermostat opens when it is above a certain temp. So what happens when the first cooler opens, cools the oil, then goes to the second cooler, but is now below the thermostat temp, and it remains closed? Is there another return line that is not on this dwg?
I know this setup obviously works because so many people are running it, I'm trust trying to fully understand how it works.
#202
Senior Member
iTrader: (11)
There is a thermostat in each cooler. All they do is close (when oil is hot enough) a shunt passage in the cooler port block that acts as a bypass when the oil is below temp. When tstat open (oil not hot enough) the oil just flows from one line, through the shunt passage, into the other and exits. It is possible at times that oil is hot enough to close the tstat in the first cooler but not the second.
The thermostat as the oil gets hotter lengthens and a disk on the end of it closes off the bypass. That's all it does.
The thermostat as the oil gets hotter lengthens and a disk on the end of it closes off the bypass. That's all it does.
#204
Radioactive Rotary Rocket
Join Date: Aug 2005
Location: Minneapolis, MN
Posts: 1,061
Likes: 0
Received 0 Likes
on
0 Posts
#206
It Just Feels Right
iTrader: (11)
Banzai Racing Oil Cooler Bracket Kit (93+ RX-7)
#207
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
Remember that in winter you most likely need to totally block one oil cooler to prevent your oil from being too cold!
I have to do this even down here in Houston with the stock R1 coolers.
I have to do this even down here in Houston with the stock R1 coolers.
#208
It Just Feels Right
iTrader: (11)
For aftermarket, you could devise a multiple T-stat system. I run dual 25's in series off a single 185F T-stat. The oil temps are fairly digital. Once it hit's 185, bam! the temps drop significantly then creep back up to 185 when the process starts all over.
#211
Senior Member
iTrader: (23)
Heres a quick diagram I made based on what Howard posted. I didnt list the hose lengths because I forgot what the actual measurements were but my lines ended up being much shorter than Howard's measurements. I bought 10 feet or hose and had plenty left over.
This should be much easier to understand for people having a hard time with this mod.
This should be much easier to understand for people having a hard time with this mod.
I'd like to tackle this mod over the winter, but I have a question. If you are using an extra drivers side cooler on the passenger side (as shown in the above diagram), wouldn't the input to the PSide cooler be the position numbered #4? and not #3. I didn't see anything definitive in the thread saying you can route the oil through either fitting on the cooler and still have the thermostat function as intended.
Thanks
#212
Full Member
iTrader: (7)

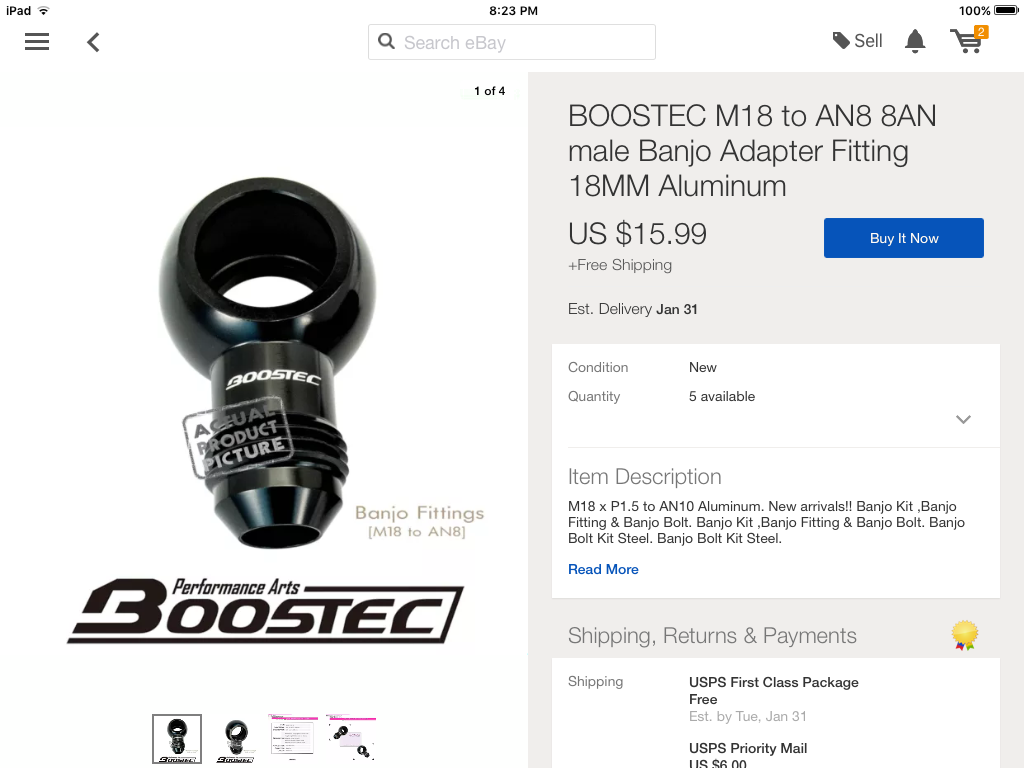

I'm doing this. Howard's pics don't show anymore. Trying to confirm that 18x1.5 steel screws into front conver where oil supply to current cooler is. Then 150 8an attaches to that? Can someone post up a pic or confirm? Also, why not keep the banjo bolt from that fitting and use this and a 45?
#213
Racecar - Formula 2000
I'd like to tackle this mod over the winter, but I have a question. If you are using an extra drivers side cooler on the passenger side (as shown in the above diagram), wouldn't the input to the PSide cooler be the position numbered #4? and not #3. I didn't see anything definitive in the thread saying you can route the oil through either fitting on the cooler and still have the thermostat function as intended.
Thanks
Thanks
#217
Senior Member
iTrader: (23)
I snapped a few pics of my progress. There are no active photographs on this thread showing the stock DS cooler mounted on the PS.
Is what I have done so far pleasing to the eye? No. Is it mounted securely? Yes. I will trim the excess metal on the brackets once I have everything plumbed and tested.
The mounting points on the cooler look to be spot welded on and I wasn't going to chance damaging the cooler or causing a leak by drilling them out to remove the factory brackets. But there is not much else on the cooler to secure new mounts. I do not want to attempt welding to the cooler, but I know others have.
The rear hanger on the back seems to work as is, though the bracket I had was mangled a little before I straightened it out.
I was able to use a 3/4" hole saw to make the holes to use the factory rubber isolators.
I have some additional SS hardware still to incorporate, the self tappers are there just for mock up. So far all the measurements I have taken indicate I am really close to where I need to be. Will put the stock bumper back on this week and check location against the openings. I ordered the R-magic 99 ducts, so I have a few more weeks to wait either way.
Is what I have done so far pleasing to the eye? No. Is it mounted securely? Yes. I will trim the excess metal on the brackets once I have everything plumbed and tested.
The mounting points on the cooler look to be spot welded on and I wasn't going to chance damaging the cooler or causing a leak by drilling them out to remove the factory brackets. But there is not much else on the cooler to secure new mounts. I do not want to attempt welding to the cooler, but I know others have.
The rear hanger on the back seems to work as is, though the bracket I had was mangled a little before I straightened it out.
I was able to use a 3/4" hole saw to make the holes to use the factory rubber isolators.
I have some additional SS hardware still to incorporate, the self tappers are there just for mock up. So far all the measurements I have taken indicate I am really close to where I need to be. Will put the stock bumper back on this week and check location against the openings. I ordered the R-magic 99 ducts, so I have a few more weeks to wait either way.
#222
Senior Member
iTrader: (23)
For anyone out there who has gone the route of adding S/S screen mentioned in the first couple of pages, how did you keep it in place? Did you safety wire it directly to the cooler? Or maybe to the bumper cover?
I am going to be running a 99 bumper and I have R-magic cooler ducts that will be bolted to the coolers. I am considering forming it over the end of the duct and using epoxy to affix the screen to the fiberglass duct. Another way to go would be to cut 'slots' in the screen and slip it over the tabs on the cooler that the ducts attach to. But I think not having it float or rub against the cooler directly is prob a better way to go.
Will post some pics and other updates very soon.
I am going to be running a 99 bumper and I have R-magic cooler ducts that will be bolted to the coolers. I am considering forming it over the end of the duct and using epoxy to affix the screen to the fiberglass duct. Another way to go would be to cut 'slots' in the screen and slip it over the tabs on the cooler that the ducts attach to. But I think not having it float or rub against the cooler directly is prob a better way to go.
Will post some pics and other updates very soon.
#224
Senior Member
iTrader: (23)
I'll just start off with this. For whatever reason, I thought I needed to pull the AC/PS bracket in order to get enough clearance to pull the banjo fitting off the front cover. I pulled the PS pump and had the AC comp loose before I even tried to unbolt the banjo. Guess what, it came right out. I have read this and other cooler threads over and over, not sure why I even thought that was necessary. The learning curve is so steep on these cars, like nothing else I have ever owned.
My order came in from BAT. Cost was roughly $190 shipped. 8 ft of line. I had them install two of the fittings on the full 8ft. Then I cut it to length and installed the last two.
The stainless screen. It is pretty stiff and not that easy to work with. You need tin snips. I got them sized right and I have them cut down so they just fit snugly between the duct tabs. With the R-magic ducts bolted on, it all fits together pretty nicely.
Now, the 90 degree fitting coming off the front cover. I am not likely this approach, maybe others have just gone with it. At this angle, the AN line needs to run behind the lower rad hose and over the hardline on the steering rack. I was hoping it was going to fall under the cross brace which is where I was going to run the line from the left cooler to the right. I am considering getting a 45 degree fitting, that would get it heading in the right direction and then I could just use the line to complete the turn.
Front bumper skin mock up. The OEM piece fits well so far. I have no doubt the body shop will be able to get all the gaps just right.
My order came in from BAT. Cost was roughly $190 shipped. 8 ft of line. I had them install two of the fittings on the full 8ft. Then I cut it to length and installed the last two.
The stainless screen. It is pretty stiff and not that easy to work with. You need tin snips. I got them sized right and I have them cut down so they just fit snugly between the duct tabs. With the R-magic ducts bolted on, it all fits together pretty nicely.
Now, the 90 degree fitting coming off the front cover. I am not likely this approach, maybe others have just gone with it. At this angle, the AN line needs to run behind the lower rad hose and over the hardline on the steering rack. I was hoping it was going to fall under the cross brace which is where I was going to run the line from the left cooler to the right. I am considering getting a 45 degree fitting, that would get it heading in the right direction and then I could just use the line to complete the turn.
Front bumper skin mock up. The OEM piece fits well so far. I have no doubt the body shop will be able to get all the gaps just right.
Last edited by NJ-JDM; 05-20-17 at 10:11 PM.
