does anyone have a pic with the bumper cover off?
#1
Senior Member
Thread Starter
Join Date: Dec 2003
Location: denver CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
does anyone have a pic with the bumper cover off?
my shell came without any bumper at all, no cover, no rebar, no brackets.

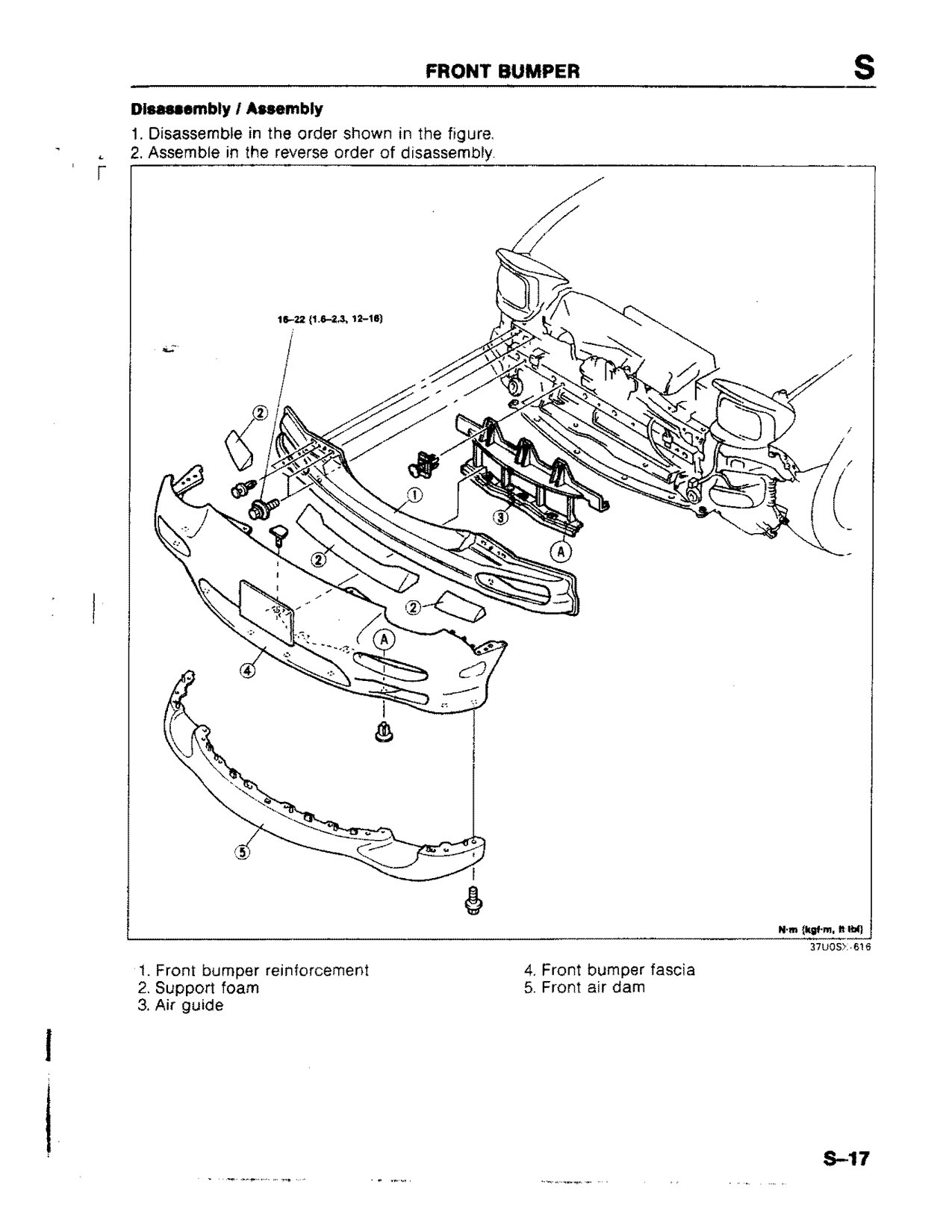

I've been looking forever for a clear pic of what I'm missing under the bumper cover but haven't found a pic that shows what parts I'm missing or how they go together, can someone post one please?
I've been looking forever for a clear pic of what I'm missing under the bumper cover but haven't found a pic that shows what parts I'm missing or how they go together, can someone post one please?
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Dec 2003
Location: denver CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
thanks!
doesn't clear it up, the problem is I've never taken this car apart so I don't know how it goes together or what is missing. What I need is the part that attaches to the holes in the front of the fenders, and the piece that you can see when you open the hood and look down at the hood catch, you can see a little bit of aluminum(?) from the bracket, I don't know if that's one piece or what to call it.
doesn't clear it up, the problem is I've never taken this car apart so I don't know how it goes together or what is missing. What I need is the part that attaches to the holes in the front of the fenders, and the piece that you can see when you open the hood and look down at the hood catch, you can see a little bit of aluminum(?) from the bracket, I don't know if that's one piece or what to call it.
#9
Old School Member
Join Date: Feb 2001
Location: Vancouver, Wa, USA
Posts: 640
Likes: 0
Received 0 Likes
on
0 Posts
thanks!
doesn't clear it up, the problem is I've never taken this car apart so I don't know how it goes together or what is missing. What I need is the part that attaches to the holes in the front of the fenders, and the piece that you can see when you open the hood and look down at the hood catch, you can see a little bit of aluminum(?) from the bracket, I don't know if that's one piece or what to call it.
doesn't clear it up, the problem is I've never taken this car apart so I don't know how it goes together or what is missing. What I need is the part that attaches to the holes in the front of the fenders, and the piece that you can see when you open the hood and look down at the hood catch, you can see a little bit of aluminum(?) from the bracket, I don't know if that's one piece or what to call it.
I have no idea what you are talking about haha.
As far as i remember, the fenders and front clip assembly bolt directly onto the chassis, I dont remember any brackets.
#10
Senior Member
Thread Starter
Join Date: Dec 2003
Location: denver CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
I assume this is a support of some sort that the bumper cover attaches too, but I don't know for sure.
#12
White chicks > *
iTrader: (33)
There is a LONG extended bracket that goes along the entire upper lip of the front bumper.
The only thing thats seen is the aluminum bracket thats actually bolted to the car itself, and thats held by 4 10MM bolts. The rest you have to access through the inner front fenders by removing part of the fender liner.
I know this installation dearly as i did my 99 front bumper conversion only last week.
If you buy a complete bumper, it SHOULD come with the brackets (entire bracket assembly as its useless to seperate, it works (bolts) together to make 1 LONG bracket).
But for the people who did the 99 conversion, like i did, swapped the brackets so most bumpers for sale dont come with it.
So make sure when you shop for a bumper, to ask if it comes with the necessary bracket.
The only thing thats seen is the aluminum bracket thats actually bolted to the car itself, and thats held by 4 10MM bolts. The rest you have to access through the inner front fenders by removing part of the fender liner.
I know this installation dearly as i did my 99 front bumper conversion only last week.
If you buy a complete bumper, it SHOULD come with the brackets (entire bracket assembly as its useless to seperate, it works (bolts) together to make 1 LONG bracket).
But for the people who did the 99 conversion, like i did, swapped the brackets so most bumpers for sale dont come with it.
So make sure when you shop for a bumper, to ask if it comes with the necessary bracket.
#16
Rotary Freak
iTrader: (14)
Go to the mazda parts manuals linked in the stickies. The stuff adds up think three aluminium top pieces, two side brakets, three rubber top strips and number of bolts and rivets. Think its about $200 of stuff.
Ok I found my list. Could probable buy old bumper complete cheaper. Now I have completeold bumper and wanted to keep it mountable.
FD01-50-1D0 PLATE(R),SET-F.
FD01-50-1G1 PLATE(R),SET-F.
FD01-50-1E0 PLATE LT, FRT BMPR
FD01-50-1F1 PLATE(L),SET-F.
FD01-50-1AYB PLATE,SET-F. BU
FD01-50-1AXB PLATE(L),SET-F.
FD01-50-1B0A PLATE(R),SET-F.
FD01-50-1C0A PLATE(L),SET-F.
FD01-50-0KXA RETAINER,FASCIA
FD01-50-0K0A RETAINER,FASCIA
FD01-50-0K1B RETAINER,FASCIA
FD01-50-CR0 SPACER
FD01-50-CS0 SPACER
BF82-50-233 FASTENER
D001-50-222 SCREW
FB01-50-133C NUT
G158-50-803 SIDE PROTECTOR NUT
BR70-50-0Z1 RIVET
B103-68-865 FASTENER
BR70-50-0Z2 BOLT
Ok I found my list. Could probable buy old bumper complete cheaper. Now I have completeold bumper and wanted to keep it mountable.
FD01-50-1D0 PLATE(R),SET-F.
FD01-50-1G1 PLATE(R),SET-F.
FD01-50-1E0 PLATE LT, FRT BMPR
FD01-50-1F1 PLATE(L),SET-F.
FD01-50-1AYB PLATE,SET-F. BU
FD01-50-1AXB PLATE(L),SET-F.
FD01-50-1B0A PLATE(R),SET-F.
FD01-50-1C0A PLATE(L),SET-F.
FD01-50-0KXA RETAINER,FASCIA
FD01-50-0K0A RETAINER,FASCIA
FD01-50-0K1B RETAINER,FASCIA
FD01-50-CR0 SPACER
FD01-50-CS0 SPACER
BF82-50-233 FASTENER
D001-50-222 SCREW
FB01-50-133C NUT
G158-50-803 SIDE PROTECTOR NUT
BR70-50-0Z1 RIVET
B103-68-865 FASTENER
BR70-50-0Z2 BOLT
#17
Banned. I got OWNED!!!
Join Date: Sep 2003
Location: new jersey
Posts: 2,030
Likes: 0
Received 0 Likes
on
0 Posts
Go to the mazda parts manuals linked in the stickies. The stuff adds up think three aluminium top pieces, two side brakets, three rubber top strips and number of bolts and rivets. Think its about $200 of stuff.
Ok I found my list. Could probable buy old bumper complete cheaper. Now I have completeold bumper and wanted to keep it mountable.
FD01-50-1D0 PLATE(R),SET-F.
FD01-50-1G1 PLATE(R),SET-F.
FD01-50-1E0 PLATE LT, FRT BMPR
FD01-50-1F1 PLATE(L),SET-F.
FD01-50-1AYB PLATE,SET-F. BU
FD01-50-1AXB PLATE(L),SET-F.
FD01-50-1B0A PLATE(R),SET-F.
FD01-50-1C0A PLATE(L),SET-F.
FD01-50-0KXA RETAINER,FASCIA
FD01-50-0K0A RETAINER,FASCIA
FD01-50-0K1B RETAINER,FASCIA
FD01-50-CR0 SPACER
FD01-50-CS0 SPACER
BF82-50-233 FASTENER
D001-50-222 SCREW
FB01-50-133C NUT
G158-50-803 SIDE PROTECTOR NUT
BR70-50-0Z1 RIVET
B103-68-865 FASTENER
BR70-50-0Z2 BOLT
Ok I found my list. Could probable buy old bumper complete cheaper. Now I have completeold bumper and wanted to keep it mountable.
FD01-50-1D0 PLATE(R),SET-F.
FD01-50-1G1 PLATE(R),SET-F.
FD01-50-1E0 PLATE LT, FRT BMPR
FD01-50-1F1 PLATE(L),SET-F.
FD01-50-1AYB PLATE,SET-F. BU
FD01-50-1AXB PLATE(L),SET-F.
FD01-50-1B0A PLATE(R),SET-F.
FD01-50-1C0A PLATE(L),SET-F.
FD01-50-0KXA RETAINER,FASCIA
FD01-50-0K0A RETAINER,FASCIA
FD01-50-0K1B RETAINER,FASCIA
FD01-50-CR0 SPACER
FD01-50-CS0 SPACER
BF82-50-233 FASTENER
D001-50-222 SCREW
FB01-50-133C NUT
G158-50-803 SIDE PROTECTOR NUT
BR70-50-0Z1 RIVET
B103-68-865 FASTENER
BR70-50-0Z2 BOLT
#18
White chicks > *
iTrader: (33)
Go to the mazda parts manuals linked in the stickies. The stuff adds up think three aluminium top pieces, two side brakets, three rubber top strips and number of bolts and rivets. Think its about $200 of stuff.
Ok I found my list. Could probable buy old bumper complete cheaper. Now I have completeold bumper and wanted to keep it mountable.
FD01-50-1D0 PLATE(R),SET-F.
FD01-50-1G1 PLATE(R),SET-F.
FD01-50-1E0 PLATE LT, FRT BMPR
FD01-50-1F1 PLATE(L),SET-F.
FD01-50-1AYB PLATE,SET-F. BU
FD01-50-1AXB PLATE(L),SET-F.
FD01-50-1B0A PLATE(R),SET-F.
FD01-50-1C0A PLATE(L),SET-F.
FD01-50-0KXA RETAINER,FASCIA
FD01-50-0K0A RETAINER,FASCIA
FD01-50-0K1B RETAINER,FASCIA
FD01-50-CR0 SPACER
FD01-50-CS0 SPACER
BF82-50-233 FASTENER
D001-50-222 SCREW
FB01-50-133C NUT
G158-50-803 SIDE PROTECTOR NUT
BR70-50-0Z1 RIVET
B103-68-865 FASTENER
BR70-50-0Z2 BOLT
Ok I found my list. Could probable buy old bumper complete cheaper. Now I have completeold bumper and wanted to keep it mountable.
FD01-50-1D0 PLATE(R),SET-F.
FD01-50-1G1 PLATE(R),SET-F.
FD01-50-1E0 PLATE LT, FRT BMPR
FD01-50-1F1 PLATE(L),SET-F.
FD01-50-1AYB PLATE,SET-F. BU
FD01-50-1AXB PLATE(L),SET-F.
FD01-50-1B0A PLATE(R),SET-F.
FD01-50-1C0A PLATE(L),SET-F.
FD01-50-0KXA RETAINER,FASCIA
FD01-50-0K0A RETAINER,FASCIA
FD01-50-0K1B RETAINER,FASCIA
FD01-50-CR0 SPACER
FD01-50-CS0 SPACER
BF82-50-233 FASTENER
D001-50-222 SCREW
FB01-50-133C NUT
G158-50-803 SIDE PROTECTOR NUT
BR70-50-0Z1 RIVET
B103-68-865 FASTENER
BR70-50-0Z2 BOLT
Yup, buying a used 93 bumper and just swapping brackets CAN be the cheaper route. Except if the seller were to ship it, now you're paying for shipping costs as well and a bumper is quite alot.
Try to find someone local that has a used bumper to swap brackets.
