Damaged on Rotor~is it no good?

Thread Tools

Search this Thread

Old Nov 20, 2020 | 01:57 PM
  #1
cr-rex's Avatar
Thread Starter
half ass 2 or whole ass 1
Tenured Member 10 Years
iTrader: (114)

Joined: Nov 2011
Posts: 3,425
Likes: 489
From: okinawa to tampa
Damaged on Rotor~is it no good?

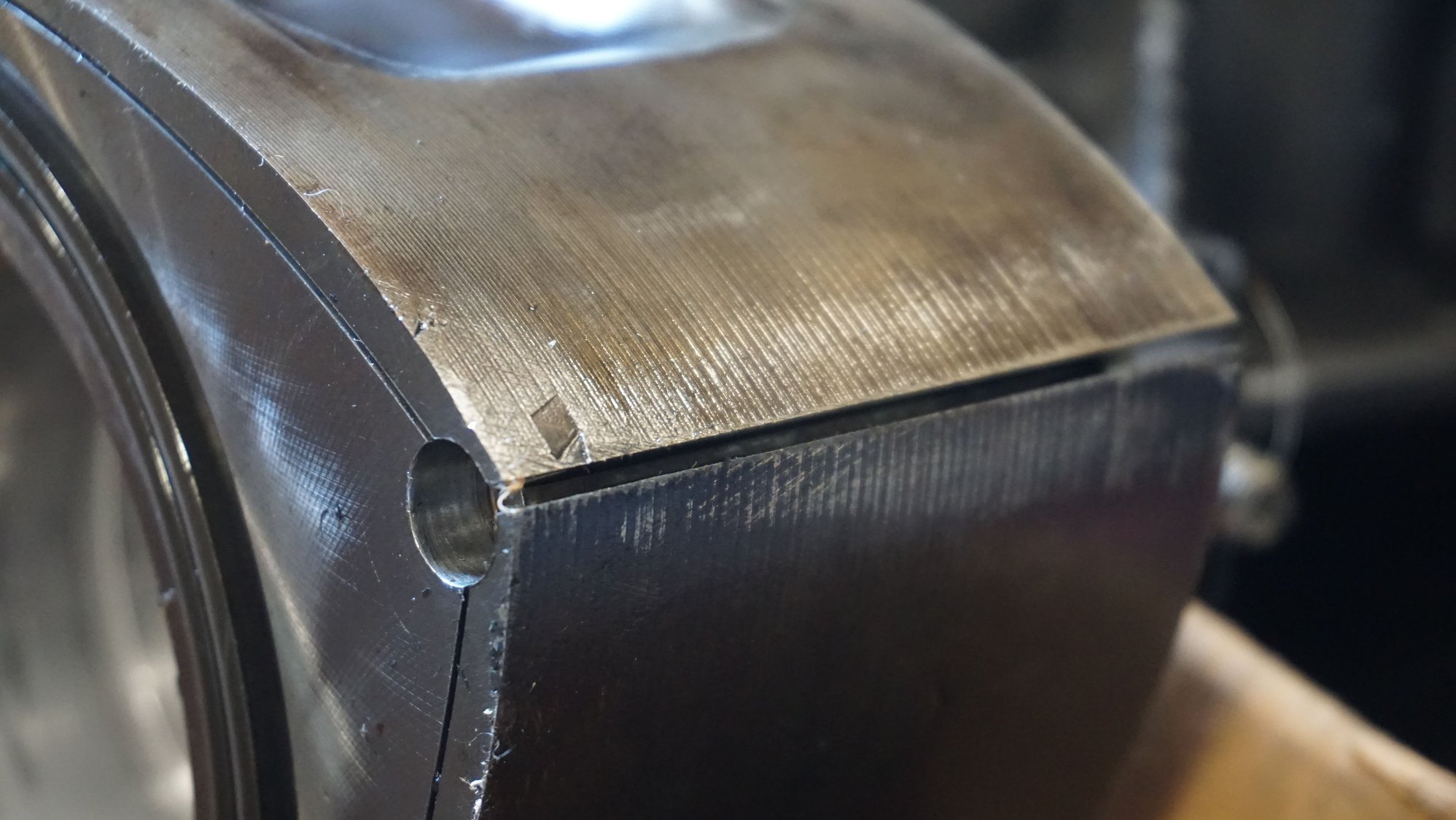

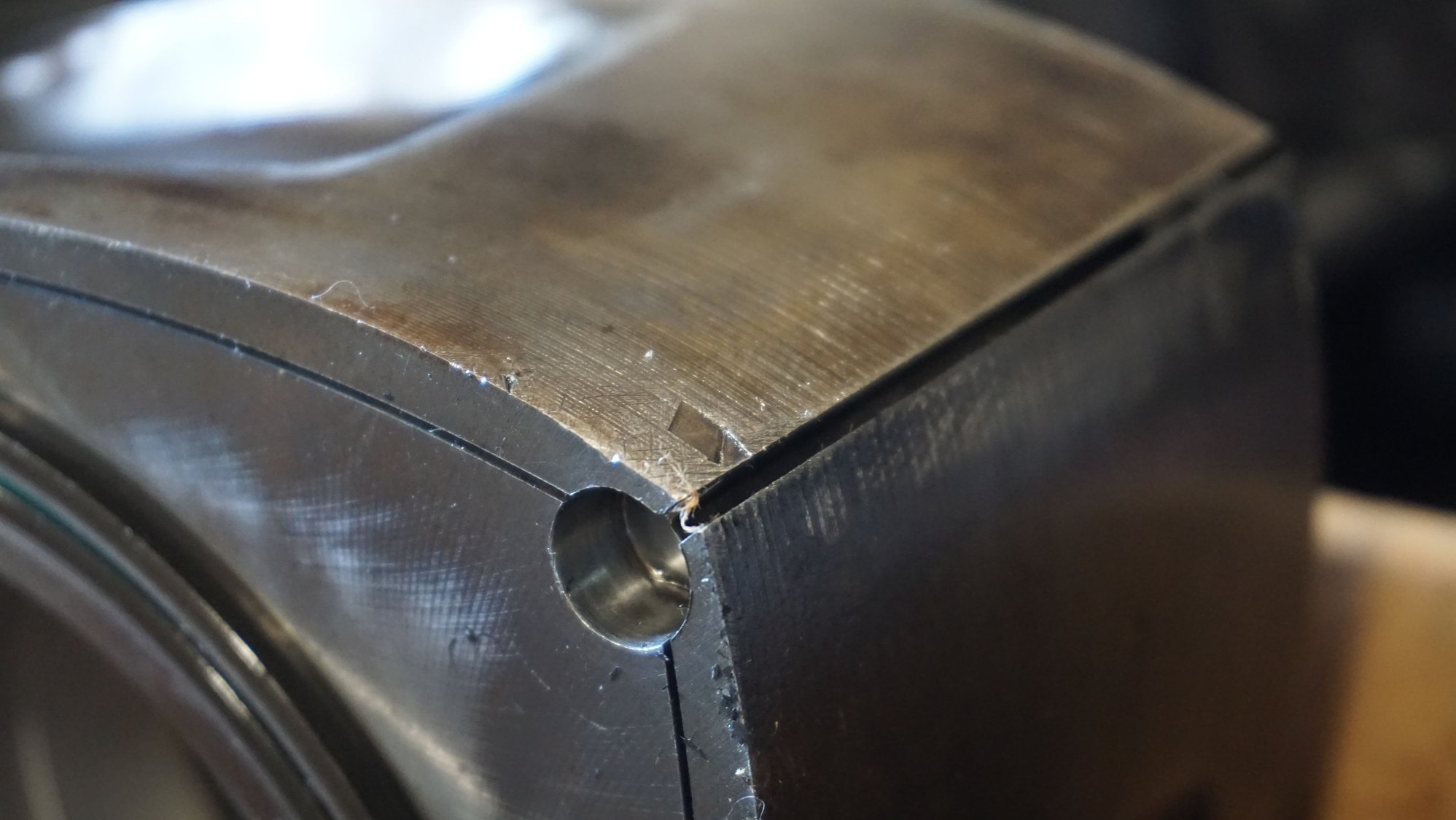

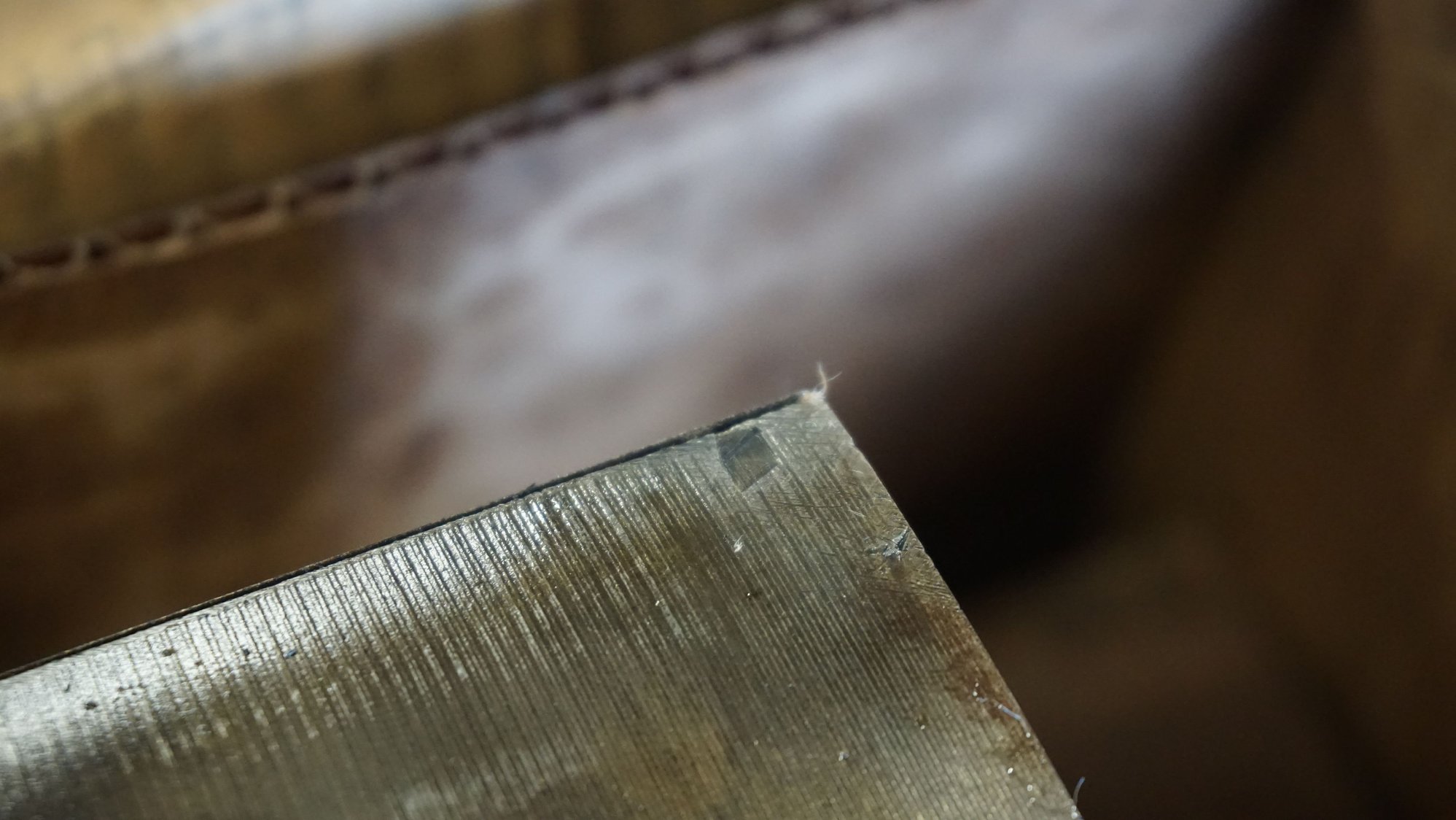

what do you guys think? if it was anywhere else i wouldnt worry about it but with it being so close to the apex seal groove, it has me wondering if its usable. the pictures are accurate of how it looks in person.




Reply
Old Nov 20, 2020 | 03:50 PM
  #2
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,835
Likes: 3,233
From: https://www2.mazda.com/en/100th/
if all the grooves are ok, i would clean that up and use it. i'd measure all the other grooves first, if that is the only thing wrong, you're ok. if there are other things wrong, then another rotor looks good
Reply
Old Nov 23, 2020 | 09:14 AM
  #3
DaleClark's Avatar
RX-7 Bad Ass
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (56)

Joined: Jan 2002
Posts: 15,622
Likes: 2,725
From: Pensacola, FL
It's not perfect but it's useable. I would run a file or something over it to make sure there's no metal that's sticking up and that there's no sharp hot spots.

I would also make sure the apex seal groove didn't get bent out of shape, the new seal should easily move up and down and not bind.

Dale
Reply
Old Nov 23, 2020 | 05:45 PM
  #4
IRPerformance's Avatar
Sponsor
iTrader: (41)

Joined: Apr 2003
Posts: 11,347
Likes: 321
From: NJ
Get some small files and see if you can clearance it. The damage on the face won't affect it. Don't forget to check the side seal and corner seal clearances.
Reply
Old Nov 23, 2020 | 06:49 PM
  #5
Howard Coleman's Avatar
Racing Rotary Since 1983
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (7)

Joined: Oct 2001
Posts: 6,279
Likes: 728
From: Florence, Alabama
totally agree w all comments above. work it a bit and you are fine
Reply
Old Nov 23, 2020 | 07:50 PM
  #6
cr-rex's Avatar
Thread Starter
half ass 2 or whole ass 1
Tenured Member 10 Years
iTrader: (114)

Joined: Nov 2011
Posts: 3,425
Likes: 489
From: okinawa to tampa
thank you guys, i appreciate it very much. had it of been anywhere else on the face it wouldnt matter to me but with it being so close to the groove, i just had to ask and be sure.
