streetdreamzny

iTrader: (6)

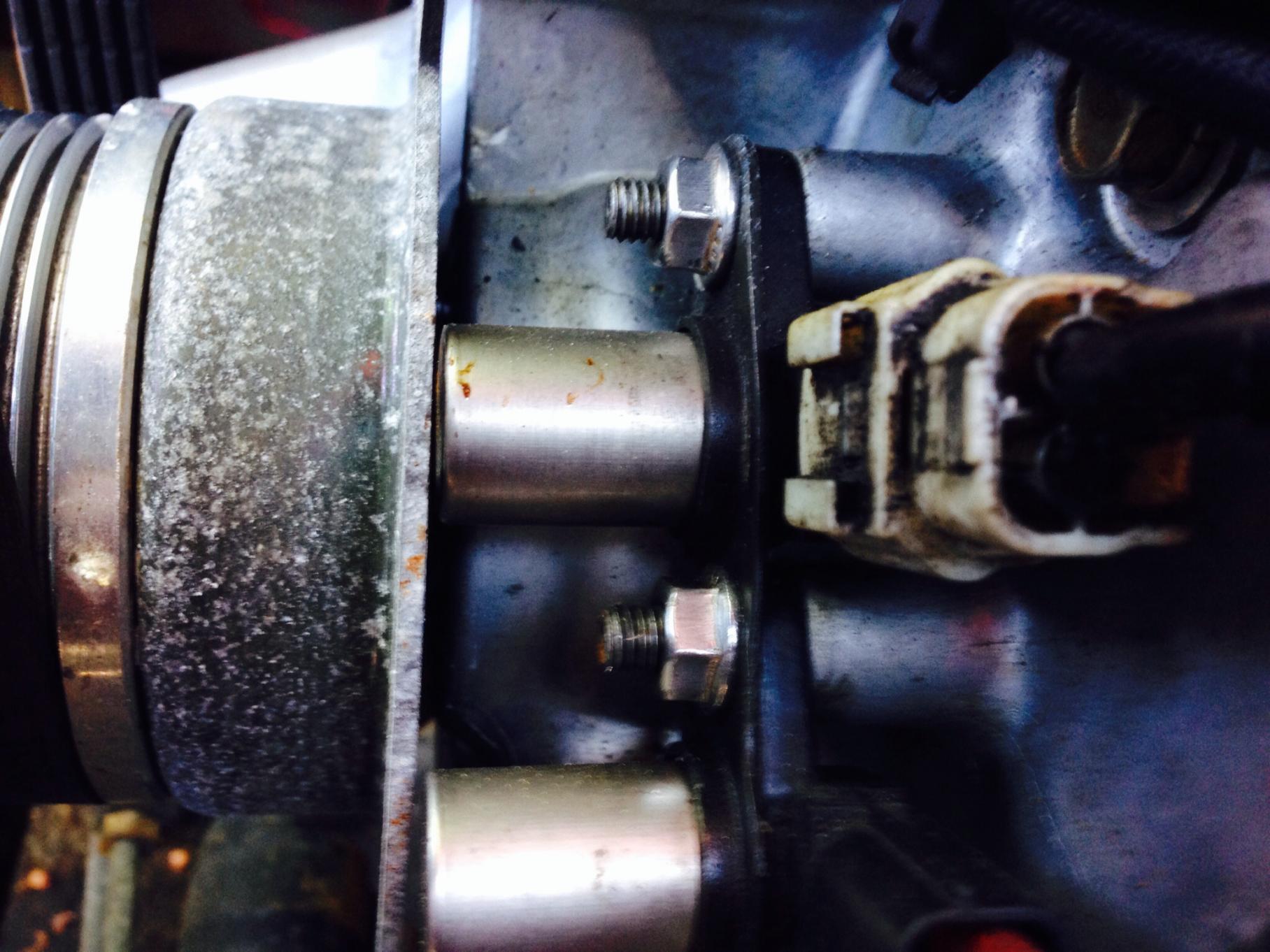

I think my crank angle sensor is way too close to the timing plate. I read the factory service manual and it states clearance should be 1.0 to 2.0mm and I can't even get .900 feeler gauge in between the sensor and the plate. My car has been flooding and I already ruled out the fuel system. I think the Pfc is dumping too much fuel because timing is off. How could I adjust the sensors to get more clearance? Thanks

dguy

iTrader: (8)

There isn't any easy way to 'adjust' that clearance. If the pulley stack is put together properly it should be right.

tt7hvn

iTrader: (5)

they're supposed to be close like that, as long as they aren't touching you should be ok. the top one is closer than the other.

streetdreamzny

iTrader: (6)

Thanks for the help guess I was wrong.

IRPerformance

iTrader: (41)

They are supposed to be close. If your PFC is dumping fuel all the sudden you have another issue in the setup or the temperature correction map is off.
