Can someone exlain CORNER SEALS and SIDE SEALS?
Hey people. Im still learning about rotaries and such. I've read all the sites regarding how rotaries work, but no one explains what side and corner seals are? Can someone explain it to me. I'm completely baffled.
10-01-02, 09:42 PM
#2
1JZ powered
Join Date: Jul 2001
Location: Where there's only two seasons, hot and wet! I love Okinawa
Posts: 4,423
Likes: 0
Received 0 Likes
on
0 Posts
I think it would be easie to show you than to explain it...I may have to take a picture first.
BUT...apex seals are at the "tips" of the rotors. Total of 6 in each engine. Corner seals are at the corners of each "tip" Since there's two sides to each apex seal, you'll have 2 corner seals. Inbetween each corner seal on the sides of the rotors(the part that contacts the front/intermediate/rear housings) is the side seals.

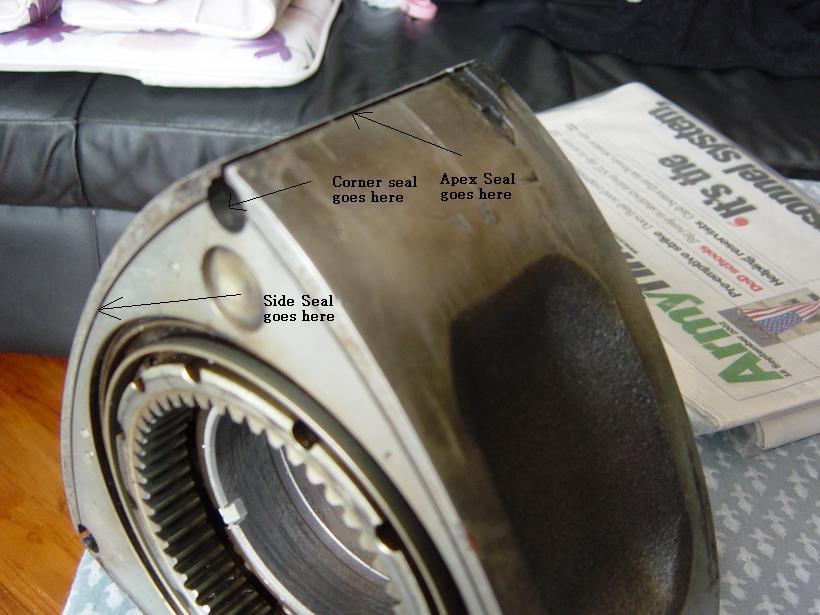

...see what I mean...let me get a picture
BUT...apex seals are at the "tips" of the rotors. Total of 6 in each engine. Corner seals are at the corners of each "tip" Since there's two sides to each apex seal, you'll have 2 corner seals. Inbetween each corner seal on the sides of the rotors(the part that contacts the front/intermediate/rear housings) is the side seals.
...see what I mean...let me get a picture
