blue mazdaspeed gauge cluster installed PICS!!!
06-14-07, 01:05 AM
#1
Full Member
Thread Starter
Join Date: Jul 2006
Location: Seattle WA
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
blue mazdaspeed gauge cluster installed PICS!!!

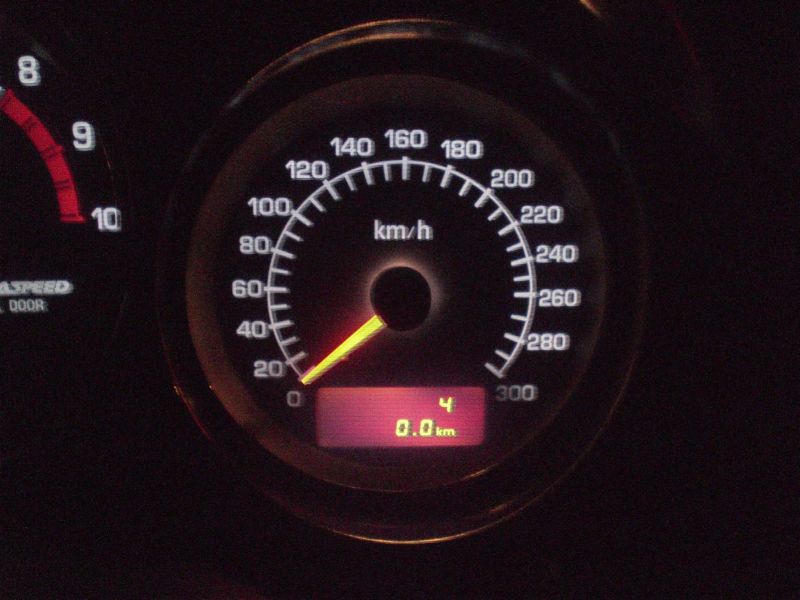

Here it is, kicked back some brewsky and got it done tonight, EXTRA early, so i will finish my write up tomorrow evening and it'll be up absolutely by 8 pm. until then, here's some installed shots and night time backlighting shots for those of you that have asked!!! by the way, [ictures do it no justice, underexposed in the night, it looks killer in person!
06-14-07, 02:20 AM
#4
Full Member
Thread Starter
Join Date: Jul 2006
Location: Seattle WA
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts

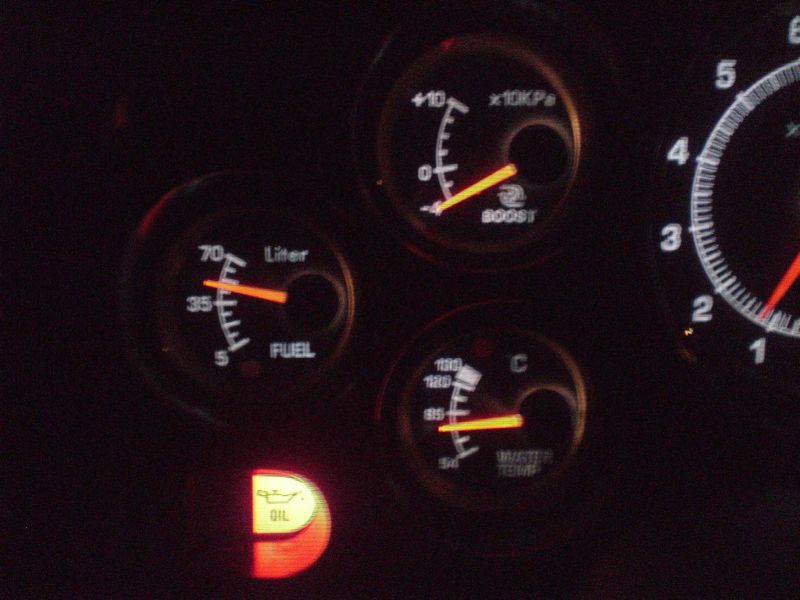

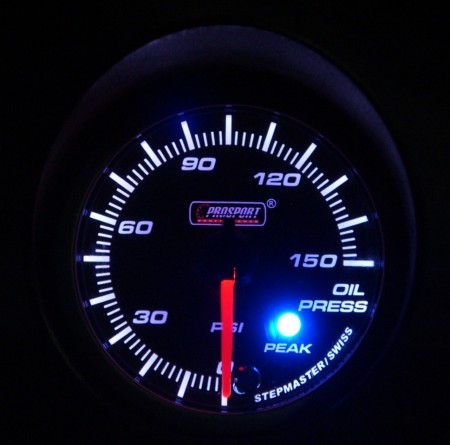

by the way, does anyone know why my oil warning lamp is always on now, i plug my stock cluster in and it reads normal oil psi, if no one has an answer i think ill find out what the nominal operating range for the oil psi is, find out the corresponding resistance and add a resistor of that value in the circuit and run an aftermarket oil psi gauge, that way i wont have to hear that damn buzzer and have that light always on, and still get my oils gauge.
06-14-07, 10:22 AM
#7
Big Daddy!!!
Join Date: Jul 2002
Location: Edmonton, Alberta, Canada
Posts: 1,194
Likes: 0
Received 0 Likes
on
0 Posts
by the way, does anyone know why my oil warning lamp is always on now, i plug my stock cluster in and it reads normal oil psi, if no one has an answer i think ill find out what the nominal operating range for the oil psi is, find out the corresponding resistance and add a resistor of that value in the circuit and run an aftermarket oil psi gauge, that way i wont have to hear that damn buzzer and have that light always on, and still get my oils gauge.
R.K.
Trending Topics
06-14-07, 11:04 AM
#8
Looks good...but I still don't think I'd ever get it...
2 things;
1. I like the factory red backlight more.
2. I would never like reading KM's...If they made this in MPH I would consider it. (Same reason I hate bar reading boost gauges as well as water temps in C.) I'm lazy and don't like converting in my head....I'm American danget!
2 things;
1. I like the factory red backlight more.
2. I would never like reading KM's...If they made this in MPH I would consider it. (Same reason I hate bar reading boost gauges as well as water temps in C.) I'm lazy and don't like converting in my head....I'm American danget!
06-14-07, 11:53 AM
#11
Eats, Sleeps, Dreams Rotary
iTrader: (3)
It is unique. Without a doubt.
I personally wouldn't get it because I don't have a blue car.
I think this gauge cluster will go best with a Montego blue or even a Blue Mica car.
km/h doesn't bother me because I'm in Canada. Everyone should be in metric!
I don't like the font they chose nor the needles they used.
I still prefer the stock gauge cluster.
I wouldn't mind getting the 99spec gauge cluster. Have the needle start at the 6 o'clock position. Only thing wrong with that cluster is the speedo. Only goes as high as 180km/h.
I personally wouldn't get it because I don't have a blue car.
I think this gauge cluster will go best with a Montego blue or even a Blue Mica car.
km/h doesn't bother me because I'm in Canada. Everyone should be in metric!
I don't like the font they chose nor the needles they used.
I still prefer the stock gauge cluster.
I wouldn't mind getting the 99spec gauge cluster. Have the needle start at the 6 o'clock position. Only thing wrong with that cluster is the speedo. Only goes as high as 180km/h.
06-14-07, 04:33 PM
#14
06-14-07, 06:32 PM
#17
Rookie Rotarhead
Join Date: Feb 2006
Location: Edmonton, Alberta
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Looks awesome, I'm really liking the blue and the metric system
. I like having the clean look of the boost gage in the cluster, just like the 2nd gen TII's, but I don't suppose it's much good if you're running more than 10psi. But now with the temp gage gone I guess you'd still have to go with an aftermarket one outside the cluster somewhere. Anyways looks cool and thanks for the night shots (get some blue led's behind there)
06-15-07, 12:25 AM
#19
Full Member
Thread Starter
Join Date: Jul 2006
Location: Seattle WA
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Im thinking of replacing the lights in the back of the cluster with super white LED's or maybe a color, someone said something about blue LED's i might do that maybe ill get both and see how they look, since the stock lighting is still pretty dim even with the rheostat turned all the way up.
