blown apex seal pictures
#1
cursed 7
Thread Starter
Join Date: Feb 2004
Location: Bangladesh
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
blown apex seal pictures
In my last thread I mentioned that I bought my 7 with a blown motor(1.7 years back). Right after I bought it, with absolutely no knowledge of the rotary, I put in ATF then started the blown engine plenty of times. Later when I came across this site I read up and realized it was BLOWN (compression test). Since their were no builders in Bangladesh, I got my engine from a company called Zimax in Japan. Almost everything new. The new engine is running great till now.

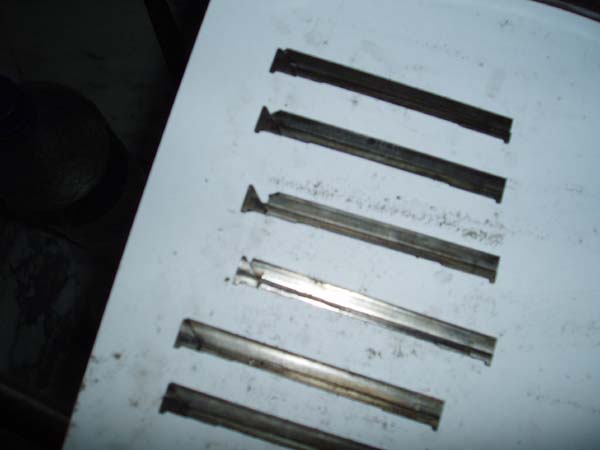

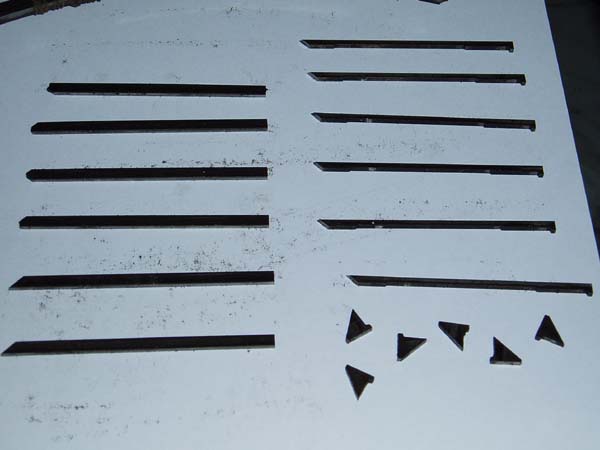

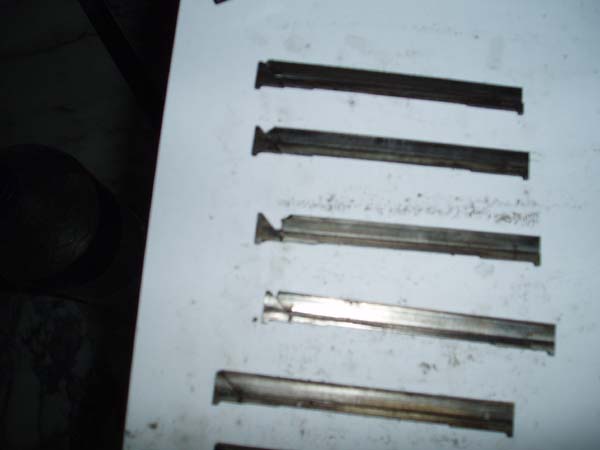

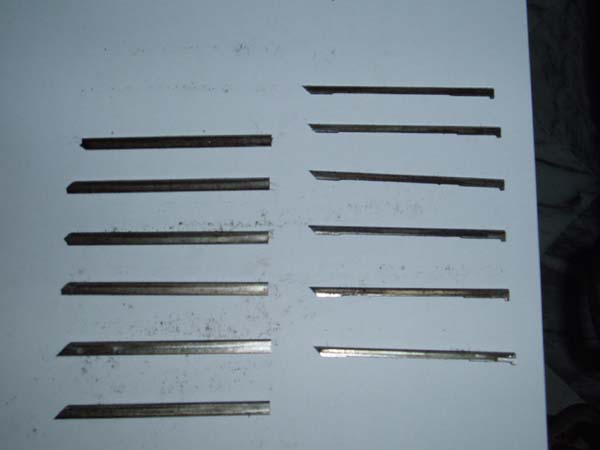

It was only a couple of months back that I opened up that blown motor to see the inside. I got around to take some pictures yesterday. (I searched however couldn't find a picture of the 3 piece seals in this site, thought I'd share)This is a 1998 ORIGINAL motor. The apex seals as far as i can tell are 3 piece 2mm. This car before blowing had run on 90RON for almost 1.5 years with stock boost (the owner however had a very heavy foot). On his way back from a 600km drive he blew the engine. Boosting all the time. (the owners manual clearly states not to boost for more than half hour in one go). Please correct me if I'm wrong.
How bad do you guys think the detonation was?? Both the housing were scratched. I found all the broken pieces inside the housing. None went through the turbos. Only GOD knows how.
I'm attaching some pictures.
It was only a couple of months back that I opened up that blown motor to see the inside. I got around to take some pictures yesterday. (I searched however couldn't find a picture of the 3 piece seals in this site, thought I'd share)This is a 1998 ORIGINAL motor. The apex seals as far as i can tell are 3 piece 2mm. This car before blowing had run on 90RON for almost 1.5 years with stock boost (the owner however had a very heavy foot). On his way back from a 600km drive he blew the engine. Boosting all the time. (the owners manual clearly states not to boost for more than half hour in one go). Please correct me if I'm wrong.
How bad do you guys think the detonation was?? Both the housing were scratched. I found all the broken pieces inside the housing. None went through the turbos. Only GOD knows how.
I'm attaching some pictures.
Last edited by tahmid; 07-05-05 at 12:00 AM.
#5
Original Gangster/Rotary!
iTrader: (213)
I'd say the detonation wasn't that severe. The seals chipped at their most fragile point. I've done much worse damage, you'll have to do better than that to keep up with me
#7
cursed 7
Thread Starter
Join Date: Feb 2004
Location: Bangladesh
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RotaryResurrection
I've seen a LOT worse...that's a detonation break for sure, but higher mileage engines (75k+) do a lot more damage when they let go, because the entire seal breaks and flies around.
RR since after the engine was blown, i started the car many times with ATF and at the same time revved it to 4000k (Yea I know stupid me). Is it possible for more apex seals to break or would doing that just scar my housing. (BTW both the housings were scratched). My english is bad. What I mean is say one or two apex seals broke, so with those broken ones inside the engine, then when i started the engine many times, is it possible that the other apex seals broke then, or would the broken pieces only scar the housing??
Trending Topics
#8
cursed 7
Thread Starter
Join Date: Feb 2004
Location: Bangladesh
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GoodfellaFD3S
I'd say the detonation wasn't that severe. The seals chipped at their most fragile point. I've done much worse damage, you'll have to do better than that to keep up with me
On a more serious note, what are the reasons for these kind of detonations?
#9
cursed 7
Thread Starter
Join Date: Feb 2004
Location: Bangladesh
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dubulup
whats the matter now?
Also If I buy a rebuild kit, two housings and rotors I am planning on rebuilding that engine. I know its a long way, I'll buy parts in phases. Give it a try since there is no one in Bangladesh who can build a rotary. Then I'll need all the help from you guys.
Imagine yourselves in my position (no engine builder, no parts, no oil filter, no spark plugs, NO NOTHING).That'll justify all my dumb questions. Even then I love my car and I'll keep it forever.
#10
Rotary Freak
Join Date: Dec 2002
Location: Slovenia, Europe
Posts: 2,522
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dubulup
whats the matter now?
#11
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by tahmid
RR since after the engine was blown, i started the car many times with ATF and at the same time revved it to 4000k (Yea I know stupid me). Is it possible for more apex seals to break or would doing that just scar my housing. (BTW both the housings were scratched). My english is bad. What I mean is say one or two apex seals broke, so with those broken ones inside the engine, then when i started the engine many times, is it possible that the other apex seals broke then, or would the broken pieces only scar the housing??
On one of my blown engines it was very subtle (I have blown a bunch so know the symptoms very well, lol) and I actually boosted it at one point all through 2nd gear to redline, and after determining that it was definitely blown my bud steve drove the car 150 miles to his place. After disassembling the engine I found one barely chipped seal, and the rest of the motor was fine. I dodged a bullet that time .
#12
cursed 7
Thread Starter
Join Date: Feb 2004
Location: Bangladesh
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by cruiser
I think he didnt express himself correctly. His current engine is fine as far as I understand it. For now
#13
cursed 7
Thread Starter
Join Date: Feb 2004
Location: Bangladesh
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GoodfellaFD3S
I don't think you did any additional damage by starting the motor.
On one of my blown engines it was very subtle (I have blown a bunch so know the symptoms very well, lol) and I actually boosted it at one point all through 2nd gear to redline, and after determining that it was definitely blown my bud steve drove the car 150 miles to his place. After disassembling the engine I found one barely chipped seal, and the rest of the motor was fine. I dodged a bullet that time .
On one of my blown engines it was very subtle (I have blown a bunch so know the symptoms very well, lol) and I actually boosted it at one point all through 2nd gear to redline, and after determining that it was definitely blown my bud steve drove the car 150 miles to his place. After disassembling the engine I found one barely chipped seal, and the rest of the motor was fine. I dodged a bullet that time .

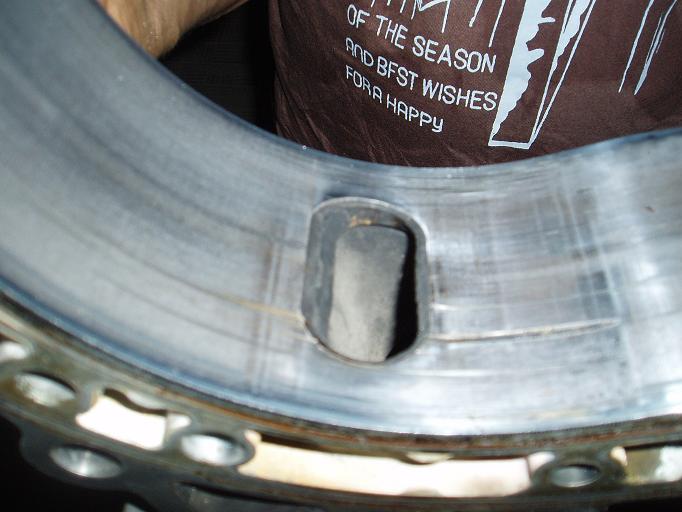

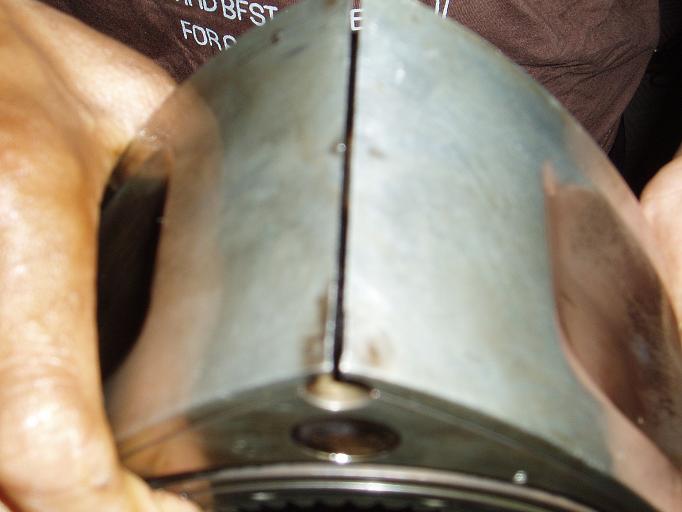

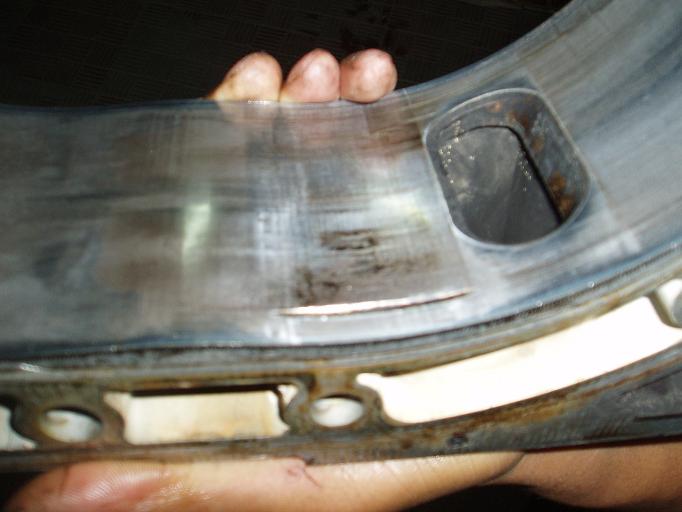

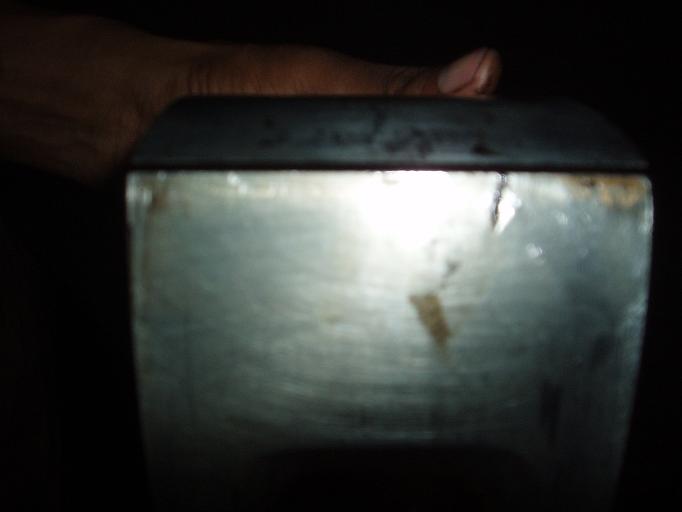

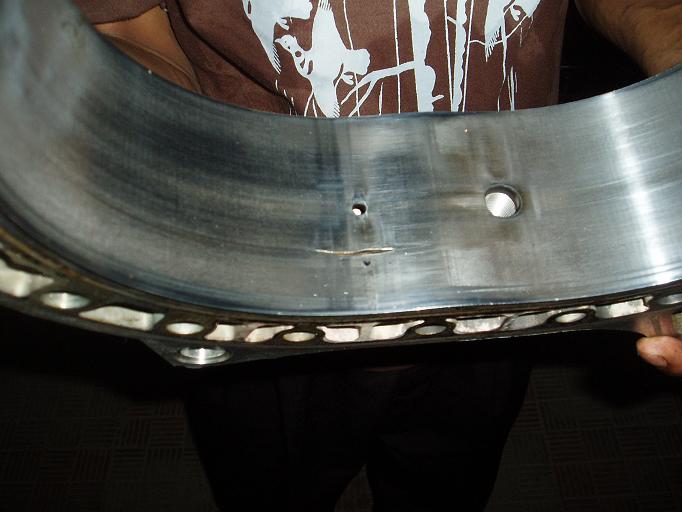

Some pictures of the housing and rotors.
