Blitz FMIC bracket question
#1
RX-7 Bad Ass
Thread Starter
iTrader: (55)
Blitz FMIC bracket question
Hey guys -
Just got a Blitz front mount and have been going over the installation instructions and the pile o' brackets. Mine is used and missing some brackets. I've figured out where most of the brackets from the installation go except for one.
First off, for posterity, here's the link to the Japanese install manual -
http://www.blitz.co.jp/support/manua...LMIC_12436.pdf

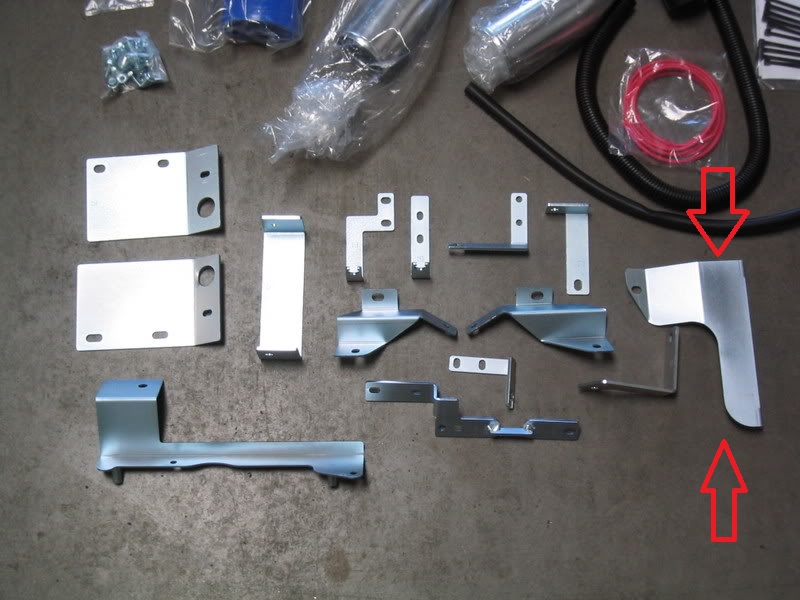

Attached is a pic of all the brackets from another install thread with the bracket in question pointed at with an arrow. It's bracket 118, that should be stamped on it and that's how it's referred to in the manual.
It looks like it goes on top of the radiator for some reason, but not sure where or why.
Also, if anyone has any spare brackets from a Blitz install (like the AC or battery brackets that you didn't use) drop me a PM .
Thanks!
Dale
Just got a Blitz front mount and have been going over the installation instructions and the pile o' brackets. Mine is used and missing some brackets. I've figured out where most of the brackets from the installation go except for one.
First off, for posterity, here's the link to the Japanese install manual -
http://www.blitz.co.jp/support/manua...LMIC_12436.pdf
Attached is a pic of all the brackets from another install thread with the bracket in question pointed at with an arrow. It's bracket 118, that should be stamped on it and that's how it's referred to in the manual.
It looks like it goes on top of the radiator for some reason, but not sure where or why.
Also, if anyone has any spare brackets from a Blitz install (like the AC or battery brackets that you didn't use) drop me a PM .
Thanks!
Dale
#2
Rotary Enthusiast
iTrader: (28)
Join Date: Aug 2008
Location: Miami, FL
Posts: 1,149
Likes: 0
Received 0 Likes
on
0 Posts
It holds the the top of the IC and radiator together. It goes on the passenger side. The straight section goes attached to the radiator fans, the round part goes bolted to the top of the IC.
Here you go:
Here you go:
#3
RX-7 Bad Ass
Thread Starter
iTrader: (55)
THANK YOU! That is EXACTLY what I needed! I really appreciate you getting pictures of that for me!
Dale
Dale
#5
We have installed a bunch of the Blitz FMICs over the years if you need more pics here are a few customer galleries that had the install documented. Even had it on my own car for years.
http://www.banzai-racing.com/watkins_smp.htm
http://www.banzai-racing.com/guilbert_installation.htm
http://www.banzai-racing.com/2008_cu...stallation.htm
http://www.banzai-racing.com/watkins_smp.htm
http://www.banzai-racing.com/guilbert_installation.htm
http://www.banzai-racing.com/2008_cu...stallation.htm
#6
RX-7 Bad Ass
Thread Starter
iTrader: (55)
Thanks for the links, Chris! That's a big help!
Dale
Dale
