neit_jnf

iTrader: (17)

so are we gonna sticky this or what?

if i have a FC thermoswitch and a PFC, are the fan temps in the pfc settings all screwed?

afgmoto1978

iTrader: (6)

I'm in the process of doing a full restoration and I am installing a complete aftermarket fan, fan control system. For those in the know, look over my wiring diagram based off of the stock wiring diagram and see if there is anything I'm missing. FYI, the A/C system has been removed.

My Custom Spal System Setup:

Fan Controller - FAN-PWM - Description: Automatic Programmable Fan Controller

This water resistant controller is programmable, and will read almost all OEM and Aftermarket sensors on the market.

-Programmable to activate at any temperature
-Factory programmed to 160° Low, 200° High
-Variable speed for reduced fan noise
-Uses OEM or optional SPAL Temp Sensor
-Waterproof extruded aluminum construction
-LED indicators for High, Low, and A/C

Secondary Fan Relay Kit - FRH

http://www.spalusa.com/fans/automate...85FH-195FH.pdf

Thermo Switch - FAN-PWM-TS
Description: Temperature Switch for FAN-PWM

-Temperature sensor for use with the SPAL FAN-PWM
-3/8-inch NPT thread
-Waterproof connector


Primary Fan - Pull Fan - 14" Straight Blade - High Performance Fan 1720 CFM - Part Number: 30102041

Previous Part Number(s): 30100248 (VA08-AP6-23MA)
Description: VA08 - AP70/LL - 23MA

http://www.spalusa.com/fans/automate.../2041-2055.pdf


Secondary Fan - Push Fan - 12" Straight Blade - Medium Profile Fan 1230 CFM - 12" Straight - Part Number: 30101505

Description: VA10 - AP50/C - 25S

http://www.spalusa.com/fans/automate.../1504-1505.pdf


Secondary Fan - Oil Cooler - PULL 5.2" Paddle Blade -Motorcycle/ATV Fan 313 CFM- Part Number: 30103011

Description: VA31 - A101 - 46A

http://www.spalusa.com/fans/automate.../3013-3011.pdf

Gadd

Nice.

If your using the OEM thermostat, you need to turn up the "low" temp too over 180 or the fans will come on at 200 and never shut off.

Paul

Rx7_Nut13B

iTrader: (1)

BEST MOD EVER

Electric Water Pump

Hitokiri_Gensai

iTrader: (2)

so i may get a flame for this or something BUT i have some issues with my coolant


Yesterday i was on a HUGE outing down to the Cape with a bunch of RX guys and i noticed that on the highway at constant speeds, between 65 and 80 my car was fine, HOWEVER, when i slow down to say 35 to 50 mph or if i come to a stop at a light, my coolant light will sometimes come on and my engine temps will jump up. After maybe 1 - 2 minutes, the light will go out and the temps will drop back into the normal operating range.

It should be noted that it doesnt happen all the time, just once in a while with no real pattern to it. I THINK its air pockets in the coolant system but after "burping" the system maybe 10 times it still happens.

So im at a loss for what it might be and im still trying to figure it all out. Does anyone have any ideas or thoughts on this?

recon fd

bravo!!! Thanks for the info. This will be very helpful to all in the future!

afgmoto1978

iTrader: (6)

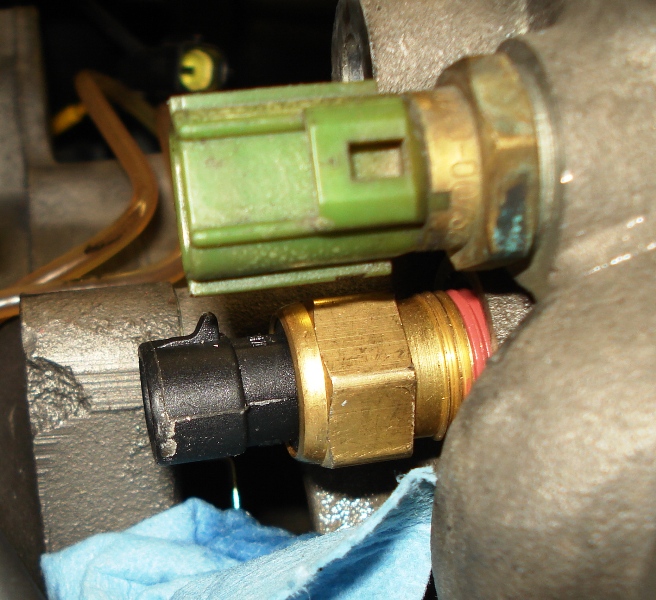

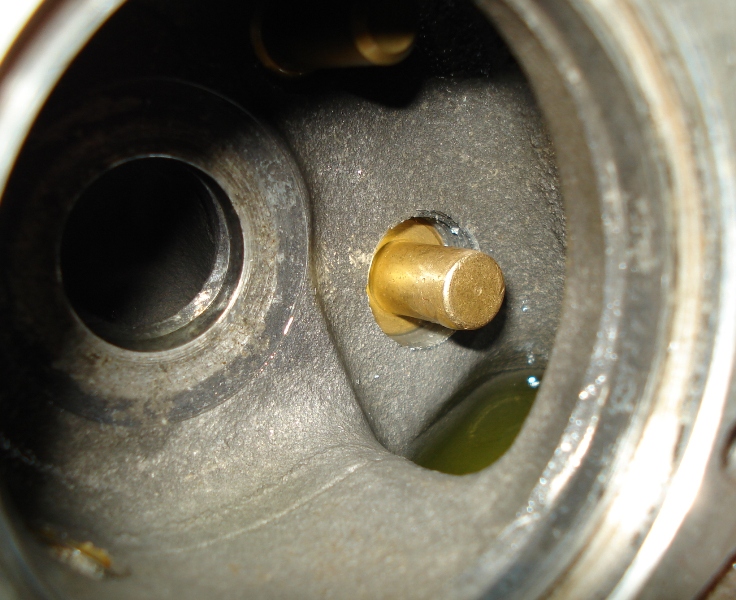

Update to the wiring diagram I posted earlier. DO NOT connect the electrical load wire to the A/C fan switch, 0-1v vs. 12v the A/C switch would provide. The Spal Thermo sensor will require you to tap the thermo switch port hole if you place it in that location.

scotty305

iTrader: (2)

Rx7_Nut13B, that looks very nice. Which electric water pump is that, and how is everything working for you?

-s-

Rx7_Nut13B

iTrader: (1)

Everything is GREAT, love running the lower temps all the time, you cant even tell i have a FMIC because the temps are rock steady

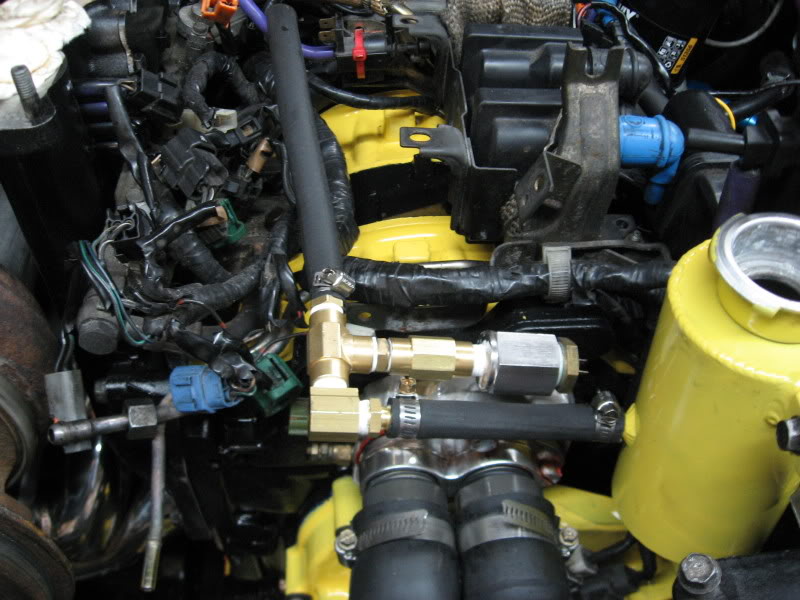

I am running no T-stat and using the Power FC to control the fans, Fans come on at 185F but they really only run after setting idling for a few. They turn on for about 30-45secs and then off and the temp is back in the 180F.

I dont know if i said it, but i am running EVANS Coolant also NPG-R @ 7psi
LINK to NPG-R

The water pump is a Stwarts it is about $350 dollars http://www.stewartcomponents.net/Mer...Code=ElectPump

scotty305

iTrader: (2)

Looks like some of the photos got deleted (I had a lot of photos attached in a thread in the "Test Area 51" section). Here they are again. If any of the mods would like to edit them back into the first post, I'd appreciate it a lot.

This one belongs in section 1: Introduction



2: Measurements



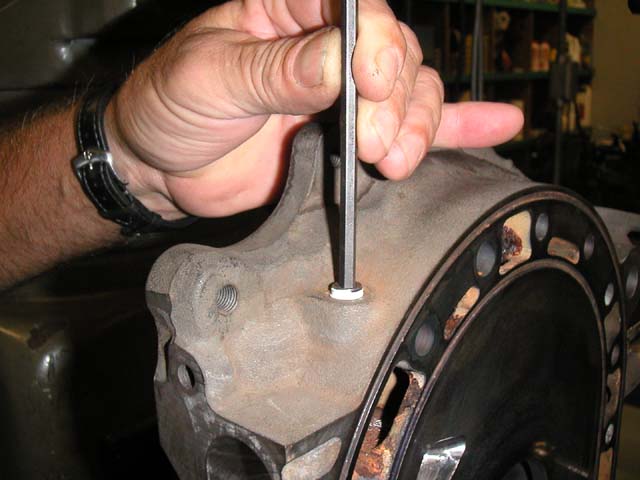

8: Coolant Flow

akiratdk

awesome....ya da man~~

davesan1

iTrader: (4)

scott, (or anyone else) - I know that this is an old thread but hopefully you or someone else will know the answers...

You say the fans turn off again at 180F. My question - What sensor input causes them to turn off? Unless there is a third coolant temperature sensor that I don’t know about, I assume the Thermosensor does this job because I believe that its resistance varies with temperature. It goes to the ECU, which I assume detects the appropriate resistance level when 180F is reached, and switches the fans off. (In comparison, I believe the Thermoswitch is just a dumb on/off switch that increases the fan speed when 226F is reached (stock), (203F with FC Thermoswitch mod.). Can anyone confirm that these assumptions are correct?

The reason for my question is that my cooling fans have suddenly decided to switch off at around 203F. I did the FC Thermoswitch mod. Approx. 18 months ago and everything was great after that. The fans came on at 203F and didn’t switch off until around 180 to 185F. So the coolant temp was always between 185 and 203F, (give or take a little), and the engine ran nice and cool. Now, all of a sudden, the fans come on at about 203F as before but seem to almost immediately switch off again and the coolant temperature rises up higher than 203F and doesn’t seem start to recover until the Thermoswitch activates at 226F and causes the fans to run at the higher speed levels. So the average running temperature is now much higher, especially on a hot day. Anyone had a similar problem?

Thanks

Dave

scotty305

iTrader: (2)

Dave,

It sounds like you have a good understanding of how the coolant sensor and the thermoswitch work. The stock ECU measures the voltage produced by the changing resistance of the coolant sensor and uses that to decide when to activate the cooling fans.
The one-wire thermosensor (I prefer to call it a thermoswitch) acts like a switch, it activates another relay to increase the fan speed. On cars with the cooling system recall/update, there is a little black box installed near the ECU that will turn the fans on when the thermoswitch is activated, even if that is a lower temp than the stock ECU would activate them.


Luckily I haven't had to troubleshoot my fan control system, but I would check the basics first: be sure your thermoswitch is connected, be sure the engine is grounded well since the thermoswitch uses the engine as ground, and be sure your little black box is connected and also grounded to the chassis (there should be a ring terminal near the ECU).

If you still need help figuring it out, there should be a thread about how the fan relays are activated with some more info. You might want to measure the relays and make sure they are all working properly. They live in a pretty hot part of the engine bay and aren't quite waterproof either.

-s-

Viking War Hammer

iTrader: (8)

How do you fill your coolant ?

I built mine, but I need to figure out how to fill it

Cameront

amazing!

Rx7_Nut13B

iTrader: (1)

I am using the Air separator as a fill point.

TURSTY

When using an aftermarket temp gauge on a FD, where the best place to put the sencer if I want to retain the factory gauge?

vudoodoodoo

Nice.

rosrex7

anyone know where to get the rubber ring that goes between the neck and the radiator cap ?
The rubber ring that in under the 2 bolts under the radiator cap?
One of the bolts are starting to rust loks like it may be the answer to my mystery missing coolant.

calculon

iTrader: (29)

rosrex7:

http://www.mazdatrix.com/getprice.as...m=15-1740-N326

gracer7-rx7

iTrader: (16)

throttle body coolant line. search for posts from adam_c on that topic and you'll see a few discussions on various places for the sensor position

rosrex7

now that one says 86-88.. will it fit on an FD?

cosmo105

My FD has an FMIC and ever since I had Steve Kan tune it (it was pig rich) the temps have rised somewhat (due to a leaner afr).

Since then I've had my Koyo radiator modified to have the top tank extended completely across the radiator and changed the one 5 blade fan (passenger side) to a 4 blade.

WOW, what a difference. The temps now stay at 90C at a stop with the outside temps at 98F and I have no ducting at all. I'll be adding ducting (bottom, top and sides) this winter and I'm sure it will help.

I'll post again when ducting is completed.

Mildseven

iTrader: (1)

I have a quick question about those combination AST with Thermostat housing, do they really work to remove the vapor bubbles and how do they different that the stand alone ones? Anyone have it and can chime in? Thank you very much.

Ehron

iTrader: (1)

I read through the entire thread, and I didn't see the answer so forgive me if I missed it. What was the max flow of the stock water pump in GPM (or some other unit of volume over time)?
