Batter Relocation questions
1) Should I have an worries about using a sealed lead acid unit (for interior usage)?
2) Almost all the options require the loss of an entire cargo bin, right?
3) What would you recommend for cutting the bin, that looks like thick plastic?
4) Are there any noice issues? I removed the existing bins, and see the insulation underneath, I guess I will just mount the battery tray on top of that...
5) The kit I have, a Petitt unit, requires drilling for mounting bolts, then applying nuts on the bottom. The fuel line appears to run behind the driver side bin, right?
2) Almost all the options require the loss of an entire cargo bin, right?
3) What would you recommend for cutting the bin, that looks like thick plastic?
4) Are there any noice issues? I removed the existing bins, and see the insulation underneath, I guess I will just mount the battery tray on top of that...
5) The kit I have, a Petitt unit, requires drilling for mounting bolts, then applying nuts on the bottom. The fuel line appears to run behind the driver side bin, right?
#2
Rotary Freak
# 1=no #2 right #3=remove bin cut with jig saw or box knife or die grinder-cut off wheel ,not that hard # 4 just think it out do not make stupid mistakes. # 5 =the fuel lines are on the drivers side. the Petitt kit is a wast of money, use bigger and better wire and make your own battery tray -hold down.better and cheeper.
#3
I'm a CF and poop smith
#1 why dont you go with a dry battery if you already are gonna have to buy a new one?
#2 no you dont need to cut up the box, you can always relocate it to the rear hatch, right behind the removable divider thing, under the rear strut tower bar.
#3 rotozip
#4 i have no idea
#5 yep, just like what duboisr said
#2 no you dont need to cut up the box, you can always relocate it to the rear hatch, right behind the removable divider thing, under the rear strut tower bar.
#3 rotozip
#4 i have no idea
#5 yep, just like what duboisr said
#4
I would think that a dry cell would be the best choice(It's what I have).
The bin can be cut with a Dremel or a small hand saw(jig saw type blade).
I mounted my batttery in the passenger side bin after I cut out the bottom of the bin. No wires or fuel lines there. Very easy to drill through about 1/4" metal there.
I have had no increased noise but I have an R1(supposedly has less insulation)
The bin can be cut with a Dremel or a small hand saw(jig saw type blade).
I mounted my batttery in the passenger side bin after I cut out the bottom of the bin. No wires or fuel lines there. Very easy to drill through about 1/4" metal there.
I have had no increased noise but I have an R1(supposedly has less insulation)
#7
HARRRRRRRRR
Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes
on
0 Posts
I vented mine to the outsided with some small holes just above the battery. Cut out the bin with a dremel tool and fiberglass disk. The cut off blades are too fragile and hang up on the thick plastic. I will try and get some pics soon.
Trending Topics
#10
Ex fd *****
Most competition sanctioning bodies (and US highway safety regulations)don't allow any type of wet cell battery in the passenger compartment, unless it is in a Sealed enclosure that is vented to the outside of the vehicle. Some exempt OPTIMA type batteries from this requirement. so in general if you choose any type of wet cell for instalation inside the pass compartment put it in a Marine type sealed box and add a vent hose to the outside, the vent should be at least 1/2" ID.
Last edited by maxpesce; 10-21-02 at 10:30 AM.
#12
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Duboisr - Did you have the Pettit battery kit? I was looking at it in theri catalog and liked it. M2 does not have a pic of theirs (maybe the same).

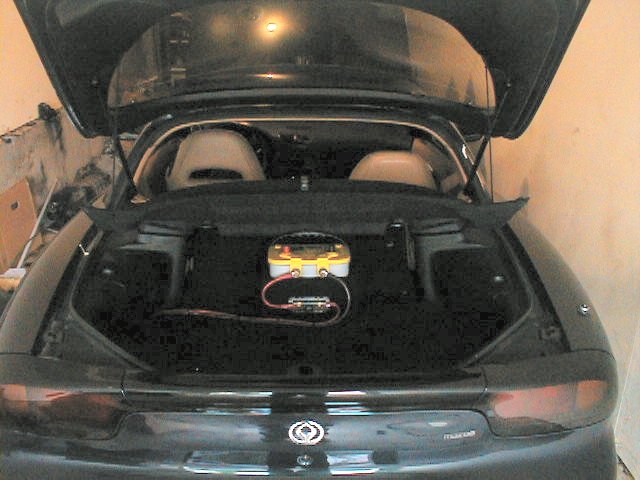

Black Scorpio Battery enhanced pic
Black Scorpio Battery enhanced pic
Last edited by GoRacer; 10-21-02 at 07:17 PM.
#13
Rotary Freak
NO I do not . One of Garfinkle s customers form Ga had it for Gar to install with many other things. The wire is in his tool box to this day. He used larger fine wire cable and better ends, ect . He also runs several ground cables , this is very important.
#14
Originally posted by redrotorR1
So, I take it that the emission of toxic fumes from a lead acid battery is a myth? Or is it just such a small concentration that it ends up being ppm or ppb?
So, I take it that the emission of toxic fumes from a lead acid battery is a myth? Or is it just such a small concentration that it ends up being ppm or ppb?
I believe it's hydrogen gas(I should know this since I was a chem major).
You do not want hydrogen gas accumulating in your passenger compartment.
But it is a small amount.
#17
Ex fd *****
Mr Stock is right - Lead Acid batteries vent Hydrogen during their charge cycle - Hydrogen in certain concentrations is HIGHLY EXPLOSIVE (something like 3x the energy per pound than Gasoline) It is the fuel that sent man to the MOON and powers the Space Shuttle's Main engines
Last edited by maxpesce; 10-22-02 at 02:53 PM.
#18
Polishing Fiend
iTrader: (139)
My input:
http://reganrotaryracing.tripod.com/batrelo.htm
A note though...my install was a bit more complex due to the roll bar.
And some anecdotal responses to the originators questions.
- do NOT use a wet cell battery in the car because 1)hydrogen generation and 2)if you are every in a rollover and the battery punctures or ruptures you're gonna get battery acid everywhere including possibly on you!
- I used a dremel for cutting the bin plastic
- fuel lines are on the drivers side. I placed my battery in the pax bin to better offset the drivers weight
- rear hatch is ok but it places the battery kinda high IMO. Best to keep the center of gravity as low as possible.
FWIW
Regards,
Crispy
http://reganrotaryracing.tripod.com/batrelo.htm
A note though...my install was a bit more complex due to the roll bar.
And some anecdotal responses to the originators questions.
- do NOT use a wet cell battery in the car because 1)hydrogen generation and 2)if you are every in a rollover and the battery punctures or ruptures you're gonna get battery acid everywhere including possibly on you!
- I used a dremel for cutting the bin plastic
- fuel lines are on the drivers side. I placed my battery in the pax bin to better offset the drivers weight
- rear hatch is ok but it places the battery kinda high IMO. Best to keep the center of gravity as low as possible.
FWIW
Regards,
Crispy
#22
Rotary Freak
Thread Starter
Join Date: May 2002
Location: Houston
Posts: 1,742
Likes: 0
Received 0 Likes
on
0 Posts
OK OK OK.
I sent the Pettit kit back to them. I want to go with an Optima or other dry cell in a setup like BlackScorpios. That way I can keep both bins, and the rear cargo area is so freaking useless anyways.
BlackScorpio, what was your equipment breakdown, how did you secure the battery, and I assume you went along the driver side doorsill to get to the firewall?
I sent the Pettit kit back to them. I want to go with an Optima or other dry cell in a setup like BlackScorpios. That way I can keep both bins, and the rear cargo area is so freaking useless anyways.
BlackScorpio, what was your equipment breakdown, how did you secure the battery, and I assume you went along the driver side doorsill to get to the firewall?
#23
#1 F0RUM TROLL
Join Date: Mar 2002
Location: Naugatuck, CT
Posts: 1,132
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by 7-sins
Blacksorpio, did you make that kit yourself? I like that setup but how is the battery bolted down?
Blacksorpio, did you make that kit yourself? I like that setup but how is the battery bolted down?
#24
Rotary Freak
Thread Starter
Join Date: May 2002
Location: Houston
Posts: 1,742
Likes: 0
Received 0 Likes
on
0 Posts
It looks like both positive and negative terminals are exposed, so you can't take the chance of having anything metallic, or containing liquids which might spill in your trunk
#25
#1 F0RUM TROLL
Join Date: Mar 2002
Location: Naugatuck, CT
Posts: 1,132
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by PVerdieck
It looks like both positive and negative terminals are exposed, so you can't take the chance of having anything metallic, or containing liquids which might spill in your trunk
It looks like both positive and negative terminals are exposed, so you can't take the chance of having anything metallic, or containing liquids which might spill in your trunk
