Auto to manual wire up
Let me add to this post.. I found about wiring up the connectors
so X-05 connector is the blue one
and the x-14 connector is the white one
now I'm following everything that is written up on this post but I still have a few wire lift out...
I know the black wire from the x-14 connector go's to the x-05 connector but were do the others go????? To the black plug
Here are the color wires that are left out...
By the white plug (x-14 connector) by the firewall
Black, blue, white, and a light green

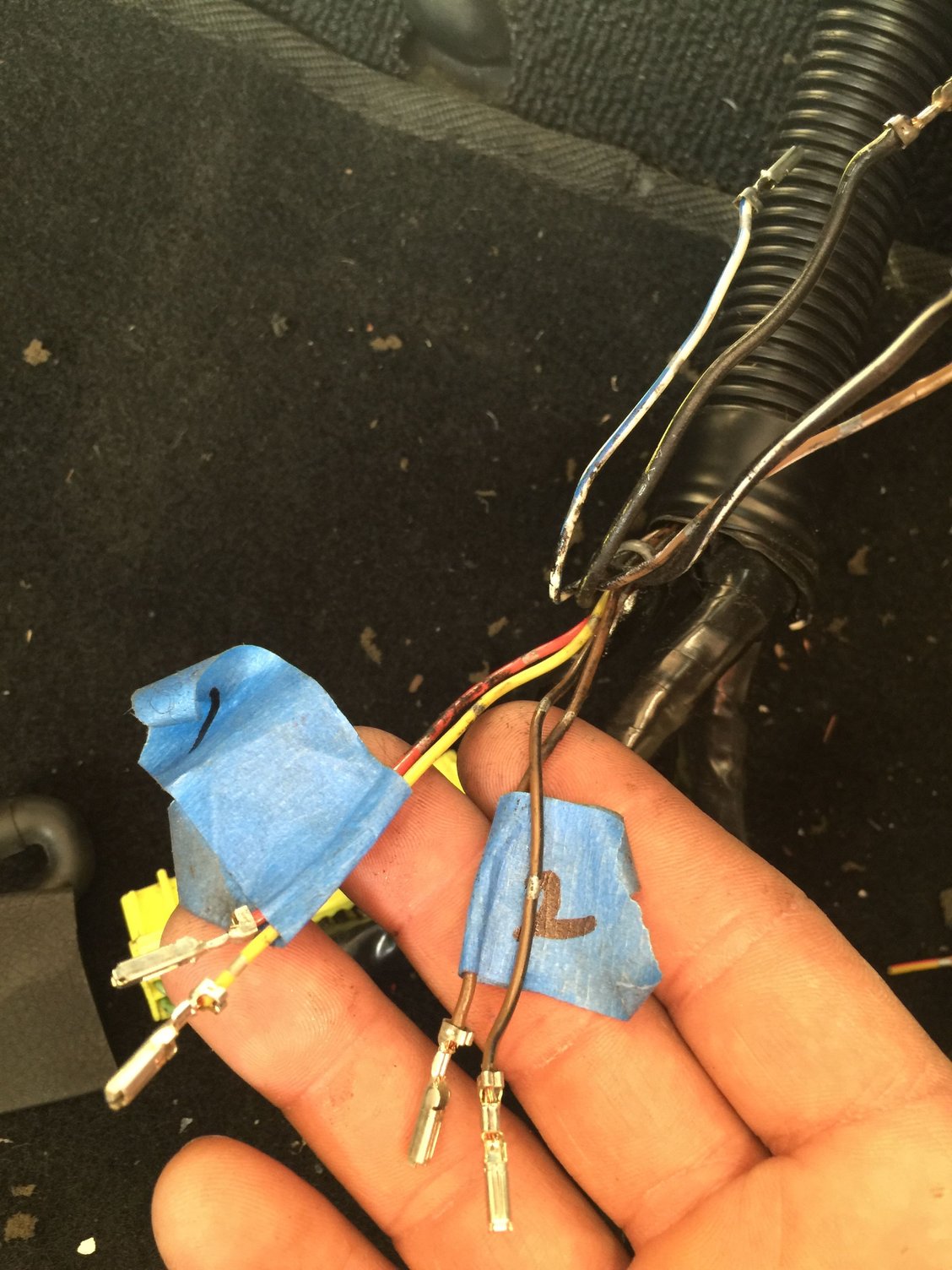

By the blue plug (x-05 connector)
Yellow, red, brown/black stripe, brown
Were do I plug them????
Also what is this little black box next to the ecu???
so X-05 connector is the blue one
and the x-14 connector is the white one
now I'm following everything that is written up on this post but I still have a few wire lift out...
I know the black wire from the x-14 connector go's to the x-05 connector but were do the others go????? To the black plug
Here are the color wires that are left out...
By the white plug (x-14 connector) by the firewall
Black, blue, white, and a light green
By the blue plug (x-05 connector)
Yellow, red, brown/black stripe, brown
Were do I plug them????
Also what is this little black box next to the ecu???
