AST Removal

So basically, what I've done is remove the stock rad cap and base, and put on a FC's cap and base, plugged the nipple on the water neck, and plugged the nipple on the bottom of the rad. Then from the FC's base I rad a 3/8th hose to the over flow tank.

Sounds good?
Old 04-13-09, 04:49 PM
  #2
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,012
Received 862 Likes on 611 Posts
Sounds good.
FWIW, I dremeled off the filler neck nipple then drilled and tapped the hole for an NPT plug. Looks a little better and IMO, less likely to leak.
Old 04-13-09, 10:02 PM
  #3
Full Member
iTrader: (12)

jkep21's Avatar

Join Date: Apr 2009
Location: new york
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
Just make sure you have no air in it. You can rent the funnel kit from autozone for free to make sure it's all out...
Old 04-14-09, 12:57 PM
  #4
Geby

Thread Starter
iTrader: (6)

FD3S-K's Avatar

Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes on 0 Posts
Thanks guys.
Old 04-14-09, 04:52 PM
  #5
Full Member

iTrader: (3)

wickedywick's Avatar

Join Date: Jun 2006
Location: RVA
Posts: 244
Received 2 Likes on 2 Posts
love the mod, no problems with mine. And just like everyone else said, setup looks good.
Old 05-01-09, 10:15 AM
  #6
Senior Member

iTrader: (15)

rescueranger's Avatar

Join Date: Jul 2003
Location: nova
Posts: 715
Received 1 Like on 1 Post
do you have pictures? i'm planning on going this route, did you use rubber plugs?
Old 05-01-09, 12:37 PM
  #7
SINFUL7

iTrader: (37)

KaiFD3S's Avatar

Join Date: Apr 2004
Location: Alaska
Posts: 6,574
Received 1 Like on 1 Post
What I did is instead of plugging those 2 holes I just run the hose from the radiator to the nipple on the housing, I did this so that way if there is any air in the radiator it still has a way out.
Old 11-21-09, 10:14 AM
  #8
Nearing Completion...

iTrader: (473)

str8ryd's Avatar

Join Date: Aug 2006
Location: Chicago
Posts: 4,735
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by KaiFD3S
What I did is instead of plugging those 2 holes I just run the hose from the radiator to the nipple on the housing, I did this so that way if there is any air in the radiator it still has a way out.

Old thread bump .


I did the same thing as you Kai. Just wondering if this is a proper solution to the air issue?
Old 11-21-09, 11:48 AM
  #9
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,012
Received 862 Likes on 611 Posts
Originally Posted by str8ryd
Old thread bump .
I did the same thing as you Kai. Just wondering if this is a proper solution to the air issue?
The hose leading from the housing goes to the bottom of the radiator, not really where you're likely to find trapped air. And granted it's not very big, but wouldn't it also present a by-pass to the radiator....allowing coolant to (essentially) return right back into the motor?
Old 11-21-09, 12:54 PM
  #10
Rotary Enthusiast

iTrader: (17)

Six Rotors's Avatar

Join Date: Feb 2001
Location: Pluto
Posts: 878
Likes: 0
Received 0 Likes on 0 Posts
I have just done mine.I also retained the hose from the bottom of the radiator to the t-stat housing.I fabricated a piece of SS pipe basically to replace the ast and fitted a plug with a 0.089in hole(yes I measured the size of the hole in the ast).I will post apic later.
Old 11-21-09, 02:25 PM
  #11
SINFUL7

iTrader: (37)

KaiFD3S's Avatar

Join Date: Apr 2004
Location: Alaska
Posts: 6,574
Received 1 Like on 1 Post
Originally Posted by str8ryd
Old thread bump .


I did the same thing as you Kai. Just wondering if this is a proper solution to the air issue?
Not sure if it is the proper solution but I have been running it this way for the last six years and the engine is still running strong, even with the single...
Old 11-21-09, 07:47 PM
  #12
Rotary Enthusiast

iTrader: (17)

Six Rotors's Avatar

Join Date: Feb 2001
Location: Pluto
Posts: 878
Likes: 0
Received 0 Likes on 0 Posts

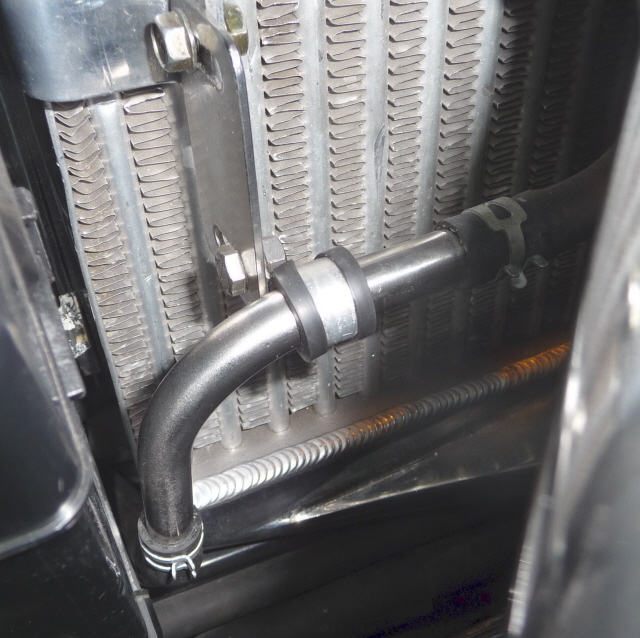

ast replacement pics

Here's what I did.Works just fine.
Attached Thumbnails AST Removal-ast-replacement-1.jpg   AST Removal-ast-replacement2.jpg
Old 07-11-11, 08:57 PM
  #13
Senior Member

iTrader: (23)

orange7's Avatar

Join Date: Dec 2007
Location: LBC
Posts: 376
Likes: 0
Received 1 Like on 1 Post
where did you get that pipe?
