Apexi GT Intercooler pipework
06-16-14, 04:17 AM
#1
Senior Member
Thread Starter
Apexi GT Intercooler pipework
So managed to sort a Apexi GT intercooler I just need to sort the pipework from the turbo side (stock twins) to the intercooler and as I have no engine in the car or the intercooler yet it may prove difficult!
Any one have one fitted I can get the angles and pipe work length from?
Thanks in advance
[/QUOTE]
Any one have one fitted I can get the angles and pipe work length from?
Thanks in advance
[/QUOTE]
06-23-14, 05:48 PM
#2
Teddy bears have claws
iTrader: (2)
Join Date: Aug 2004
Location: Eugene/Springfield, OR
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts

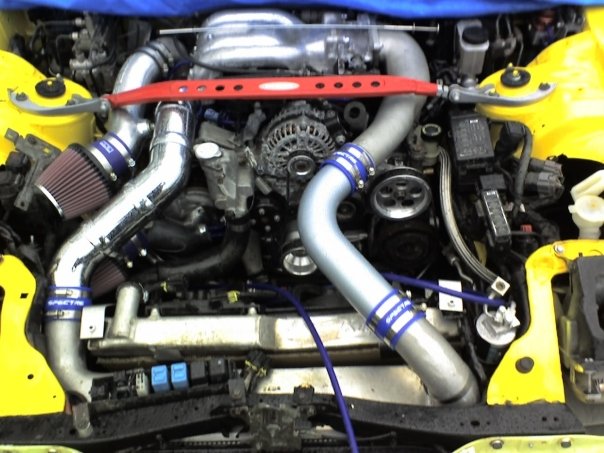

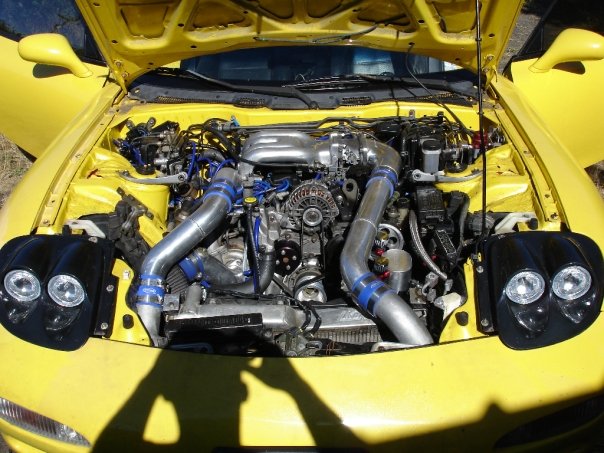

I don't know about the angles on the routing you showed, but this is how I did it.
I put a 90 degree coming off the y-pipe, then used two 45 degree bends to get to the intercooler. My intake is the HKS RS, and I used K&N filters.
Hope that helps.
I put a 90 degree coming off the y-pipe, then used two 45 degree bends to get to the intercooler. My intake is the HKS RS, and I used K&N filters.
Hope that helps.
06-27-14, 03:01 AM
#3
Senior Member
Thread Starter
ah ok, I'm using the Apexi filters also like in my photo so not sure it will work but thanks, i am also using a Koyo rad does this just sit like the stock one?
great looking car BTW
great looking car BTW
06-27-14, 04:48 PM
#4
Teddy bears have claws
iTrader: (2)
Join Date: Aug 2004
Location: Eugene/Springfield, OR
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
I think so. I didn't have the brackets for the rad, but the bottom went in the same place as in the OEM configuration, I believe, and then I made a couple brackets to hold the top.
