anyone running a "custom" exhaust setup ?
02-02-05, 06:33 PM
#1
boost > *
Thread Starter
Join Date: Aug 2004
Location: buffalo, ny
Posts: 1,527
Likes: 0
Received 0 Likes
on
0 Posts
anyone running a "custom" exhaust setup ?
as the title states, just curious if anyone has made their own exhaust system instead of buying one pre-made. i'm in the process of goin single and thinking of going to 4", thoughts/opinions? thanks in advance
02-02-05, 08:03 PM
#2
off camber
iTrader: (1)
Join Date: Dec 2004
Location: atl, ga
Posts: 482
Likes: 0
Received 0 Likes
on
0 Posts
mine is custom 4". I also have a custom 3" on my WRX. I would never purchase an off the shelf unit again. It is MUCH less exspensive to have them built.
They work awesome. The one on my WRX yeilded more power than ANY commonly avalible aftermarket unit. (compaired to SCC dyno review on them vs. my actual dyno charts). Yes, I had the same mods as the car in SCC when I did it.
They work awesome. The one on my WRX yeilded more power than ANY commonly avalible aftermarket unit. (compaired to SCC dyno review on them vs. my actual dyno charts). Yes, I had the same mods as the car in SCC when I did it.
02-02-05, 09:03 PM
#5
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
I have a 3.5 with 2 3.5" straight through mufflers and a metal substrate 4" cat. The entire thing is stainless, including the hangers, and all the clamps are V-band. It cost a pretty penny, but I have yet to hear an FD exhaust that I think sounds better.
02-02-05, 09:33 PM
#6
RX-7 Bad Ass
iTrader: (55)
Biggest problem with a fabbed exhaust is the quality is an unknown. I've seen some really nice fabbed systems, but I've seen more that were NIGHTMARES.
Buying a name brand Japanese exhaust guarantees you good fitment, quality design and ease of installation and removal. With a custom exhaust, you're at the whim of the person designing it.
Remember, exhaust DOES have to come off for various jobs on the car - doing a clutch, working on the diff, etc.
The funniest were what we called "wishbones". FC's have dual exhaust, and I've worked on a few FC's with muffler shop specials. The ENTIRE exhaust was ONE welded piece. If you wanted to remove just a section, tough - you had to do the whole thing. If you wanted to ditch the crappy mufflers or crappy Catco cat, tough - it was one solid piece.
It can also be hard to find mufflers that aren't insanely loud. Most aftermarket mufflers are VERY loud on a rotary, especially with midpipe/downpipe.
Dale
Buying a name brand Japanese exhaust guarantees you good fitment, quality design and ease of installation and removal. With a custom exhaust, you're at the whim of the person designing it.
Remember, exhaust DOES have to come off for various jobs on the car - doing a clutch, working on the diff, etc.
The funniest were what we called "wishbones". FC's have dual exhaust, and I've worked on a few FC's with muffler shop specials. The ENTIRE exhaust was ONE welded piece. If you wanted to remove just a section, tough - you had to do the whole thing. If you wanted to ditch the crappy mufflers or crappy Catco cat, tough - it was one solid piece.
It can also be hard to find mufflers that aren't insanely loud. Most aftermarket mufflers are VERY loud on a rotary, especially with midpipe/downpipe.
Dale
02-02-05, 11:10 PM
#7
Insane Burnout
Join Date: Oct 2003
Location: Pleasanton, CA
Posts: 1,568
Likes: 0
Received 0 Likes
on
0 Posts
I might be going this route myself. Could anyone post pics of their exhuast and if any, what mufflers they used. And sound clips or videos are always welcome!
Trending Topics
02-02-05, 11:34 PM
#9
This is kinda/sorta on the same topic...I was thinking of going w/ a 3.5" or 4" exhaust, and possibly even shortening it so that it came out right in front of the rear tire. Anyone ever try/consider such a setup? Shorter exhaust = less restriction = more power....

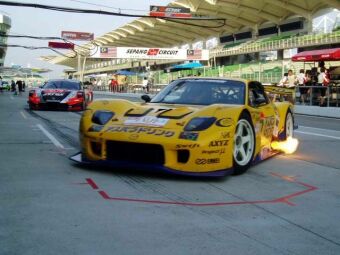

The RE GT car uses this setup, but I'm not sure how much work it would take to make happen, and what the advantages and disadvantages were...
The RE GT car uses this setup, but I'm not sure how much work it would take to make happen, and what the advantages and disadvantages were...
02-02-05, 11:41 PM
#10
boost > *
Thread Starter
Join Date: Aug 2004
Location: buffalo, ny
Posts: 1,527
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DaleClark
Biggest problem with a fabbed exhaust is the quality is an unknown. I've seen some really nice fabbed systems, but I've seen more that were NIGHTMARES.
Buying a name brand Japanese exhaust guarantees you good fitment, quality design and ease of installation and removal. With a custom exhaust, you're at the whim of the person designing it.
Remember, exhaust DOES have to come off for various jobs on the car - doing a clutch, working on the diff, etc.
It can also be hard to find mufflers that aren't insanely loud. Most aftermarket mufflers are VERY loud on a rotary, especially with midpipe/downpipe.
Dale
Buying a name brand Japanese exhaust guarantees you good fitment, quality design and ease of installation and removal. With a custom exhaust, you're at the whim of the person designing it.
Remember, exhaust DOES have to come off for various jobs on the car - doing a clutch, working on the diff, etc.
It can also be hard to find mufflers that aren't insanely loud. Most aftermarket mufflers are VERY loud on a rotary, especially with midpipe/downpipe.
Dale
as far as the quality goes, i'm really not too concerned because the guy who'd be making it for me does amazing work and pays crazy attention to detail, so i'd be set with that. its more the later that i'm concerned with, u hit it right on the head. i don't want somthing thats gonna be insanely loud which is why i was hoping someone could chime in with a possible solution
02-02-05, 11:55 PM
#12
GearHeadMoFo
iTrader: (1)
Join Date: Mar 2004
Location: ATL, GA
Posts: 467
Likes: 0
Received 0 Likes
on
0 Posts
Just make sure you use a bullet type muffler as a resonator and have a fairly long tip after the muffler and it should be fairly quiet. It you use a 3-chamber "deltaFlow" Flowmaster , it sould be pretty quiet. I know flows are better for hot rods, but they actually sound really well on turbo and non-turbo import cars that I have heard.
02-03-05, 12:56 AM
#13
Banned. I got OWNED!!!
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
http://www.edelbrock.com/automotive/index.html for the MP and http://www.4zoomers.com/zoomers_exhaust_tips.htm for the ips.
Absolutely the best Ferrari-like sound ever.
I have had RB dual tip and a few others and this is the best by far.
Absolutely the best Ferrari-like sound ever.
I have had RB dual tip and a few others and this is the best by far.
02-03-05, 01:13 AM
#14
apeiron
iTrader: (2)
Join Date: Oct 2002
Location: Boulder, CO
Posts: 1,773
Likes: 0
Received 0 Likes
on
0 Posts
I second the RB Dual Tip.
IMO: The best setup for me, having a g/f and commuting from Austin to Houston pretty often, I did HKS / Any DP, Rx-7 store resonated MP, and RB Dual Tip.
The car was almost stock at idle, not that quiet, it definatley purred but it wasnt obnoxious... When I opened the throttle all the way, it would scream like my street bike.... was very rewarding and would catch people off guard.
Its a great exaust, I highly recommend it
IMO: The best setup for me, having a g/f and commuting from Austin to Houston pretty often, I did HKS / Any DP, Rx-7 store resonated MP, and RB Dual Tip.
The car was almost stock at idle, not that quiet, it definatley purred but it wasnt obnoxious... When I opened the throttle all the way, it would scream like my street bike.... was very rewarding and would catch people off guard.
Its a great exaust, I highly recommend it
02-03-05, 10:16 AM
#16
www.silverbulletrx7.com
I'm currently making my own catback from scratch. I'm using a magnaflow muffler with dual tips from Thermal R&D. All stainless. My quality will be top notch (naturally) but I guess the sound is a crap shoot. As for BoostCrzy's pics I remember the original thread. Sorry to say but welding a different tip on a Pettit exhaust isn't really custom.
Mine should be done in a few weeks. I want to take my time with getting the fitment just perfect. Damn, I wish I had a lift.
Mine should be done in a few weeks. I want to take my time with getting the fitment just perfect. Damn, I wish I had a lift.
02-03-05, 12:23 PM
#18
Banned. I got OWNED!!!
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
I have used the Edelbrock on my FC and it sounded really nice, kinda like an Italian car.
It took the heat and beating since it was SS and ceramic wool filled, not glass packed.
It took the heat and beating since it was SS and ceramic wool filled, not glass packed.
02-03-05, 12:24 PM
#19
Banned. I got OWNED!!!
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dis1
I'm currently making my own catback from scratch. I'm using a magnaflow muffler with dual tips from Thermal R&D. All stainless. My quality will be top notch (naturally) but I guess the sound is a crap shoot. As for BoostCrzy's pics I remember the original thread. Sorry to say but welding a different tip on a Pettit exhaust isn't really custom.
Mine should be done in a few weeks. I want to take my time with getting the fitment just perfect. Damn, I wish I had a lift.
Mine should be done in a few weeks. I want to take my time with getting the fitment just perfect. Damn, I wish I had a lift.
Aren't magnaflow glass packed?
if so, ur enjoyment may be short lived.
02-03-05, 12:43 PM
#20
www.silverbulletrx7.com
Originally Posted by This is
Aren't magnaflow glass packed?
if so, ur enjoyment may be short lived.
if so, ur enjoyment may be short lived.
02-03-05, 01:40 PM
#22
It would sit awfully low, since there's no channel for it to sit in going towards the rocker panel. Better not let your girlfriend get out of the car with the motor running either.
Originally Posted by FDNewbie
So no one's ever tried/considered cutting it short and letting it out in front of the rear tire? (vs just taking the exhaust all the way back)
02-03-05, 01:51 PM
#23
Originally Posted by ptrhahn
It would sit awfully low, since there's no channel for it to sit in going towards the rocker panel.
Better not let your girlfriend get out of the car with the motor running either.
02-03-05, 02:06 PM
#24
Lives on the Forum
Originally Posted by FDNewbie
Yea I'm aware of that. Would there be any structural/chassis rigidity issues if you created/cut out a channel for it to go toward the rocker panel?
02-03-05, 10:43 PM
#25
Originally Posted by DamonB
Yes. The rocker panels are some of the largest structures in the car; cutting them will weaken the chassis.
Last edited by FDNewbie; 02-03-05 at 10:46 PM.
