Air temp wiring color/ecu location
I think I made an absent minded oops here.
What is the
1) Color of the connector for the air sensor. (Blue, right?)
2) Color of the wires for the same.
3) Pin location on the ECU connector side.
I'm going through the process of cleaning up the harness and looking at some pics and labeling I took, I think I made an oops.
My original connector was broken, and what I think I did was cut it with the mindset of replacing it with another connector that I didn't need. Well, in the course of that, I must have stopped after I cut it, dropped the project for a while, went back to it and said, oh, I guess I still need to pull these back and BAM, no more air temp leads.
Thanks. This is what I get for procrastinating and not staying on a single task.
What is the
1) Color of the connector for the air sensor. (Blue, right?)
2) Color of the wires for the same.
3) Pin location on the ECU connector side.
I'm going through the process of cleaning up the harness and looking at some pics and labeling I took, I think I made an oops.
My original connector was broken, and what I think I did was cut it with the mindset of replacing it with another connector that I didn't need. Well, in the course of that, I must have stopped after I cut it, dropped the project for a while, went back to it and said, oh, I guess I still need to pull these back and BAM, no more air temp leads.
Thanks. This is what I get for procrastinating and not staying on a single task.
#2
Banned. I got OWNED!!!
Join Date: Jul 2004
Location: next to the polishing wheel!!!
Posts: 1,179
Likes: 0
Received 1 Like
on
1 Post
Intake air temperature sensor =blue connector ,,,wire colors are brown with black tracer and the one to the ECU is green .The green is the only green on the 16 pin connector, 3rd from the end ,bottom .
#6
I won't let go
Thread Starter

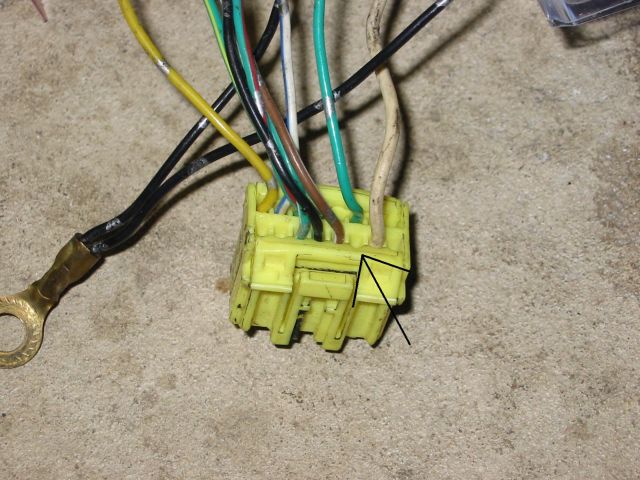

I count 16. 8 top and 8 bottom. I was just making sure I had the orientation correct (top to bottom) as there is a green with silver tabbed wire in each of the other third positions. Process of elimination should tell me that it's the right spot...but measure twice, cut once right? (Well, not what I did, but you know.)
Just making sure it's right before doing it and wrapping it up and find out later that it's still screwed.
Just making sure it's right before doing it and wrapping it up and find out later that it's still screwed.
