Air Filters Matter
a couple of days ago i had a conversation w Dr Francesco Iannetti. as usual, it was very interesting. it is great to still be learning things about our wonderful motors.
in response to his question re how my rotor housings looked i mentioned that they had longitudinal/circumferential scratches that were minor but existent. he immediately asked w me what filter i was running. i answered a Wix XP... uh, no. he was asking about my AIR filter.

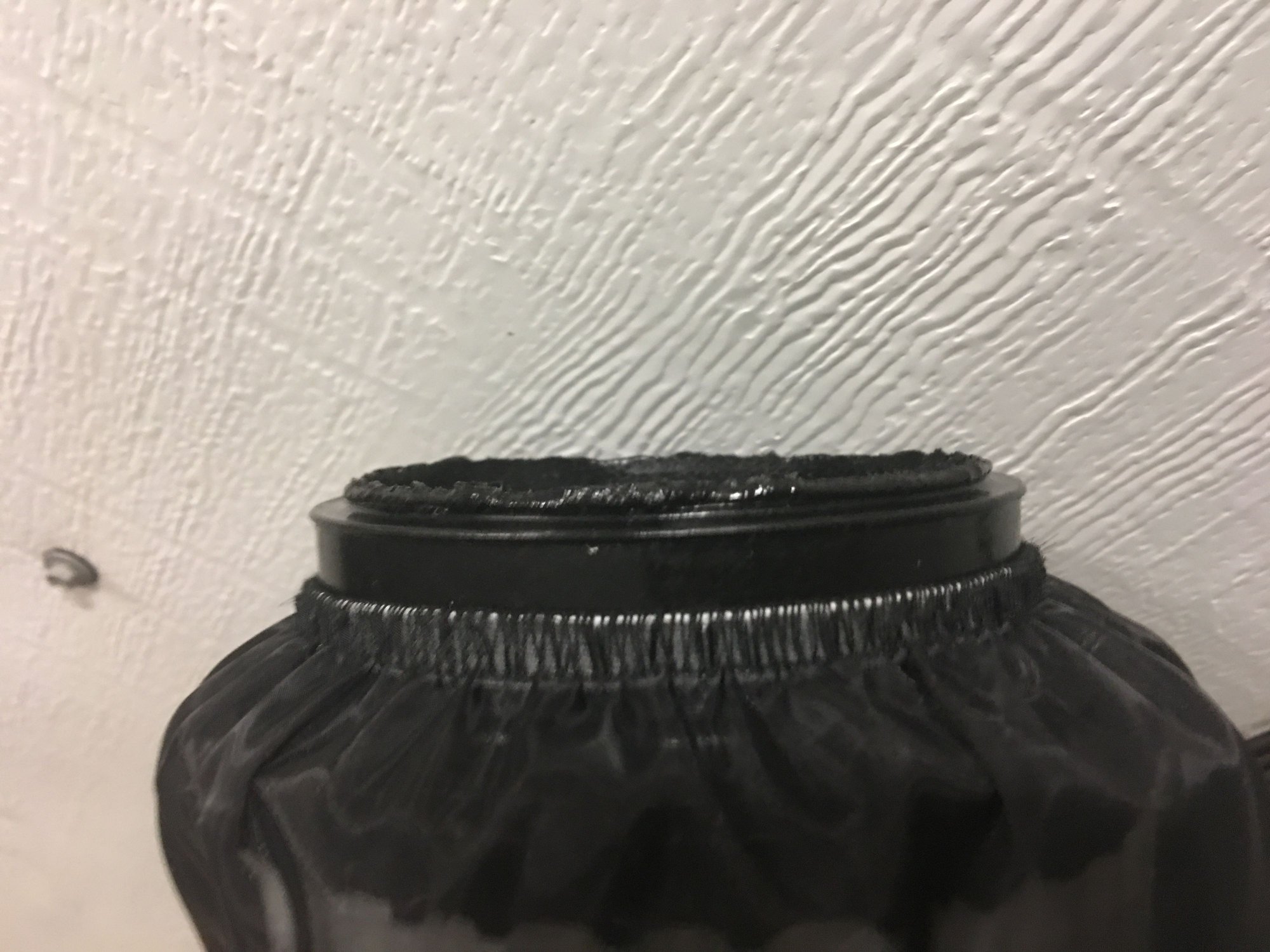

i thought i had that well covered as you can see in the picture it is a monster... 9 inches in length and 6 X 5
in 2018 i made a huge mistake delivering my car to Delete Rotary Shop. when i retrieved it my K&N air filter had been replaced with an AEM Dry Hybrid filter. "Flows way better said the proprietor."
to directly quote Dr Iannetti, "there is no free lunch." you have probably heard that before.
if you are on the dyno and make X hp with your filter and then remove it and make exactly the same power you probably should examine your filter choice. in order to properly filter incoming air there needs to be a touch of restriction.
Dr Iannetti clearly ascribed my minor scratch marks to particles making it thru the filter.
as you may know K&N bought AEM's filter operation around 10 years ago. i called K&N and had a lengthy convo w one of their tech guys. the dry element in the AEM filter is synthetic. the K&N element is cotton, read absorbent. of course the element is coated w some sort of oil. beyond that i will defer to others. i do know i never got longitudinal scratching w the K&N. the scratching has not effected my compression as it is around 110+. nor power, i made 576 SAE on the dyno a few weeks ago and a very rich AFR and 1.4 timing.
needless to say a K&N RE-0870 is headed my way. (1400 CFM at 1.5 inches of water on the flow bench)
there may be other good air filter options besides K&N and and other suggestions are welcomed. K&N worked for me. thanks to the good Dr for pointing me in the right direction.
Air Filters Matter for our motors .
in response to his question re how my rotor housings looked i mentioned that they had longitudinal/circumferential scratches that were minor but existent. he immediately asked w me what filter i was running. i answered a Wix XP... uh, no. he was asking about my AIR filter.
i thought i had that well covered as you can see in the picture it is a monster... 9 inches in length and 6 X 5
in 2018 i made a huge mistake delivering my car to Delete Rotary Shop. when i retrieved it my K&N air filter had been replaced with an AEM Dry Hybrid filter. "Flows way better said the proprietor."
to directly quote Dr Iannetti, "there is no free lunch." you have probably heard that before.
if you are on the dyno and make X hp with your filter and then remove it and make exactly the same power you probably should examine your filter choice. in order to properly filter incoming air there needs to be a touch of restriction.
Dr Iannetti clearly ascribed my minor scratch marks to particles making it thru the filter.
as you may know K&N bought AEM's filter operation around 10 years ago. i called K&N and had a lengthy convo w one of their tech guys. the dry element in the AEM filter is synthetic. the K&N element is cotton, read absorbent. of course the element is coated w some sort of oil. beyond that i will defer to others. i do know i never got longitudinal scratching w the K&N. the scratching has not effected my compression as it is around 110+. nor power, i made 576 SAE on the dyno a few weeks ago and a very rich AFR and 1.4 timing.
needless to say a K&N RE-0870 is headed my way. (1400 CFM at 1.5 inches of water on the flow bench)
there may be other good air filter options besides K&N and and other suggestions are welcomed. K&N worked for me. thanks to the good Dr for pointing me in the right direction.
Air Filters Matter for our motors .
The following 4 users liked this post by Howard Coleman:
#2
Facilitator of Disorder
iTrader: (4)
Join Date: Dec 2020
Location: Allentown PA/ Three Mile Island
Posts: 277
Received 152 Likes
on
96 Posts
Howard, thank you for the informative post. As of late, I had been wondering how many of these cars (with very expensive engine builds) I have seen operating sans-air filter would fare. I would not have guessed that there would have been scratches from particulates entering the combustion chamber with a filter. I suppose it just goes to shows how important the filtration media is.
#3
Racecar - Formula 2000
K&n
I've been running a K&N oiled filter on my racecar, my FD (slightly modified PF Supercars setup), and my Chevy G30 Van tow vehicle. My racecar engine builder says my engine always looks good when it comes back for a rebuild. The van engine has 180K miles on it since being rebuilt, all with the K&N, and it is running beautifully. So the K&N filters seem to work VERY well.
The following 2 users liked this post by 1badFB:
Fritz Flynn (11-25-23),
Howard Coleman (11-10-23)
#5
https://www.billswebspace.com/AirFil...0and%20airflow
Not only does the paper filter capture more it has as much greater holding capacity. Unless you’re very consistently cleaning your K&N, you’re letting more through than the paper. I just wish the auto industry would go to a deeper filter for the best of both worlds. Looking on the HVAC side, 2” MERV13 filter has better filtration AND less pressure drop than a 1” MERV8.
Not only does the paper filter capture more it has as much greater holding capacity. Unless you’re very consistently cleaning your K&N, you’re letting more through than the paper. I just wish the auto industry would go to a deeper filter for the best of both worlds. Looking on the HVAC side, 2” MERV13 filter has better filtration AND less pressure drop than a 1” MERV8.
#6
Racecar - Formula 2000
https://www.billswebspace.com/AirFil...0and%20airflow
Not only does the paper filter capture more it has as much greater holding capacity. Unless you’re very consistently cleaning your K&N, you’re letting more through than the paper. I just wish the auto industry would go to a deeper filter for the best of both worlds. Looking on the HVAC side, 2” MERV13 filter has better filtration AND less pressure drop than a 1” MERV8.
Not only does the paper filter capture more it has as much greater holding capacity. Unless you’re very consistently cleaning your K&N, you’re letting more through than the paper. I just wish the auto industry would go to a deeper filter for the best of both worlds. Looking on the HVAC side, 2” MERV13 filter has better filtration AND less pressure drop than a 1” MERV8.
However,
o the K&N is specified by my racecar engine rules.
o On the van, there was nothing available that would fit in the stock AF location (modified for a 4" cold air intake) w/o too much restriction other than the K&N.
o Since the FD's PF intake setup came with the K&N, I've been using it since around 1995.
One thing about the K&N that I believe you stated incorrectly is that the K&N needs to be cleaned often or it will pass more dirt. In some tests way back when, the opposite was true, but with the caveat that flow restriction was increased when the filter was very dirty.
The following 2 users liked this post by DaveW:
madhat1111 (11-10-23),
Sgtblue (11-11-23)
#7
I have been aware of this type of comparison for many years. They are correct in that most paper air filters remove finer particles than a K&N.
However,
o the K&N is specified by my racecar engine rules.
o On the van, there was nothing available that would fit in the stock AF location (modified for a 4" cold air intake) w/o too much restriction other than the K&N.
o Since the FD's PF intake setup came with the K&N, I've been using it since around 1995.
One thing about the K&N that I believe you stated incorrectly is that the K&N needs to be cleaned often or it will pass more dirt. In some tests way back when, the opposite was true, but with the caveat that flow restriction was increased when the filter was very dirty.
However,
o the K&N is specified by my racecar engine rules.
o On the van, there was nothing available that would fit in the stock AF location (modified for a 4" cold air intake) w/o too much restriction other than the K&N.
o Since the FD's PF intake setup came with the K&N, I've been using it since around 1995.
One thing about the K&N that I believe you stated incorrectly is that the K&N needs to be cleaned often or it will pass more dirt. In some tests way back when, the opposite was true, but with the caveat that flow restriction was increased when the filter was very dirty.
I’m not saying anyone is wrong for using them, and there are benefits, but people should just be aware that they’re making sacrifices in filtration for those benefits. There’s always a cost/benefit ratio
Last edited by madhat1111; 11-10-23 at 12:40 PM.
The following users liked this post:
DaveW (11-10-23)
Trending Topics
#8
10000 RPM Lane
iTrader: (2)
we discussed it on here before, it really takes a much larger filter than most realize, likely two Y-piped together depending on the power level. A single 4” inlet cone or cylinder filter like most people use because the compressor inlet is 4” is generally not enough and is holding back performance.
that anti-K&N internet talk is total bs, the issue is people are running too small of a filter in the first place, because most people either guess or just do what they see other people doing
.
.
that anti-K&N internet talk is total bs, the issue is people are running too small of a filter in the first place, because most people either guess or just do what they see other people doing
.
.
Last edited by TeamRX8; 11-10-23 at 09:28 PM.
The following 3 users liked this post by TeamRX8:
The following users liked this post:
Howard Coleman (11-11-23)
#10
Urban Combat Vet
iTrader: (16)
Agreed. And I’m aware of some filtration sacrifice. But like most, we’re talking about a turbocharged car that isn’t DD’d. Because of that and my usual maintenance schedule the big K n N that came in the PFS box gets cleaned and recharged probably 2500 miles or less. For my purposes that sacrifice isn’t significant.
The following 2 users liked this post by Sgtblue:
madhat1111 (11-12-23),
Nakd n Fearless (11-20-23)
#11
Racing Rotary Since 1983
Thread Starter
iTrader: (6)
air filter threads resemble "which oil" threads... they never end and the majority of the contributions are offered by those with minimal scientific credentials. when it comes to air filters i am in this group.
i don't care as to why my K&N filter delivered scratchless housings. i do care that it did and the AEM Dry Hybrid did not. i am indebted to Dr I for identifying the culprit.
interestingly when i was talking to the K&N tech guy he asked me how much rw hp i was making in order to match it to a proper sized filter. i said 600. he started to make a suggestion but before he got too far i told him that since rotaries need about 30% more flow than a piston engine he should be looking at around 800 piston. he came back w exactly the size filter that i had... i recall talking to K&N tech when i designed my turbo manifold. one of the many considerations was the ability (packagingwise) to house the proper filter. that was 2012... so K&N has been consistent as to filter size.
my filter pencils out at 1555 sq inches. how about yours?
i don't care as to why my K&N filter delivered scratchless housings. i do care that it did and the AEM Dry Hybrid did not. i am indebted to Dr I for identifying the culprit.
interestingly when i was talking to the K&N tech guy he asked me how much rw hp i was making in order to match it to a proper sized filter. i said 600. he started to make a suggestion but before he got too far i told him that since rotaries need about 30% more flow than a piston engine he should be looking at around 800 piston. he came back w exactly the size filter that i had... i recall talking to K&N tech when i designed my turbo manifold. one of the many considerations was the ability (packagingwise) to house the proper filter. that was 2012... so K&N has been consistent as to filter size.
my filter pencils out at 1555 sq inches. how about yours?
Last edited by Howard Coleman; 11-11-23 at 08:47 AM.
#13
10000 RPM Lane
iTrader: (2)
if you put an AEM filter directly on the compressor inlet and run it hard you can discover another reason an AEM filter will suck there; the flange neck material they use is different from K&N; less temperature tolerant and will melt enough to stress flow (!!!). I couldn’t figure out how the clamp was always becoming loose until I tried to take it off. It was stuck to the compressor flange initially, and when it finally popped off the reason why was obvious. It had a (way too small) K&N on it forever by the previous owner prior without issue and run much harder actually:
.
.
.
.
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts
If one wants a paper filter, or at least the option, the AP1 S2000 filter is really nice. the connection to the engine is 80mm (Ap2 is smaller)
obviously its not going to be enough for a 600hp car, but for something more mild it is an option
obviously its not going to be enough for a 600hp car, but for something more mild it is an option
The following 2 users liked this post by j9fd3s:
madhat1111 (11-13-23),
WANKfactor (11-20-23)
#15
GSSL-SE
iTrader: (1)
If only I had the time and money to test this stuff myself. Its wild to me that this still seems theoretical...
I can see David's K&N theory holding up on an N/A engine, but I'm more skeptical in a turbo application. In boost it might pull air a lot more like a static flow bench.
I speculate that the fibers will "dance" most with the least differential pressure across the filter. I think we all agree that a bigger filter is better, so cram all you can fit and if its a K&N you might improve filtration too.
I can see David's K&N theory holding up on an N/A engine, but I'm more skeptical in a turbo application. In boost it might pull air a lot more like a static flow bench.
I speculate that the fibers will "dance" most with the least differential pressure across the filter. I think we all agree that a bigger filter is better, so cram all you can fit and if its a K&N you might improve filtration too.
The following users liked this post:
DaveW (11-13-23)
#16
Rotary Enthusiast
I am extremely disappointed that Howard didn’t include a formula to calculate the filter size for your horsepower goals. Times are definitely changing…
I have also melted a K&N that was mounted directly to the cover while street driving on a hot day in Alabama. So I would suggest a silicone coupler or spacer or another way of mounting the filter.
I have also melted a K&N that was mounted directly to the cover while street driving on a hot day in Alabama. So I would suggest a silicone coupler or spacer or another way of mounting the filter.
#17
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts
The history lesson is that Mazda showed up to the Daytona 24 hours in 1978 with a pair of Rx3's, and then failed to finish because the sand ruined the engines,
in 1979 they had learned their lesson and the Rx7 had an air cleaner and won
sometimes they went to great lengths, green thing is a pre filter
in 1979 they had learned their lesson and the Rx7 had an air cleaner and won
sometimes they went to great lengths, green thing is a pre filter
The following 3 users liked this post by j9fd3s:
The following 5 users liked this post by Howard Coleman:
#19
Racecar - Formula 2000
So, w/o considering any functional performance difference between the 2 types of material, or any difference in pleat depth, the K&N has ~1.9 times the filtering area of the AEM, so ~47% less restriction.
Last edited by DaveW; 11-18-23 at 11:23 AM.
#21
~17 MPG
iTrader: (2)
Thanks for the heads-up, Howard. I would agree that more airflow isn't worth damaging an engine, especially when it's possible to simply swap to a larger filter that is more effective at capturing debris and still meets the engine's flow needs. Did your contacts at K&N make any claims about the filtration effectiveness of the K&N part number vs the AEM part number?
There were many versions of AEM air filters over the years when the intake R&D and manufacturing happened in Hawthorne, in general the filter with 39 pleats will be cheaper to build than the same media with 59 pleats. I'm not surprised to hear quality has gone down since the owners sold AEM intakes to K&N around 2009. It's also likely K&N has improved their filters since 'back in the day' when tests showed they weren't filtering well compared to OEM or to other aftermarket filters, they would be wise to keep improving their core product them over time. If you're concerned about filter sizing, it's possible to measure pressure between the air filter and the turbocharger inlet. Some people might run a dyno pull with the filter removed to see if horsepower improves, but that also removes the 'velocity stack' shape that is usually inside the filter and helping things. A more precise test would be either swap to a larger filter or cut the filter media off of an old filter that has a similarly-shaped velocity stack.
There were many versions of AEM air filters over the years when the intake R&D and manufacturing happened in Hawthorne, in general the filter with 39 pleats will be cheaper to build than the same media with 59 pleats. I'm not surprised to hear quality has gone down since the owners sold AEM intakes to K&N around 2009. It's also likely K&N has improved their filters since 'back in the day' when tests showed they weren't filtering well compared to OEM or to other aftermarket filters, they would be wise to keep improving their core product them over time. If you're concerned about filter sizing, it's possible to measure pressure between the air filter and the turbocharger inlet. Some people might run a dyno pull with the filter removed to see if horsepower improves, but that also removes the 'velocity stack' shape that is usually inside the filter and helping things. A more precise test would be either swap to a larger filter or cut the filter media off of an old filter that has a similarly-shaped velocity stack.
The following users liked this post:
WANKfactor (11-20-23)
#22
10000 RPM Lane
iTrader: (2)
K&N will also build custom filters to order, different length or diameter, filter on the end rather than solid cap, etc.
and if you feel like extra protection is needed, a filter sock can be added to keep extra fine grit and water out:
.
.
just email them: tech@knfilters.com
.
and if you feel like extra protection is needed, a filter sock can be added to keep extra fine grit and water out:
.
.
just email them: tech@knfilters.com
.
Last edited by TeamRX8; 11-20-23 at 06:21 PM.
The following users liked this post:
DaveW (11-20-23)
#24
Racecar - Formula 2000
I came across this video the other day and started thinking maybe I should move away from K&N air filters -
https://www.youtube.com/watch?v=sJ3L-E-ufYo
https://www.youtube.com/watch?v=sJ3L-E-ufYo
Maybe flour is not the best "dirt" to replicate real usage on a car. And, also, sprinkling flour directly on the filter is not anything like the way air carries dirt to a filter on a vehicle.
Last edited by DaveW; 11-21-23 at 06:08 PM.
The following users liked this post:
Sgtblue (11-21-23)
#25
10000 RPM Lane
iTrader: (2)
you need to go watch the video I posted, it explains why a constant flow from a fan or blower gives that result
on an engine the filter flow isn’t constant in that every intake cycle results in frequency pulsing/resonance that cause the cotton fibers to dance around and this greatly increases their true filtering capability. That’s not going to be replicated by the farm guy testing method.
back in the day it was, ‘don’t believe everything you read”
which then became, “don’t believe everything you see/hear on tv”
to now being, “don’t believe everything you see/hear on the internet”.
sometimes an explanation or result can seem logical and to make sense theoretically, yet be completely wrong for less than obvious reasons.
.
on an engine the filter flow isn’t constant in that every intake cycle results in frequency pulsing/resonance that cause the cotton fibers to dance around and this greatly increases their true filtering capability. That’s not going to be replicated by the farm guy testing method.
back in the day it was, ‘don’t believe everything you read”
which then became, “don’t believe everything you see/hear on tv”
to now being, “don’t believe everything you see/hear on the internet”.
sometimes an explanation or result can seem logical and to make sense theoretically, yet be completely wrong for less than obvious reasons.
.
Last edited by TeamRX8; 11-21-23 at 06:07 PM.
