No sorry no wright up i dont know how to upload photos, i have no computer skills i will try to figure it out and at least get some pics.

As for the fuse box i feel the same way, thats a ton of wires. That crap is expensive and adds up. You have enough slack to move it up where your wiper fluid spout was ha unless you cant part with it. There is just enough room to fit it above your fender well, i just used some scrap metal that i had layin around and made a bracket. Just make sure your hood can fully close thought yeah duh ha



If you have pics on your computer somewhere, you can just add it in when you post. Scroll down the page under the smilies and all that, there is another button called "manage attachments". Click on that, when that window opens, click the browse button and it will open a window where you can attach the pic from where it is on your computer. I find it easiest to put the pic right on the desktop so you're not looking for it everywhere. Or you can make a folder titled "FD" or whatever you want to call it, so you know what you're looking for.

You can also get an account with photobucket or one of the other sites like that, and load the pic on there, copy the IMG link and post it within the text, but that's more advanced haha.

I really want to see your setup though.

If you know how to send pics through email you can just do that and I'll post them here if you want. PM me if you want to do that and I'll give you my email. Thanks!



Sweet that sounds pretty simple ill take some pics tonight and give it a shot!

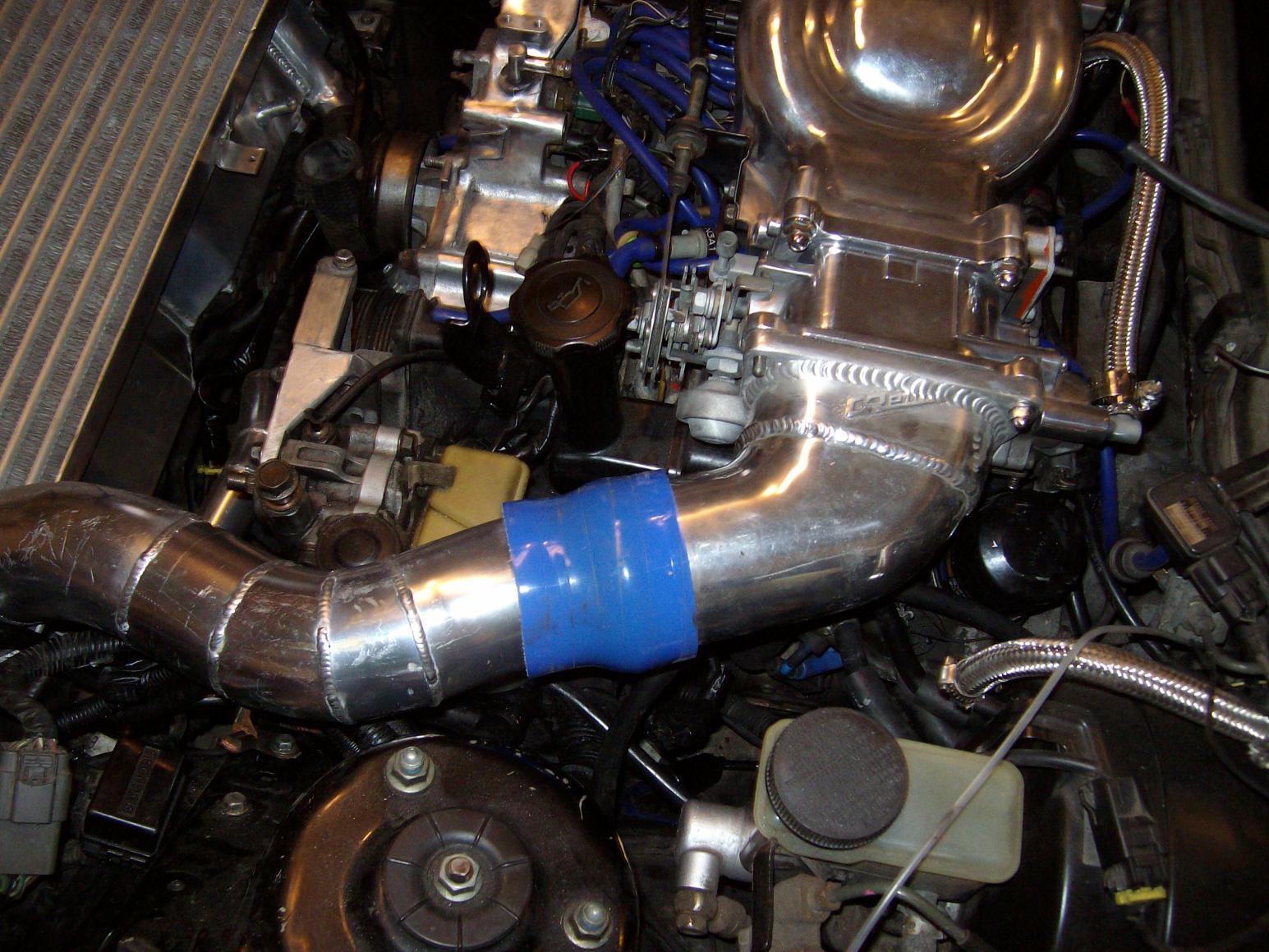

I cant get the other photos to load it says error loading oh well got one on there.



^Ok cool, I see what you did. So you just hacked out a couple sections and welded it back together? And where did you end up putting your fusebox? Looks good man! I like the Japanese-style welded piping haha. Thanks for the pic!

I guess I should also mention I'm going to have to move my IC pipe too. The way the piping comes out of the IC will be directly in the way of the ducting for the IC.

Here is the link to my cardomain page, and some engine bay pics, you can see what I mean.

http://www.cardomain.com/ride/719631/8



Yeah i took one section out at about the middle of the elbow, then i cutt off the flange and took out a little chunk there too. I probobly should have took out a little more cuz it could come to the right a little more oh well. Yeah i am all about making unessisary cutts ha jdm style ha.

I like your set up looks super clean, is that a gt35? Yeah your going to have to do some choppin to the intercooler pipe too.

ill try to post my other pics of the fuse box but the stupid thing keeps saying error uploading.



I've had that error uploading problem before, not sure what the problem is. You can send them to my email if you want, then I can try to upload them here if you want too, it's up to you.

It's supposedly a GT3767S, but I think I blew out the oil seals on the dyno cause it smokes alot under boost, so I'm getting a 500R-SP haha.
