AC parts availability and MANA vs Denso AC
Hey everyone -
Been a few threads on this recently, figured I would document a few things.
First off, you need to see what system you have, MANA or Denso. MANA is MAzda North America and was installed at the port when the cars came over from Japan. The receiver/dryer (that's the soda can-size thing up near the battery and in the intercooler duct) has 2 lines going to the top. If the drier is black, has a bracket that's welded on, and has a small box with a sight glass on the line, it's a MANA system. If it's a silver drier with a bracket that clamps around the drier and the sight glass is attached to the top of the drier, you have a a Denso system.
The only component that is shared between the two systems is the compressor - that's the pump that's driven by a belt. All the lines, the evaporator under under the dash, the condenser up front, they are all different. The threads on the fittings and fitting sizes are totally different.
Very few if any of the stock parts are available from Mazda any more.
Aftermarket wise, the Denso driers are available nearly anywhere for less than $20. They are typically available at local parts stores. The MANA drier isn't available anywhere for love or money. You could have a shop alter the AC lines and put in an aftermarket drier or maybe have the drier restored, there are places online that supposedly do that.
The exapansion valve in the evaporator seems to be available for both the Denso and MANA systems.
O-rings for each system are different sizes, I have a chart somewhere listing the sizes. I'll try and post that up. But, the O-rings are common AC o-rings, you do need to verify that they are the exact right size.
If you have a hole in a line, many AC shops can weld or braze the hole shut for a minimal amount. As the lines aren't available that's going to be a good way to go.
Big thing here - if you are pulling the AC out of the car, PLEASE sell the parts and keep them in circulation, don't just throw them out! The FD's AC, when working right, REALLY works well.
Dale
Been a few threads on this recently, figured I would document a few things.
First off, you need to see what system you have, MANA or Denso. MANA is MAzda North America and was installed at the port when the cars came over from Japan. The receiver/dryer (that's the soda can-size thing up near the battery and in the intercooler duct) has 2 lines going to the top. If the drier is black, has a bracket that's welded on, and has a small box with a sight glass on the line, it's a MANA system. If it's a silver drier with a bracket that clamps around the drier and the sight glass is attached to the top of the drier, you have a a Denso system.
The only component that is shared between the two systems is the compressor - that's the pump that's driven by a belt. All the lines, the evaporator under under the dash, the condenser up front, they are all different. The threads on the fittings and fitting sizes are totally different.
Very few if any of the stock parts are available from Mazda any more.
Aftermarket wise, the Denso driers are available nearly anywhere for less than $20. They are typically available at local parts stores. The MANA drier isn't available anywhere for love or money. You could have a shop alter the AC lines and put in an aftermarket drier or maybe have the drier restored, there are places online that supposedly do that.
The exapansion valve in the evaporator seems to be available for both the Denso and MANA systems.
O-rings for each system are different sizes, I have a chart somewhere listing the sizes. I'll try and post that up. But, the O-rings are common AC o-rings, you do need to verify that they are the exact right size.
If you have a hole in a line, many AC shops can weld or braze the hole shut for a minimal amount. As the lines aren't available that's going to be a good way to go.
Big thing here - if you are pulling the AC out of the car, PLEASE sell the parts and keep them in circulation, don't just throw them out! The FD's AC, when working right, REALLY works well.
Dale
08-23-17, 03:11 PM
#2
Senior Member
Thanks, Dale. I didn't know the dryer was so interchangeable. I have a Denso system for sure. The expansion valve and evaporator are listed online at many sources but when you call them they all say that they don't actually have it.
08-23-17, 03:41 PM
#4
Senior Member
Mine blows very well on setting 4. Right after this latest R12 recharge, I can leave it on "2" and it's plenty cold in the car. Of course, the weather hasn't been too bad here in San Diego lately though.
08-23-17, 04:06 PM
#5
RX-7 Bad Ass
Thread Starter
iTrader: (55)
That's one thing I need to address on my car, the fan speed seems SUPER weak. I'm wondering if the fan itself is wearing out or the fan isn't getting enough voltage. I haven't had time to troubleshoot it. On speed 1 you can BARELY feel air coming out of the vents.
Dale
Dale
08-24-17, 05:02 PM
#6
That's one thing I need to address on my car, the fan speed seems SUPER weak. I'm wondering if the fan itself is wearing out or the fan isn't getting enough voltage. I haven't had time to troubleshoot it. On speed 1 you can BARELY feel air coming out of the vents.
Dale
Dale
Trending Topics
09-16-17, 07:09 AM
#9
RX-7 Bad Ass
Thread Starter
iTrader: (55)
As stated above, the compressors are the same. The compressors are made by Denso but both systems use the same one.
Supposedly there is a difference between the R12 and R134a compressors, they are labeled as such on the back. If you're going to use an alternative refrigerant like Dust-Off (R152a) I don't think it really matters which one you have.
If you are going 134a, it's worth flushing out the oil compressor oil and putting in newer 134a compatible oil.
Dale
Supposedly there is a difference between the R12 and R134a compressors, they are labeled as such on the back. If you're going to use an alternative refrigerant like Dust-Off (R152a) I don't think it really matters which one you have.
If you are going 134a, it's worth flushing out the oil compressor oil and putting in newer 134a compatible oil.
Dale
09-16-17, 02:28 PM
#10
La Differance
Thanks, Dale.

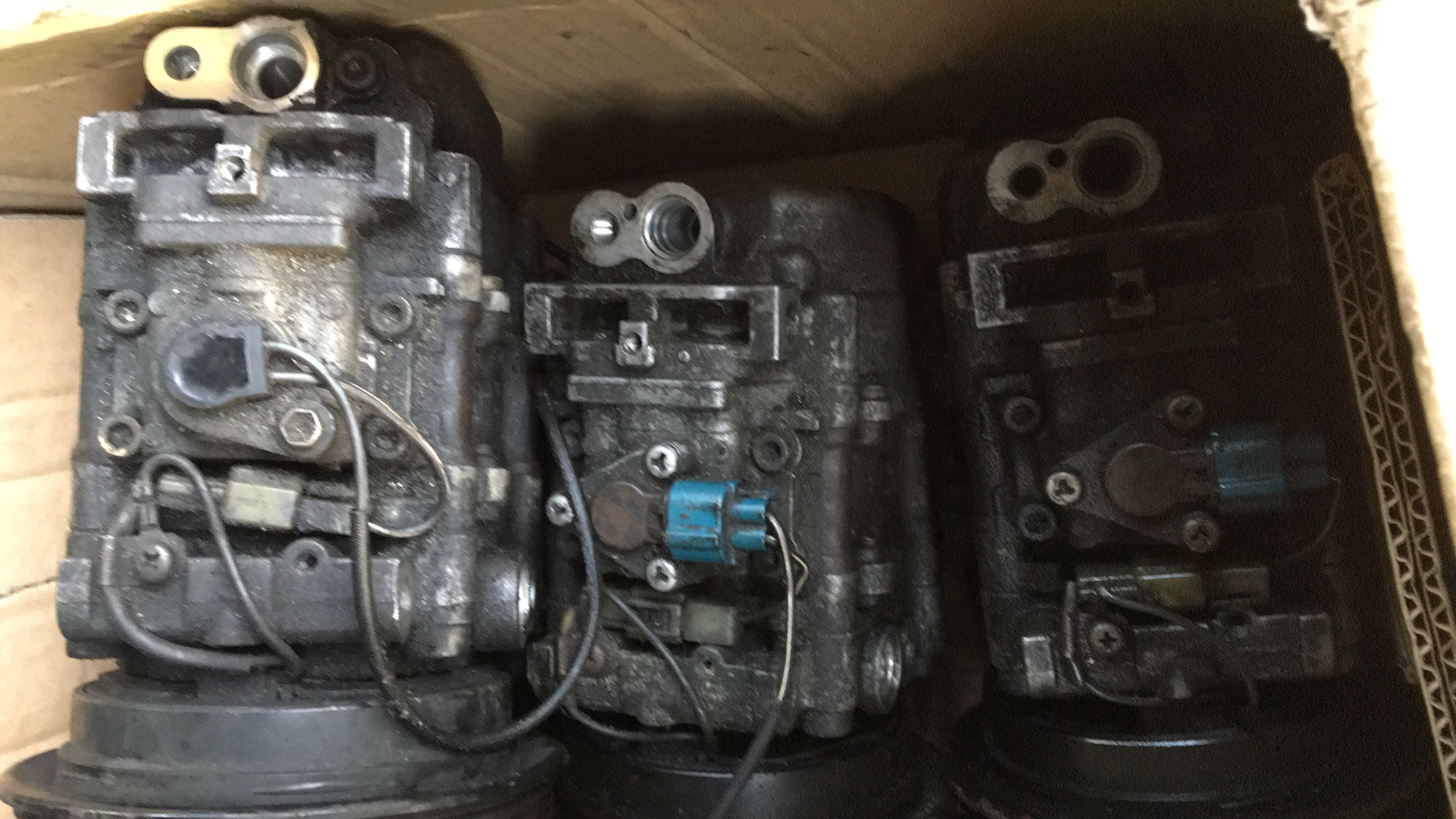

The compressor on the left is an r134 out of my 99 S8. The others are the Denso R12. The line connector ports are different, as you can see. The shop put in an r12 as a replacement and found the S8 lines would not hook up. Luckily a used r134 also came in the box. Which is now hooked up and working. The electrical connector attachment on the top seems different as well.
