What version is your car? Vin number will tell us that.


Not sure where the second pic is looking.

The r/w wire and the blue wire pairing matches the colour code for the right Rear sensor.

The colour for the wire coming from the sensor is not shown in the diagram.



FD3S-110493 is the VIN. It should be the right rear sensor. That pic is taken directly below the seats after I took them out



Yours is a version one car. The wiring diagram wire colour codes should be close to the 1993 USDM diagrams.

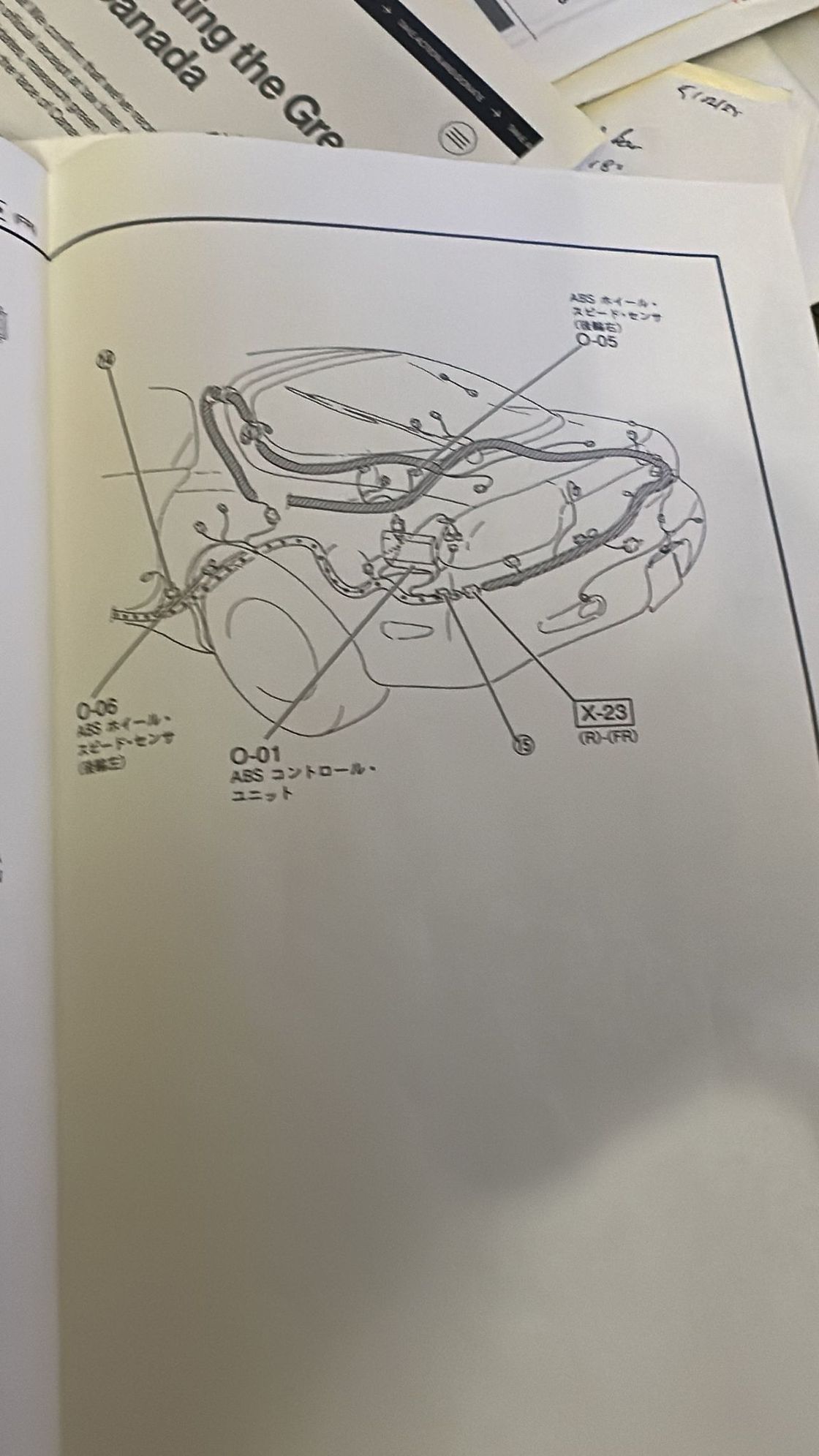

Here is the diagram from the Version One JDM wiring manual dated November 1991. The connecrtor ,you are looking at, is likely O-05. It says one of the wires should be Blue and the other Red/white. . It also shows the wire should have a grounding shield with a red wire leading to a black grounding wire. I am pointing to o-06 in the pic. O-05 is to the left.



That’s exactly the information I’m after. I think you’ve helped me with wiring related issues 3 or 4 times now lol so again, thank you for your time and efforts. Huge help.
