fzkhan7

iTrader: (5)

Hey!
Help required with installing an OEM 99 Spec Wing

1. Which hardware/clips have to be used where I have marked with red circles on the picture.
2. Any templates available for the wing? (closed the holes in my hatch now have to re-drill them)
3. OEM part number of the 4 bolts to install the wing?

cr-rex

iTrader: (114)

Those were just plastic clips. There's only 3 actual hardware peices that hold the wing on. 2 bolts on the outside and the one nut on the inside. You shouldn't need a template since the wing contours perfectly with the shape of the hatch. Measure the bolt location on the wing and then transfer the measurement to the hatch. It will be perfect.

PeloNZ

On a local listing for an OEM new wing, these are the bolts pictured that come with it.

OEM FD 99 wing mounting bolts

fzkhan7

iTrader: (5)

Thanks mate!
Do you know about which clips are supposed to be used on the remaining 2 mounting points?

mkiv98

iTrader: (5)

can the wing be safely installed with 3 bolts instead of 4? I would rather not have to drill an extra hole into my R1 hatch if not needed

fzkhan7

iTrader: (5)

It can!

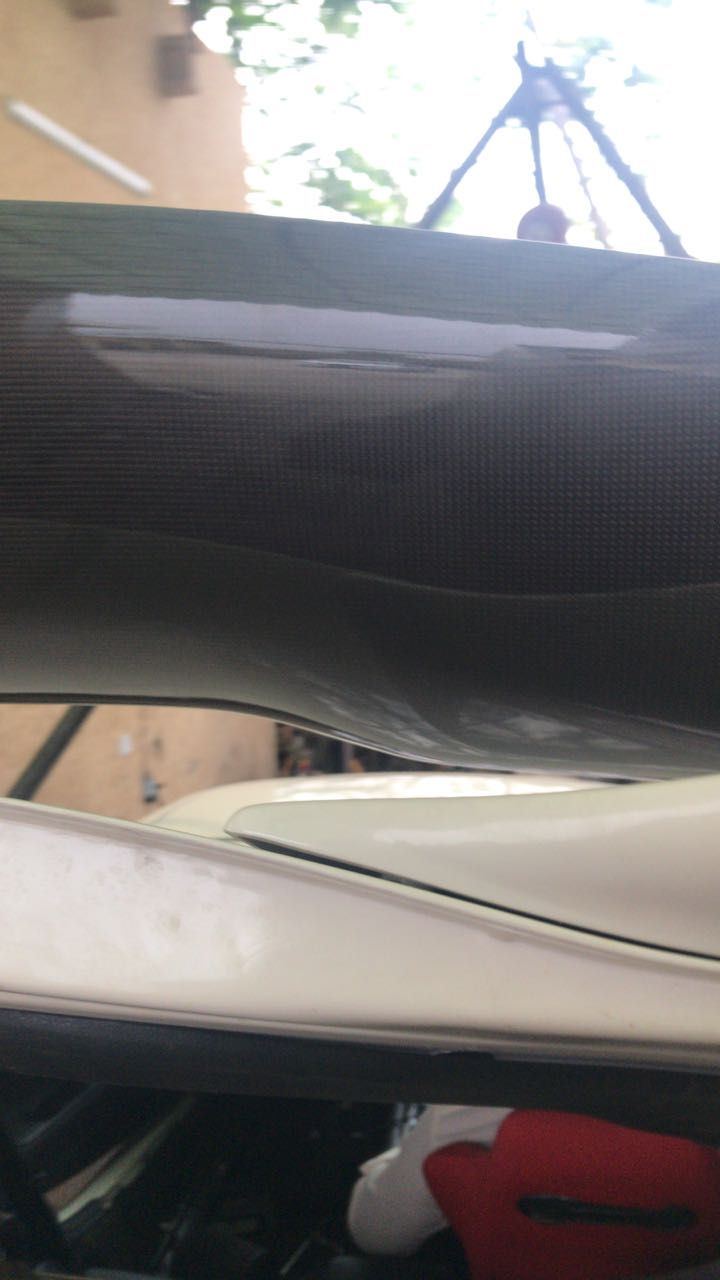

I had it installed with the 4 bolts and 2 nuts previously. I want it with the 4th clip or whatever that is because the wing will not sit flush with the trunk if it's missing that!

For example:

cr-rex

iTrader: (114)

On both of my cars I have it installed without the clips. The only people that notice the 1 or 2mm gap is me..... the owner.
