$150 PC-based Compression Tester

Old 12-27-12, 12:03 AM
  #1
Rotary Freak
Thread Starter
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post
$150 PC-based Compression Tester

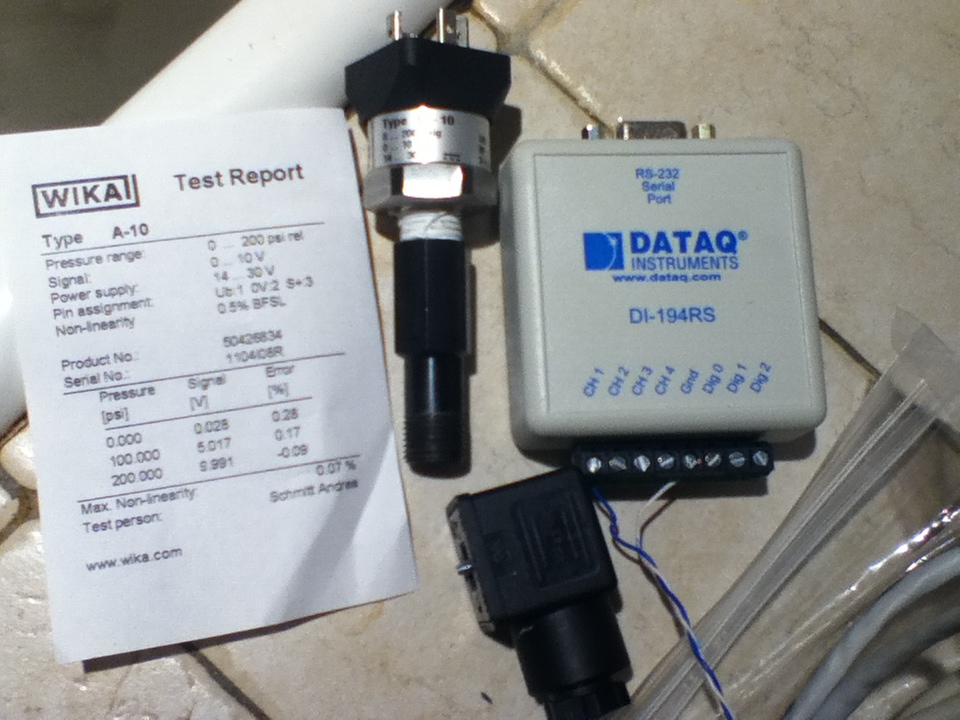

I decided to make a PC-based (Windows 7) compression tester using the entry-level DATAQ (Data Acquisition Products for ANY Application and Budget) acquisition unit and DATAQ software.

I was able to source a 0-10vdc WIKA A-10 transducer on Amazon. Pretty accurate at 0.17 error at 100-psi.

The "key" is the solid-metal spark-plug to NPT adapter, KD Tools 901 Air Holding set, also on Amazon.

I used a 6-foot piece of CAT5e twisted-pair for the cable- no ground shield necessary (floating)

Also, was able to confirm that on a DIN connector, Pin#1 U(b)+ is +12vdc; Pin#2 is a shared ground for -12vdc and signal ground (0V/S-); Pin#3 is signal positive (S+). Pin#4 is cable shield, and is "floating" (e.g., not connected at the DataQ side), but is NOT necessary

All told $150 instead of $300 for a copy of the $1K+ Mazda compression tester.

:-) neil
Attached Thumbnails 0 PC-based Compression Tester-wika-order.jpg   0 PC-based Compression Tester-wika-dataq.jpg   0 PC-based Compression Tester-wika-10-cropped.jpg
M104-AMG is offline
Old 12-27-12, 12:29 AM
  #2
Rotary Freak
Thread Starter
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post

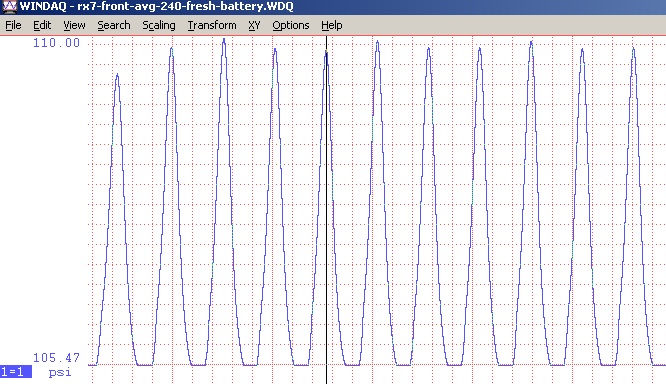

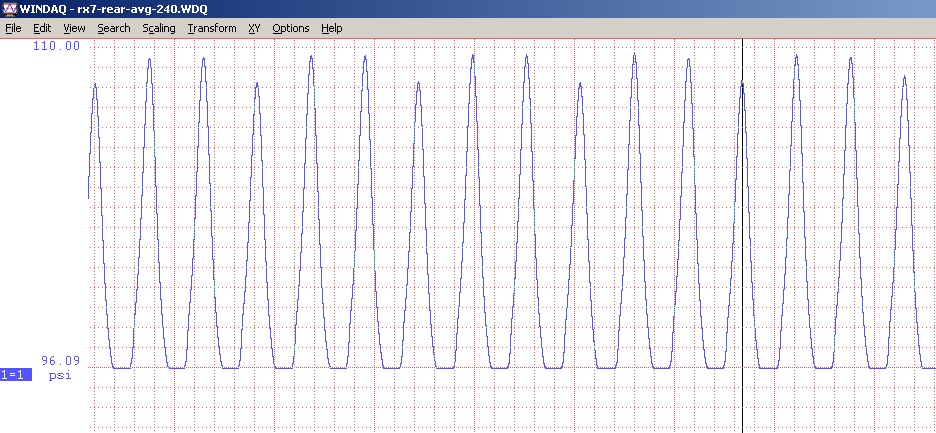

All readings in PSI (average).

Front: 108, 105, 105
Rear: 105, 104, 96
Cold engine, cranked with the largest OPTIMA "Blue" deep-cycle marine battery, just charged.

I am hoping 96 is not a blown apex seal.

:-) neil
Attached Thumbnails 0 PC-based Compression Tester-frontr-average-240.jpg   0 PC-based Compression Tester-rear-average-240.jpg
M104-AMG is offline
Old 12-27-12, 07:31 AM
  #3
The shy megalomaniac
iTrader: (2)

NeoTuri's Avatar

Join Date: May 2003
Location: Atlanta, GA
Posts: 879
Thanks: 0
Thanked 16 Times in 14 Posts
A failed apex seal would give you two low numbers. A side seal would more than likely give you one low value, not that 96 is a large variance from 104.
NeoTuri is offline
Old 12-27-12, 08:45 AM
  #4
Lives on the Forum
iTrader: (4)

David Hayes's Avatar

Join Date: Jun 2002
Location: FL
Posts: 6,218
Thanked 50 Times in 33 Posts
That is really cool Neil. Should offer this as a product.

Thinking of doing any track events soon, barring you taking the engine apart? Also Deals Gap Rotary Rally registration is now open:

http://dealsgaprotaryrally.com
David Hayes is offline
Old 12-27-12, 09:09 AM
  #5
Golf Cart Hooligan
iTrader: (12)

JhnRx7's Avatar

Join Date: Oct 2002
Location: Philadelphia, PA
Posts: 975
Thanked 9 Times in 3 Posts
It already is a product. He just pieced together a kit himself.

***** Rotary-engine Compression Tester System
JhnRx7 is offline
Old 12-27-12, 10:17 AM
  #6
Rotary Freak
Thread Starter
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post
Originally Posted by JhnRx7 View Post
It already is a product. He just pieced together a kit himself.

***** Rotary-engine Compression Tester System
And for the price, that's a GREAT product for a turn-key system.

:-) neil
M104-AMG is offline
Old 12-27-12, 12:04 PM
  #7
Eye In The Sky
iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In Our Heads
Posts: 7,627
Thanks: 0
Thanked 11 Times in 9 Posts
I also built one a few years ago using the same hard/software - Dataq DL-194RS.
But I went one step further.

Did you also buy a very accurate pressure gauge and use it along with an air compressor at around 120 psi to calibrate your system?
If not then you are fooling yourself unless ballpark values are OK.
cewrx7r1 is offline
Old 12-27-12, 12:36 PM
  #8
Rotary Freak
Thread Starter
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post
Originally Posted by cewrx7r1 View Post
I also built one a few years ago using the same hard/software - Dataq DL-194RS.
But I went one step further.

Did you also buy a very accurate pressure gauge and use it along with an air compressor at around 120 psi to calibrate your system?
If not then you are fooling yourself unless ballpark values are OK.
I used the error values on the test sheet (see previous scan) to calibrate, as well as my dry-nitrogen system as a "source" which already has a good regulator for rebuilding my shocks (accurate to a 0.25-PSI).

:-) neil
M104-AMG is offline
Old 12-27-12, 12:46 PM
  #9
Boilermaker!
iTrader: (111)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,364
Thanked 17 Times in 16 Posts
Nice, I got one from Rotary Diagnostics a year ago not knowing that we can build one ourselves.

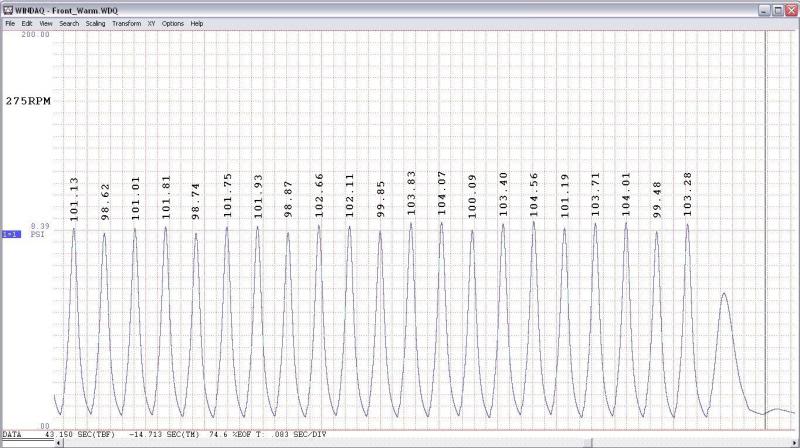

Here's a result of my test, engine warmed up to operation temperature before I did the test.

Front
Name:  Front_Number.jpg
Views: 418
Size:  64.9 KB

Rear
Name:  Rear_Number.jpg
Views: 334
Size:  65.3 KB
ZE Power MX6 is offline
Old 12-27-12, 03:47 PM
  #10
ArmitageFD3S
iTrader: (13)

ArmitageGVR4's Avatar

Join Date: Oct 2002
Location: Herndon, Virginia
Posts: 2,202
Thanked 8 Times in 6 Posts
Nice. Always a big fan of the DIY approach!
ArmitageGVR4 is offline
Old 12-27-12, 04:10 PM
  #11
89GTUs (38k original mi)
iTrader: (1)

scrapp's Avatar

Join Date: Sep 2003
Location: Houston
Posts: 678
Thanks: 0
Thanked 0 Times in 0 Posts
What? No love for Twisted rotors? Cool dude. I get to hang out with him IRL.

TR-01 Rotary Engine Compression Tester
scrapp is offline
Old 12-28-12, 01:53 AM
  #12
Boilermaker!
iTrader: (111)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,364
Thanked 17 Times in 16 Posts
^ Love the TR-01, too bad last time I check there's a wait time on the order.
ZE Power MX6 is offline
Old 12-28-12, 08:32 PM
  #13
500+hp club
5 Year Member
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
pretty sweet units. Id like to pick one of these up so I can get a real time print out for customers as well as a legal document if needed
silverfdturbo6port is offline
Old 12-28-12, 08:41 PM
  #14
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,981
Thanked 110 Times in 97 Posts
Thumbs up

Originally Posted by scrapp View Post
What? No love for Twisted rotors? Cool dude. I get to hang out with him IRL.

TR-01 Rotary Engine Compression Tester
AFAIK, he hasn't offered this product for something like three years now......seems like he needs to be giving US the love

Nice job Neil, can't complain about the price you paid for the components .

I just checked compression on my dad's FD, IRP ported engine circa 2007 (but low miles on the block):



Attached Thumbnails 0 PC-based Compression Tester-r1front.jpg   0 PC-based Compression Tester-r1rear.jpg
GoodfellaFD3S is offline
Old 01-01-13, 10:09 AM
  #15
Going for the win
iTrader: (5)

Dvst8's Avatar

Join Date: Aug 2002
Location: Vancouver
Posts: 925
Thanked 1 Time in 1 Post
Will try building one soon. Thanks!
Dvst8 is offline
Old 01-01-13, 12:29 PM
  #16
Full Member

Join Date: Jan 2003
Location: San Francisco
Posts: 88
Thanked 0 Times in 0 Posts
Originally Posted by M104-AMG View Post
All readings in PSI (average).

Front: 108, 105, 105
Rear: 105, 104, 96

:-) neil
It seems like the bottom part of the curve is clipped by the x-axis and that your numbers might be a little higher if the curve was adjusted to get rid of the clipping.
doctorzaius is offline
Old 05-22-14, 03:59 AM
  #17
Junior Member

Ian_D's Avatar

Join Date: Oct 2013
Location: London, UK
Posts: 38
Thanks: 0
Thanked 0 Times in 0 Posts
Although this a year or 2 old I have a question on the principles.

The printout suggests that the tranducer's pressure readings are gauge pressure (in other words, it reads 0 in open air).

The absolute pressures measured would then be the transducer's output plus atmospheric pressure of 1.0 kgf/m2.

Mazda give limits for the values on their compression tester readout. However, I have found nothing definitive to tell me whether, when using a home-made tester, I should be comparing gauge or absolute values (normalized as necessary) against Mazda's limits.

I assume that I should use gauge rather than absolute pressures with such a home-made tester. However, getting this right is crucial to the results and I can't find anything from a reliable source.

Can anyone help with a definitive answer, preferably with a source, on whether gauge or absolute pressure should be compared (after suitable normalization to 250 RPM) against Mazda's figures?
Ian_D is offline
Old 05-22-14, 12:36 PM
  #18
Senior Member
iTrader: (5)

Join Date: Dec 2011
Location: iowa city
Posts: 310
Thanks: 0
Thanked 0 Times in 0 Posts
you should make a tutorial of how to make one. awesome job
edgars95rx7 is offline
Old 12-20-16, 04:55 PM
  #19
Newbie

Join Date: Mar 2005
Location: North Carolina
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
I know that this is 4 years since you posted this, but I just ordered all of the pieces from DataQ and Amazon to build my own. It looks simple enough to do and, after looking at the link for RDS that someone else posted, your approach looks identical in concept.

I have an 1984 GSL (bought with 5K miles and now has 188K...2nd engine at 158K that wasn't really needed) and it's not running right. It had been sitting for a while and it just has no power at all. I played with the carburetor (although I need to rebuild it completely) and replaced the ignition components (after 30K miles and they were ugly), but it still has no pop at all. The burn on the 2nd rotor plugs was not nearly as clean as for the 1st rotor. I also considered that something might have taken nest in the exhaust system, but it revs perfectly standing still, even though idle is a little uneven. I figure testing the compression is the next step to diagnosing the problem. If one or more of the seals is leaking, the test will tell the tale. I'm not burning oil so, I'm at a bit of a loss. Hence the C-test.
Thanks for your idea and wish me luck.
Eric
ericdash is offline
