m0bmanfd

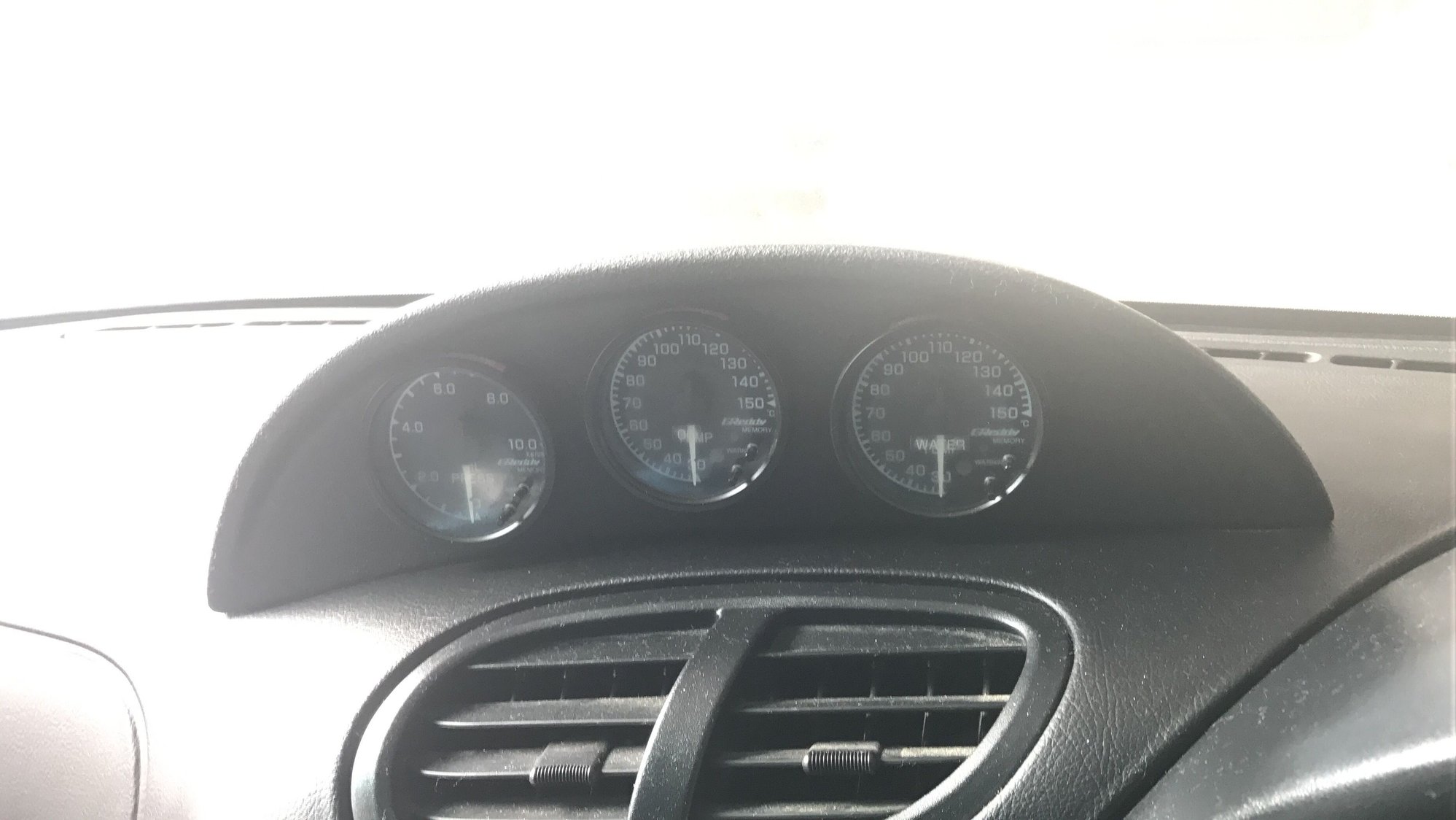

so my fd came with a bunch of gauges from japan and I dont know anything about them, I always like to start by knowing the part number or model of things so I can move on from there

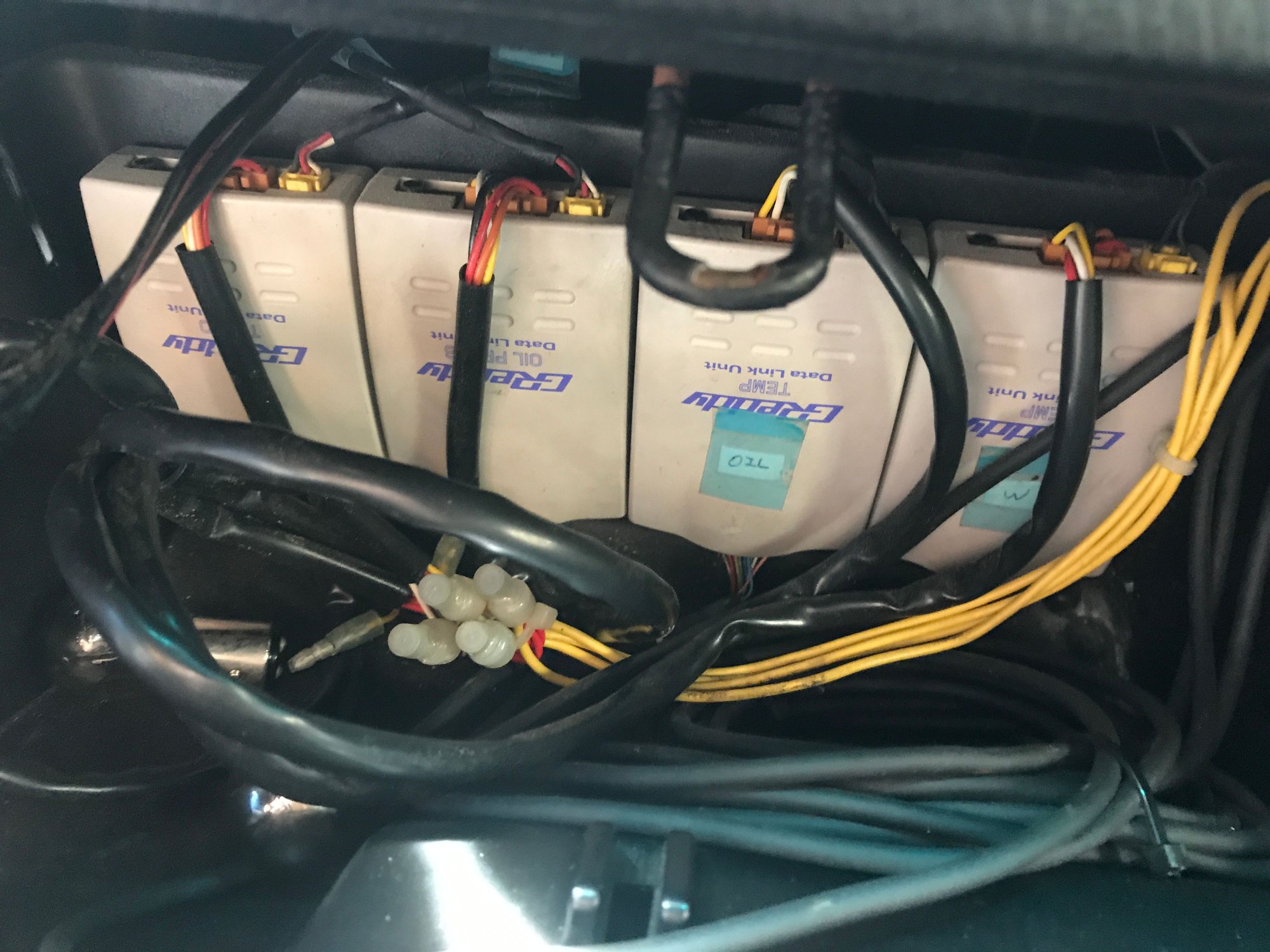

It also came with these data link units

Any information would be greatly appreciated!

thanks in advance.

SonicFD

iTrader: (17)

Greddy Warning gauges.
Early 2000s. Been discontinued for a while. They can recall the peak value.

m0bmanfd

thanks very much if youd happen to have a wiring diagram or know where I can find one 😍😍

m0bmanfd

anybody else that might want to chime in with an answer or a wiring diagram is more than welcome to do so

eslai

Those are the old 60mm GReddy gauges from the early-2000's. I still have one in my garage, silver face w/orange illumination. EGT.

I don't think I have a manual, and details are hard to find online. The harness should be the same for all the data link units. I found the one attached here for the temp gauge.

BTW, they were great gauges for the time. Stepper motors, digital. Not cheap.

DaleClark

iTrader: (55)

All the manuals are on Greddy's website -

GReddy

Those are REALLY nice gauges, they look super clean, have quality sensors and hardware, and are super accurate and reliable. It's a LOT of gauges, though .

They have adjustable peak hold/warning which is super nice too.

Dale

m0bmanfd

thank you bro, about 2 hours ago I got into the website and found all the pdfs👌

eslai

Oh. You'd think I would've tried that. LOL

m0bmanfd

Regardless your help was very much appreciated
