Connector part #'s for neutral switch, reverse switch, 1st, 2nd gear switch?
#1
Connector part #'s for neutral switch, reverse switch, 1st, 2nd gear switch?
Has anyone researched and found the part #'s for the ECU wiring harness side (car side) connectors for the reverse, neutral, and the 1st/2nd gear sensors? This is for an auto to manual conversion and ideally I'd like to be able to source the proper connectors when I wire it out. The connectors pictured below are the opposite of what I'm looking for since these are the transmission side connectors.
Thanks!
1st and 2nd gear connector at transmission1st gear switch connections are the two blue wires.
2nd gear switch connections are the two green wires.
Note that what appears as a middle row is not connected to anything.

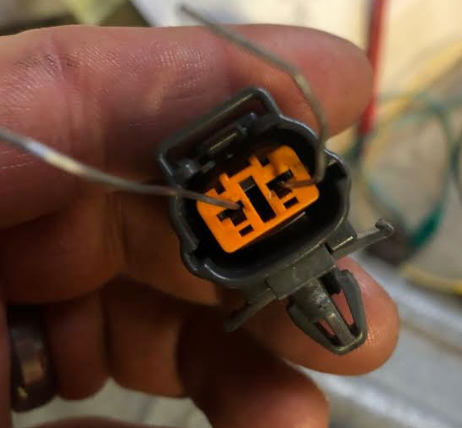

Neutral Switch connection on transmission (orange plug)
Reverse connector at transmission (whitish / grayish on one transmission, yellowish on another)
Thanks!
1st and 2nd gear connector at transmission1st gear switch connections are the two blue wires.
2nd gear switch connections are the two green wires.
Note that what appears as a middle row is not connected to anything.
Neutral Switch connection on transmission (orange plug)
Reverse connector at transmission (whitish / grayish on one transmission, yellowish on another)
Last edited by dcarroll95; 12-05-19 at 07:25 PM. Reason: added more detail
The following users liked this post:
moconnor (07-21-20)
The following users liked this post:
dcarroll95 (12-06-19)
#3
JM1FD since 1999
iTrader: (15)
Links to connectors below
1st and 2nd gear connector at transmission
1st gear switch connections are the two blue wires.
2nd gear switch connections are the two green wires.
Note that what appears as a middle row is not connected to anything.
Looks like https://www.corsa-technic.com/item.p...ategory_id=109, with mating connector https://www.corsa-technic.com/item.php?item_id=554
Neutral Switch connection on transmission (orange plug)
Looks like https://www.corsa-technic.com/item.p...ategory_id=147, with mating connector https://www.corsa-technic.com/item.php?item_id=700
Reverse connector at transmission (whitish / grayish on one transmission, yellowish on another)
Looks like https://www.corsa-technic.com/item.p...ategory_id=125, with mating connector https://www.corsa-technic.com/item.php?item_id=553
1st and 2nd gear connector at transmission
1st gear switch connections are the two blue wires.
2nd gear switch connections are the two green wires.
Note that what appears as a middle row is not connected to anything.
Looks like https://www.corsa-technic.com/item.p...ategory_id=109, with mating connector https://www.corsa-technic.com/item.php?item_id=554
Neutral Switch connection on transmission (orange plug)
Looks like https://www.corsa-technic.com/item.p...ategory_id=147, with mating connector https://www.corsa-technic.com/item.php?item_id=700
Reverse connector at transmission (whitish / grayish on one transmission, yellowish on another)
Looks like https://www.corsa-technic.com/item.p...ategory_id=125, with mating connector https://www.corsa-technic.com/item.php?item_id=553
The following 2 users liked this post by TG888:
DaleClark (12-09-19),
dcarroll95 (12-06-19)
#4
THANK YOU THANK YOU!!!! Wow - I saw the first post this morning, and was doing my usual routine before I started searching, and now I see you've done the work for me. I'm not sure I would have ever found them on that website. And the pricing is amazing - around $3 per connector compared to the $30-50 I've seen for other pigtails when I worked other projects. I just pulled the auto transmission off yesterday, and started to tackle a relatively clean way of running all the sensors, and this is a HUGE HUGE HUGE help. God bless our forum.
#5
JM1FD since 1999
iTrader: (15)
You are most welcome. I also utilize the same approach by using oem connectors only when working on cars.
Over the years, I've spent a good amount of time researching connectors on the FD3S chassis to either restore or replace. There are also several good connector threads on this forum. Most Mazda connectors from the 90's are from Sumitomo, Tyco/AMP/TE or Yazaki.
Best of luck with your auto to manual swap!
Over the years, I've spent a good amount of time researching connectors on the FD3S chassis to either restore or replace. There are also several good connector threads on this forum. Most Mazda connectors from the 90's are from Sumitomo, Tyco/AMP/TE or Yazaki.
Best of luck with your auto to manual swap!
#6
Eats, Sleeps, Dreams Rotary
iTrader: (14)

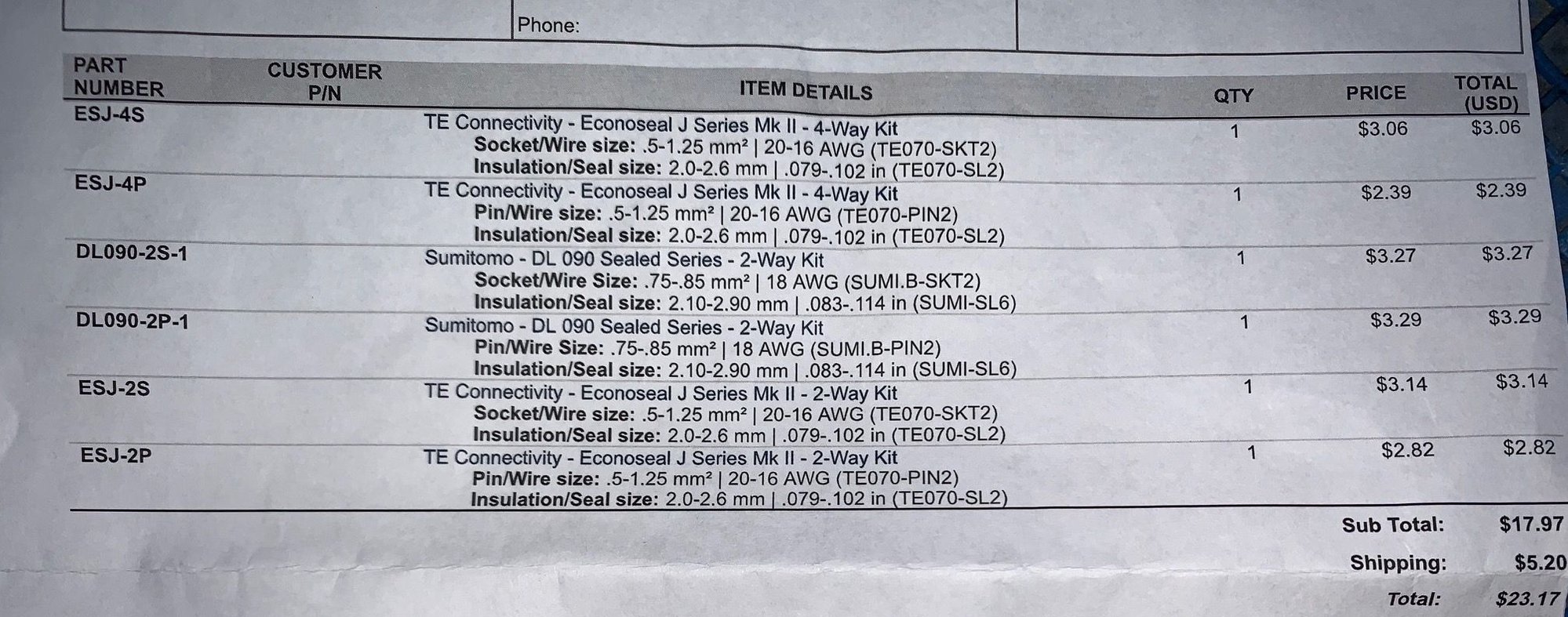

I am about to order these connectors and noticed that pin/wire size and insulation/seal size options need to be selected on the Corsa site. The options are 6-20 or 20-24 AWG and 1.4-2.4mm or 2-2.6mm, respectively.
Any idea which options apply to our cars?
Any idea which options apply to our cars?
Trending Topics
#8
Eats, Sleeps, Dreams Rotary
iTrader: (14)
Cheap, yes - but I just noticed that several of the connectors have three wire and insulation size options - giving a total of 9 possibilities (3^2) for these connectors. (Some wire sizes may preclude some insulation sizes and vice versa, though I have no clue there.) Numbers start adding up at that point!
#10
Rotorhead for life
iTrader: (4)
#11
When I did the conversion I added these connectors to the existing stock wiring from the auto ECM harness and went with the 20-24 AWG and the 1.4-2.4mm. It fit great. If you're doing an auto to manual conversion, I'm writing a post detailing every cut and jumper that I did for a very clean conversion that even keeps 1st/2nd gear switches working. It's not very hard to do and I spent a lot of time researching the cleanest way to do it.
