Dak

I was looking at an FD alt. thread and saw mention that a 626 alt. works as well. Which year ranges? Looking on Rock Auto and Autozone it looks like the 95 V6 626 is identical to the FD save for it is only 90 amps and is cheaper. Can get a new 626 for what a reman fd costs. Also if IIRC fd alt on a S5 is plug and play as far as electronics go. I know I have to sort out the pulley on either the fd or 626. Thanks.

clokker

iTrader: (2)

IIRC, mine is off a similar vintage 626 and the wiring is indeed plug-n-play on a S5.
I pulled mine from the junkyard, rolled down the road to Autozone where it tested at 110a...for whatever that's worth.

Dak

Looking at Rock auto it looks like 1993-2002 626 used the same part#. I was off on price actually. New 626 is $15 to $20 cheaper than a reman FD alt. and only like $6 more than a new S5, so it's looking like 626 here I come.

My alt. died and the one I put on from my parts car's output is only 12.9v even at say 3k rpm so I'm on the hunt to replace it.

unek87

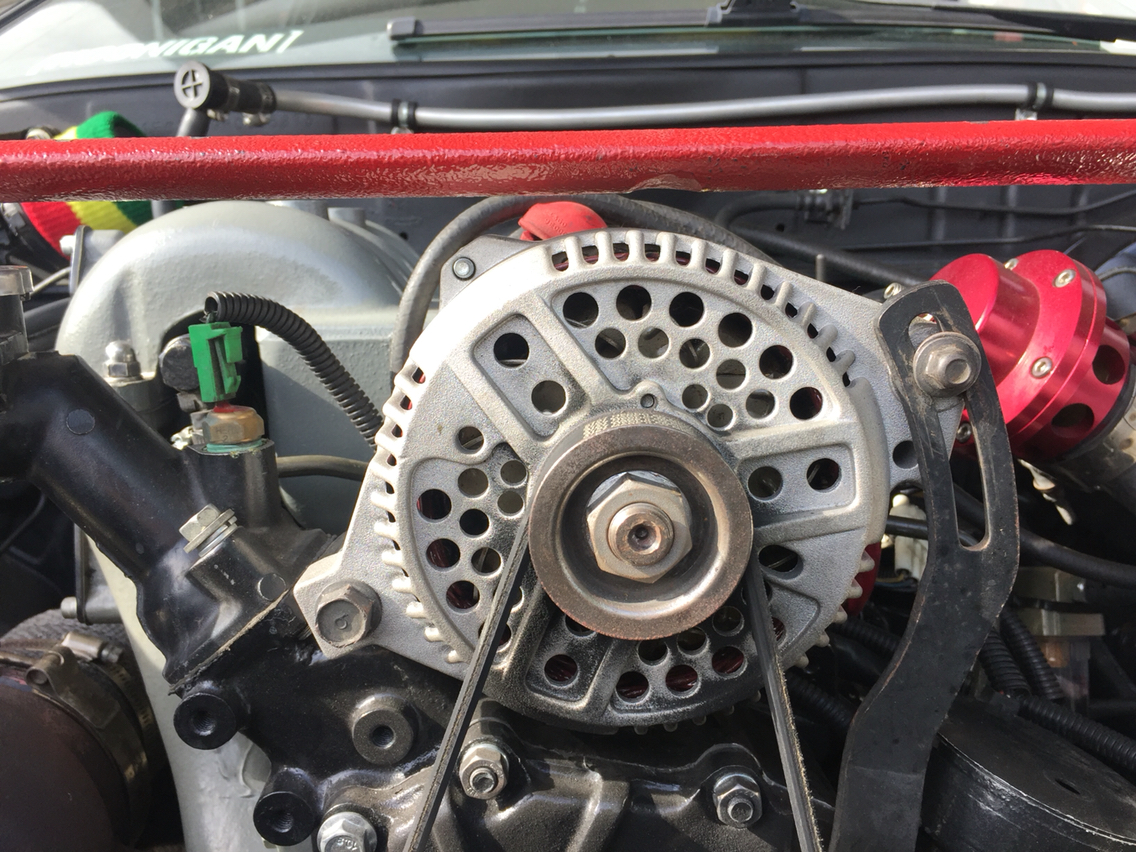

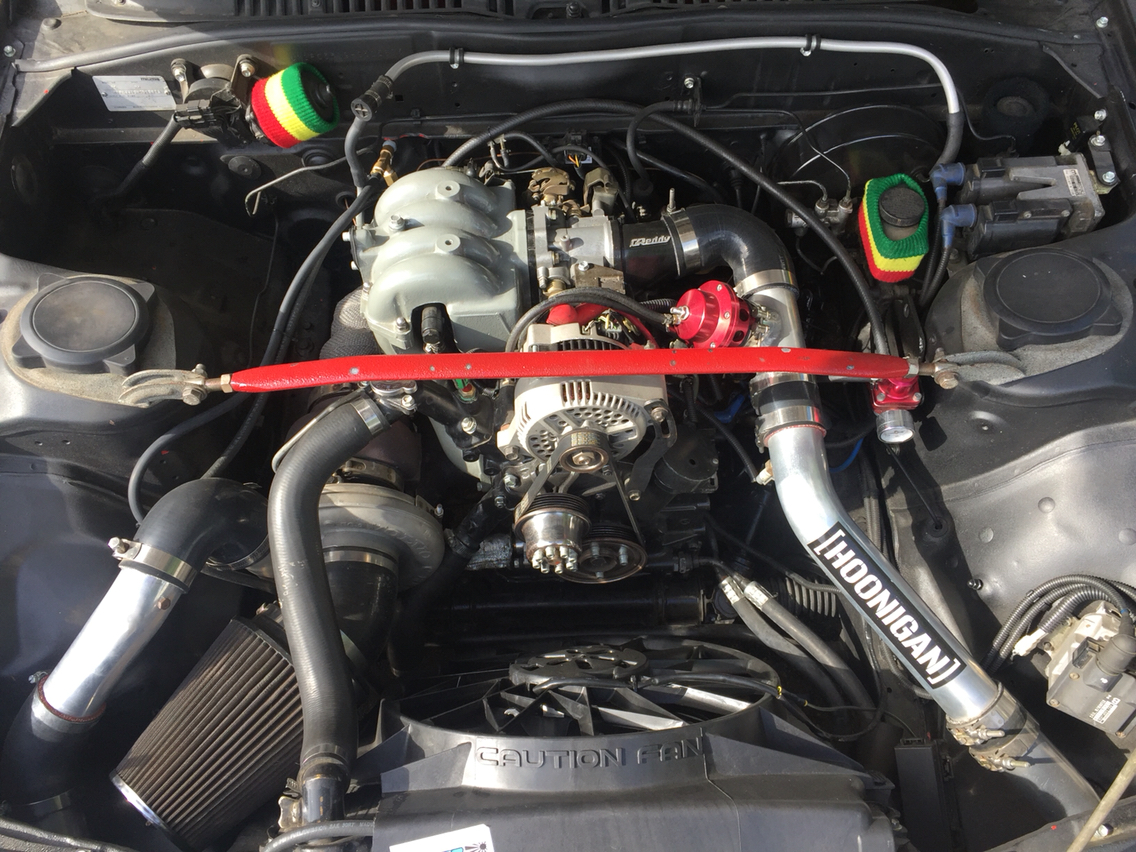

Why not just go Taurus then . Get 130amp out of them . And are cheaper ( for me through work anyway) . If your looking for the best bang for the buck that's what I would do . Here's mine with the comso serp pulley set up

j9fd3s

iTrader: (3)

Mazda uses the same wiring on basically every alternator from 81-88, and then 89+. the only gotcha with the 99+ up units is that they are externally regulated

clokker

iTrader: (2)

Unlike the Taurus unit, the 626 bolts on with no mounting issues.

KompressorLOgic

iTrader: (6)

man the Taurus one is so ugly

clokker

iTrader: (2)

I wasn't denigrating the Taurus part, merely pointing out that it does not bolt directly on like the 626 alternator does.

Dak

I thought about it but really want something more plug and play. I like that belt setup though. Maybe one day I'll try to piece something together.

This is why I may use the 626. I don't want to have to spend any time modifying anything other than maybe my pulley, but Mazdatrix has an off the shelf option for that, and it comes in pretty colors( if the 626 shaft is the same 17mm shaft dia. as the FD.

clokker

iTrader: (2)

It is.

j9fd3s

iTrader: (3)

they must have a chart of AMPs to belt torque to alternator shaft size, because they all pretty much fall in line with each other. or if you read that the other way the V belt is ok good up to a certain number of amps, which would be around 80ish

unek87

I actually didn't have to do anything besides find a bigger spacer and longer bolt . Stock adjuster slider . There's only been a few people that rotated the Taurus alt like me . Most weld new brackets which works just as good I just wanted something that was easy to swap out and a good upgrade from the stock s4 80 .

jackhild59

iTrader: (7)

Pick n pull salvage yards are full of this era 626

clokker

iTrader: (2)

Indeed, that's where I acquired mine 4 or 5 years ago.
For $25.

I tested it just a few days ago after installing my "new" engine...
-Battery resting voltage (7 year old Optima battery)- 12.5v
-Battery charging voltage - 14.4v

Dak

I guess I should've went to the junkyard but I've had so much going on last week and this week I didn't have the time. I got one coming from Rockauto though.

unek87

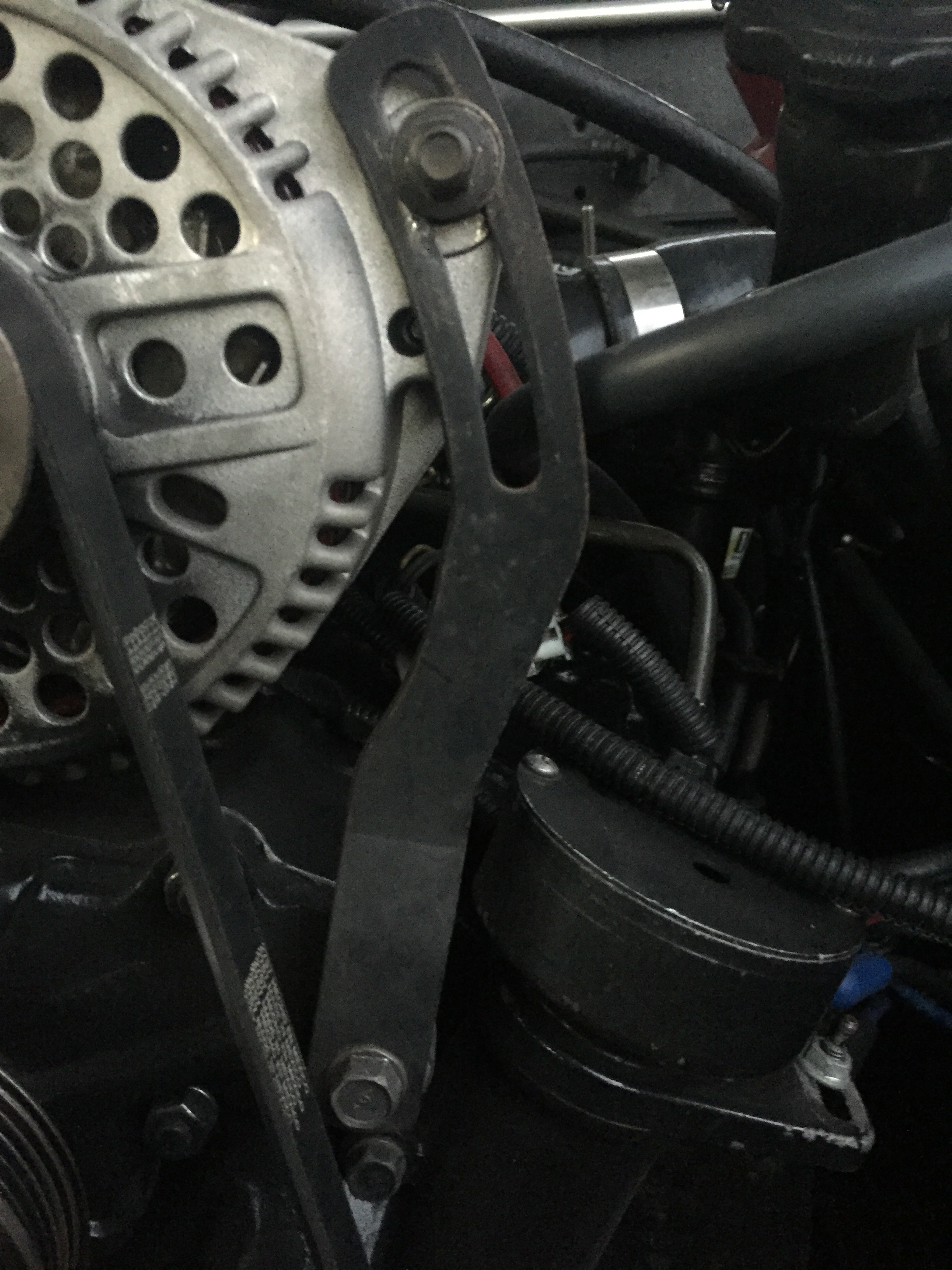

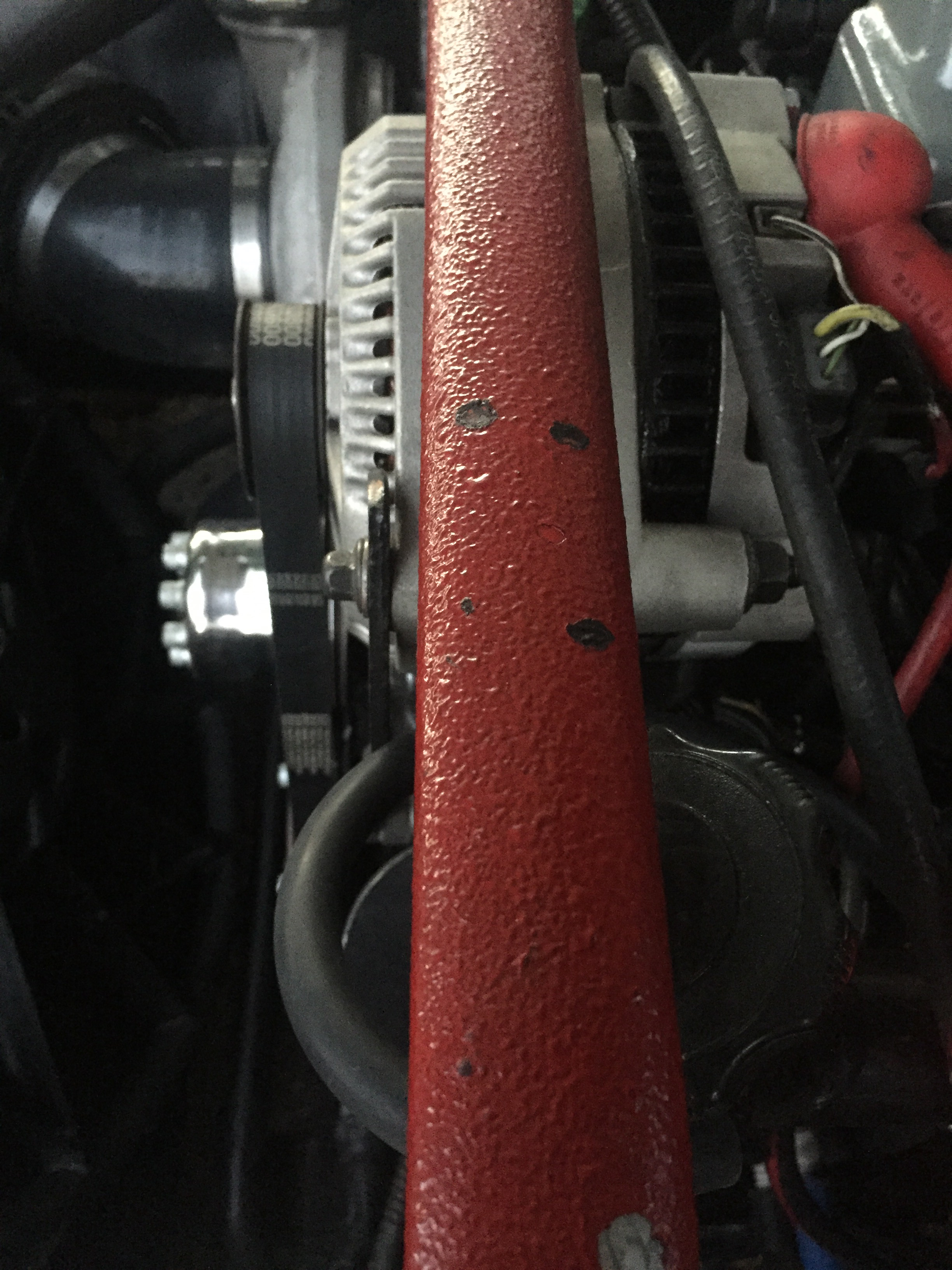

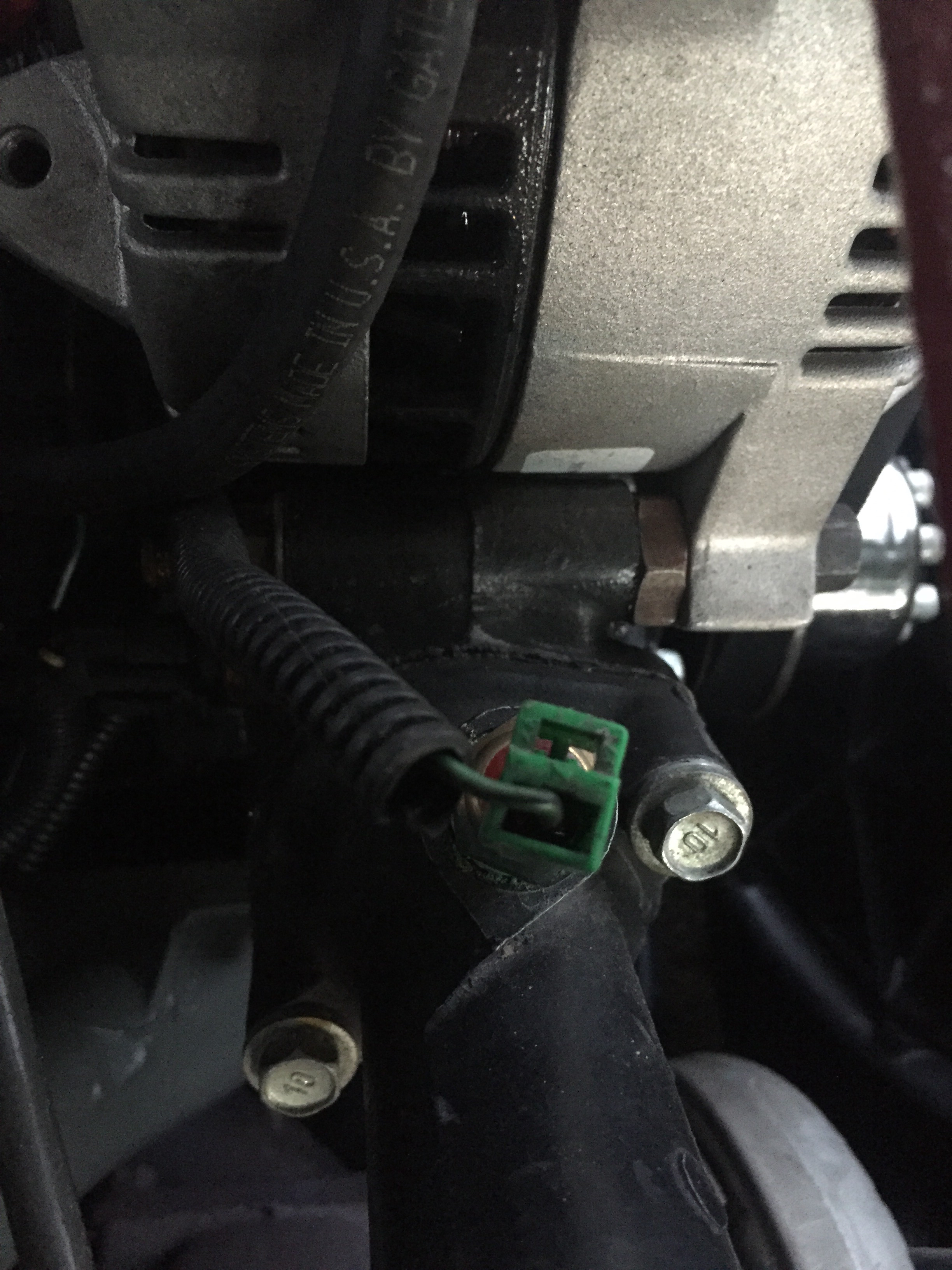

Just a pic from the side for possibly future mod
So people see what I'm saying .not trying to steal thread , sorry op .

fc323

[

fc323

Your catch is that you dont have a v band, you have serpentine.

i had to shave the housing on mine just to keep the v band

unek87

I see . Didn't think about that . I got my pulley setup with fd alt to upgrade from the s4 v belt a few years back . Well the alt was bad from the jump . So when I put this Taurus alt on the pulley fit already on the shaft .

Dak

I got my alternator and installed it over the weekend. Ran into one issue but I don't know if it is because it was a new one and not an oem part. The post for the B terminal because it came out and ran like a Z shape across the back hit my intake manifold. I just swapped it with the straight one from my stock one and then everything went together fine. I used the Mazdatrix pulley. Once I get the pics. off my phone I'll post them up either here or I may do a how to thread.

Dak

oneI guess I should of went to the junkyard. The Remy one from Rockauto has died. V6 MX6 uses the same one according to car-part.com. Picking one up from the junkyard tomorrow. I still need to post pictures.

Niyeaux

This might be a dumb question, but what's the purpose of this upgrade? What's different between the stock FC alt and the FD/626/MX-6/whatever ones?

Dak

The output current is higher on the FD/626 alt. The FD is 100 amps. 626 is 90 amps. The S5 is 80 amps and the S4 is 70 amps. S4 is not plug and play like the S5 though.

Niyeaux

Ah, ok. I have an S4 so I guess I'm out of luck on that one.

Dak

No. People put them on the S4 as well. You'll just have to search to find out how as I don't know the details as I have a S5. It's the plug on the alternator that is different so something has to be rewired. There's a wiring diagram in a thread on here somewhere. As far as I know it bolts on just fine.
