wiring question
I installed the microtech on my car, but now since I removed the harness, there is no wires or clip for the back of the alternator. Where do I have to run these wires to ?? Is it part of one of the 2 faded yellow/orange plugs right next to the computer??
05-24-05, 03:38 PM
#2
Passing life by
The exciter wire goes to the emishions harness same as the windshield wiper motor. Hold on and I will go get you the pin number.

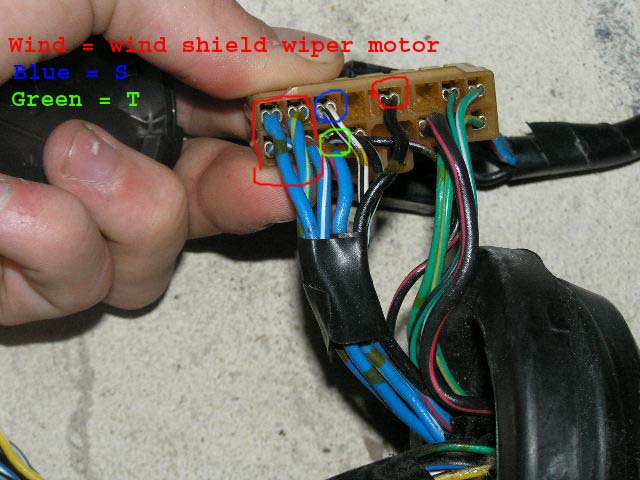

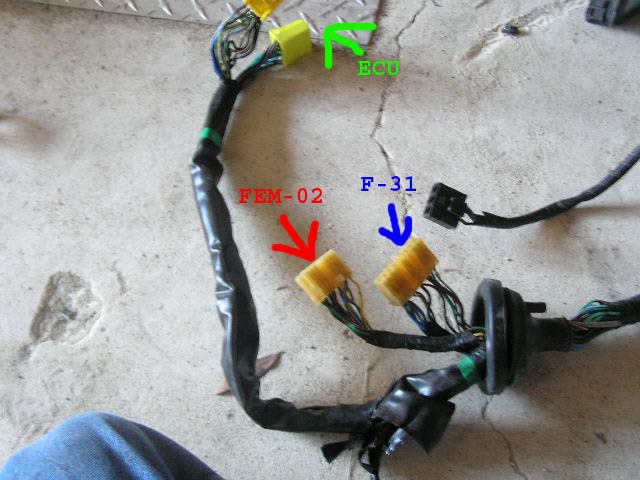

Ok im back. the plug you are concernd with is calld F-31 it is the emishions harness. This is the large faded yellow one. The wire that is at the top of the clip for the alt is S and the bottum is T

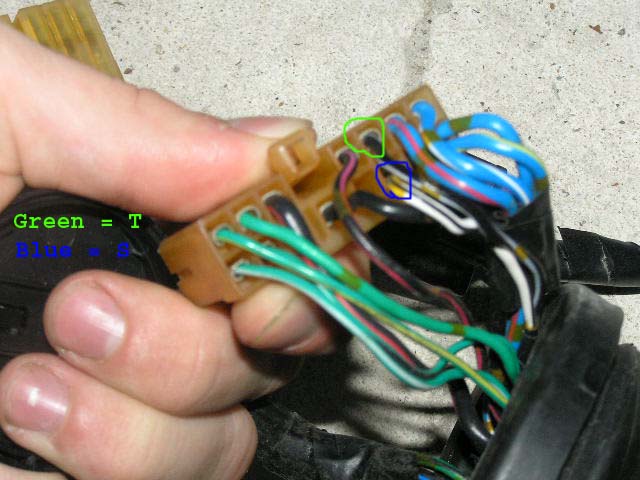

So per the FSM you want harness F-31 wires S and T. In lamens terms unplug the emishions plug stareing into the pins from the front not the wire ends and the clip pointing up you need the third whol to the right going left to right as S and the one directly below it is T.
Hope this helps.
Ok im back. the plug you are concernd with is calld F-31 it is the emishions harness. This is the large faded yellow one. The wire that is at the top of the clip for the alt is S and the bottum is T
So per the FSM you want harness F-31 wires S and T. In lamens terms unplug the emishions plug stareing into the pins from the front not the wire ends and the clip pointing up you need the third whol to the right going left to right as S and the one directly below it is T.
Hope this helps.
Last edited by iceblue; 05-24-05 at 03:49 PM.
05-24-05, 06:19 PM
#3
BOOSTED Vert
Thread Starter
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by iceblue
The exciter wire goes to the emishions harness same as the windshield wiper motor. Hold on and I will go get you the pin number.
Ok im back. the plug you are concernd with is calld F-31 it is the emishions harness. This is the large faded yellow one. The wire that is at the top of the clip for the alt is S and the bottum is T
So per the FSM you want harness F-31 wires S and T. In lamens terms unplug the emishions plug stareing into the pins from the front not the wire ends and the clip pointing up you need the third whol to the right going left to right as S and the one directly below it is T.
Hope this helps.
Ok im back. the plug you are concernd with is calld F-31 it is the emishions harness. This is the large faded yellow one. The wire that is at the top of the clip for the alt is S and the bottum is T
So per the FSM you want harness F-31 wires S and T. In lamens terms unplug the emishions plug stareing into the pins from the front not the wire ends and the clip pointing up you need the third whol to the right going left to right as S and the one directly below it is T.
Hope this helps.
