Will a VW 1.8T Stock BOV work for my n/a to Turbo conv.
#1
Senior Member
Thread Starter
Join Date: Sep 2005
Location: NJ
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Will a VW 1.8T Stock BOV work for my n/a to Turbo conv.

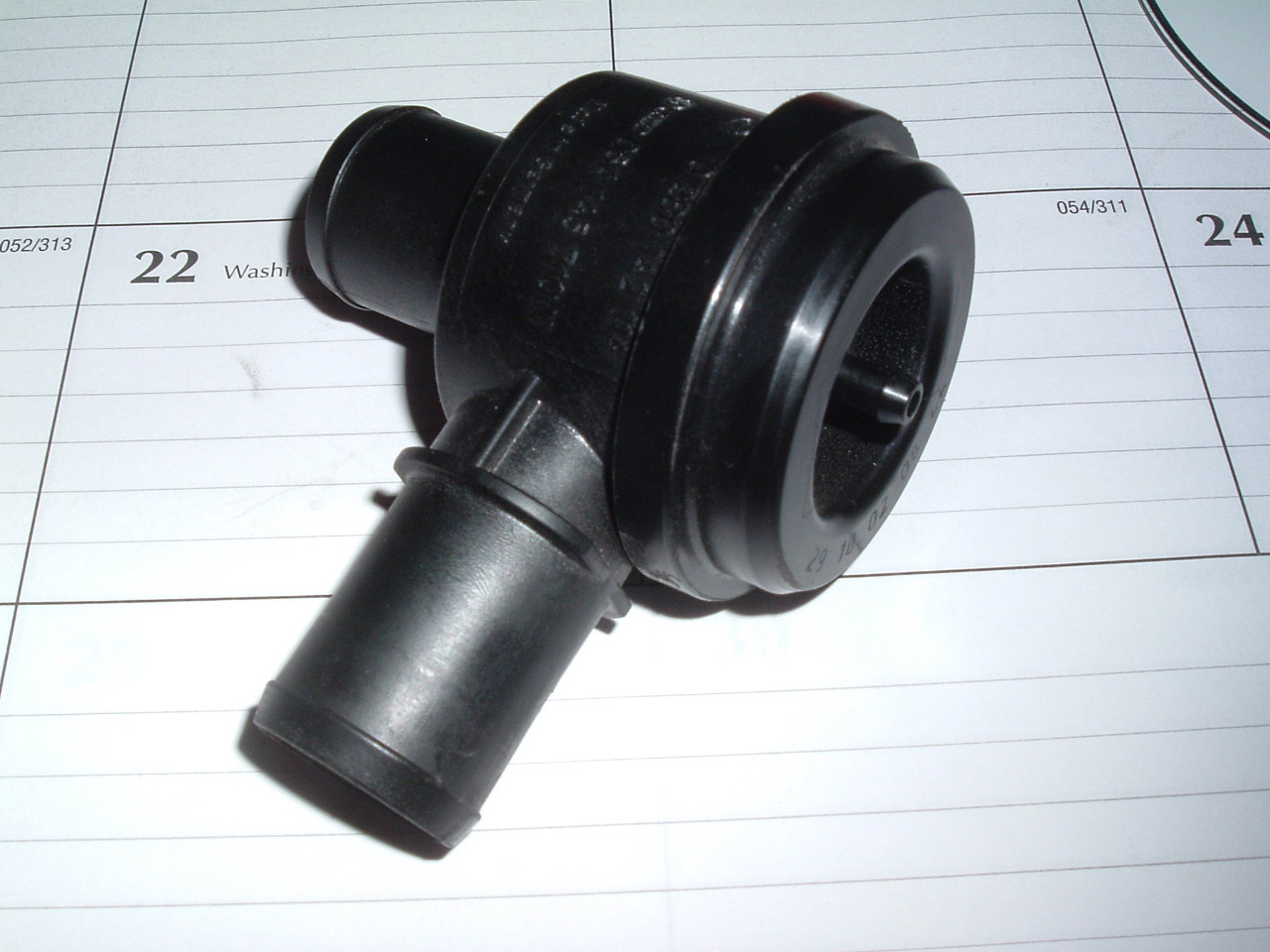

Im in the process of getting all the parts together for my turbo swap and came to the point of buying a bov. My friend had his stock 1.8T bov lying around and i was wondering if it would work ok and not cause any problems as long as i plumb it like stock.
*edit: Not planing on running much higher than stock boost.
*edit: Not planing on running much higher than stock boost.
#3
Senior Member
Thread Starter
Join Date: Sep 2005
Location: NJ
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Ok well the 1.8t runs about 6-7psi stock but my friend was running this bov on about 20psi for a week or so and it held fine. So i dont think that the stock turbo on a 13bt should pose a threat.
#5
Senior Member
Thread Starter
Join Date: Sep 2005
Location: NJ
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
what the diff. between a diverter valve and a bov on an operation stand point? If it free and works i wouldn't care if played the god father theme when i let off the gas.
#6
Senior Member
Thread Starter
Join Date: Sep 2005
Location: NJ
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
i found this and it seems that a Diverter valve is just a fancy name for a recirculated BOV. So as long as our cars use a recirculated BOV which im pretty sure it does then there shouldn't be a problem right?
Here is the article:
Blow-Off vs. Diverter Valve?
I have a question maybe you can help me with. I noticed a lot of German cars (Audi, VW, Porsche, etc.) that are turbocharged have diverter valves as opposed to blow-off valves. I understand that a diverter valve "diverts the excess boost" back to the intake tract as opposed to blowing it off to the air like a blow off valve. Because of this the diverter valve is fairly quiet, letting out only a slight "whoosh.” Is that the only difference or are there any specific performance benefits to either one? Currently I have a 2000 Audi TT Quattro, and yes I do have an aftermarket DV (Stratmosphere), but I was just wondering.
Vanderbill King II, SSgt, USAF
via the Internet
As you mentioned, the main purpose of either the diverter valve or blow-off valve is to let off excess boost. The primary reason that Audi, VW and Porsche use a diverter valve is due to their use of the Bosch Motronic engine management system and a Mass Air Flow sensor. It’s programmed to expect the “extra air” which is rerouted back into the intake tract and adjusts the air/fuel mixture based upon this. Therefore it’s simply the design of the system and there is no real performance benefit to one or the other.
Here is the article:
Blow-Off vs. Diverter Valve?
I have a question maybe you can help me with. I noticed a lot of German cars (Audi, VW, Porsche, etc.) that are turbocharged have diverter valves as opposed to blow-off valves. I understand that a diverter valve "diverts the excess boost" back to the intake tract as opposed to blowing it off to the air like a blow off valve. Because of this the diverter valve is fairly quiet, letting out only a slight "whoosh.” Is that the only difference or are there any specific performance benefits to either one? Currently I have a 2000 Audi TT Quattro, and yes I do have an aftermarket DV (Stratmosphere), but I was just wondering.
Vanderbill King II, SSgt, USAF
via the Internet
As you mentioned, the main purpose of either the diverter valve or blow-off valve is to let off excess boost. The primary reason that Audi, VW and Porsche use a diverter valve is due to their use of the Bosch Motronic engine management system and a Mass Air Flow sensor. It’s programmed to expect the “extra air” which is rerouted back into the intake tract and adjusts the air/fuel mixture based upon this. Therefore it’s simply the design of the system and there is no real performance benefit to one or the other.
Trending Topics
#8
Full Member
Join Date: Dec 2005
Location: Anniston, AL
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Well, I own a 1.8T and we HAVE to have a diverter valve , and you won't really get any noise out of it.
You could have the bottom end vent into the atmosphere if you would like, its up to you, but if you're going after that sound,,,,buy a BOV.
and mine doesnt go *PINK*, it goes shhhhhh
You could have the bottom end vent into the atmosphere if you would like, its up to you, but if you're going after that sound,,,,buy a BOV.
and mine doesnt go *PINK*, it goes shhhhhh
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
It's a recirculated valve so it's output will have to be plumbed back into the intake tract after the AFM. Most recirculating BOVs leak a little at idle. But as long as it will hold the pressure, it will work fine.
#10
Senior Member
Thread Starter
Join Date: Sep 2005
Location: NJ
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Aaron Cake
It's a recirculated valve so it's output will have to be plumbed back into the intake tract after the AFM. Most recirculating BOVs leak a little at idle. But as long as it will hold the pressure, it will work fine.
Good.
#11
Drift Made To Order
Join Date: Apr 2003
Location: Salt Lake City, Utah
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by driftin8ez
anyone have any opinions on if it will work?
