What are the differences between the s4 and s5 radiator? Besides the brackets? So I know what I'm looking for.



S5 has the extended neck and overflow on the driver's side. S4 has no neck and the cap is in the center. It is possible they put the wrong radiator in the box since everything seems to be wrong with the one you received.



I think I figured out the problem.... The Previous owner put a S4 Radiator in place of the factory s5 one along with the brackets. Me in my stupidity didn't even think of that option. but from what you said, my cap is in the middle under the air vent. I wouldn't even think they would be interchangeable. I still am a little annoyed that I would have to change the air box setup. And they advertised that it was no modifications required. Thanks for you all for the help. My other complaints still stand though.

And I think that unless came true. Man I feel like a Jackass. I think the title of this thread should be changed to "Be Cautious about buying from koyo"



then keep the radiator and get a set of brackets from the for sale forum



I would but it still would not fit with my air box and snorkel thing (the plastic intake part on top of the fan shroud.) Still not "designed as a factory fit, direct bolt" like the website says.



website may say one thing but a simple search here would have revealed that the airbox does not fit. So yes it bolts in, its a direct bolt in and it fits, just doesnt fit the airbox. Kind of a gray area the way its advertised
call a local radiator shop and see if they can get you a factory style replacement radiator



Time to change the title of your thread big guy....



I dont think any of the thicker aluminum radiators are going to fit with the stock air box. Your going to have to either settle for a stock size replacement (which will still be better than a stock one) or plan on keeping the koyo and getting a free flow intake. Decent price stock size radiators can be found on ebay for relatively cheap around 150ish iirc.



Title: Don't buy a S5 Car with an S4 Rad,then BUY a KOYO.

Subject:

Koyo failed to warn me that the Rad they manufacture will not fit if I have a S4 Rad in an S5 Car..and use my S4 Brackets.
I am suing them for Misrepresentation and loss of wages.I will be on Judge Judy on
January 16/2014 to Plea my case.
I am looking for witnesses to help me establish the fact that the Typing in the Instructions is too small and too vague.Not only that,it is not Printed in Swahili.

I am also going to argue the fact that the Radiators just come in Chrome color and that is Color discrimination.All other colors are now jealous that they cannot become Koyo Radiators
.The latest testimony about this was when the Color BLACK said "say wut?,That's whack!"
Blue was too embarrassed to Talk.
Red was Fuming about this.

White was overheard sayin" Howard..uh..I think it won't fit..Maybe you should post a thread".

(posted in fun!Glad you solved it.)



Personally I don't like judge Judy, she is too easy. I plan on taking this onto jerry springer. That koyo rad actually pulled a knife on my car for being red. racist radiator...

Ya, I wish I could change the title to "Be aware of what you are buying and what you have in your car." Seroiusly if the mods want to they should change it to something along those lines.

Koyo is ok just thought it would work better in this case. I sent it back today, and I have the very last oem radiator that Mazda America has in stock (price was actually pretty good) coming in the next couple of days.



still going to need s5 brackets if you ordered a oem rad for an s5



Springer will ask you to be on the show Only if the Koyo radiator was sleeping with your Girlfriend and got her pregnant...Talk about a coolant leak...all those little freakin Bratiators running around now...
"I know they isn't mine Jerry..I was wearin a silicone hose".



Actually that's why I got rid of the original, it was sleeping with my girlfriend. I was hoping the the koyo wouldn't, but it actually it got her and her parents pregnant. Talk about weird kids....

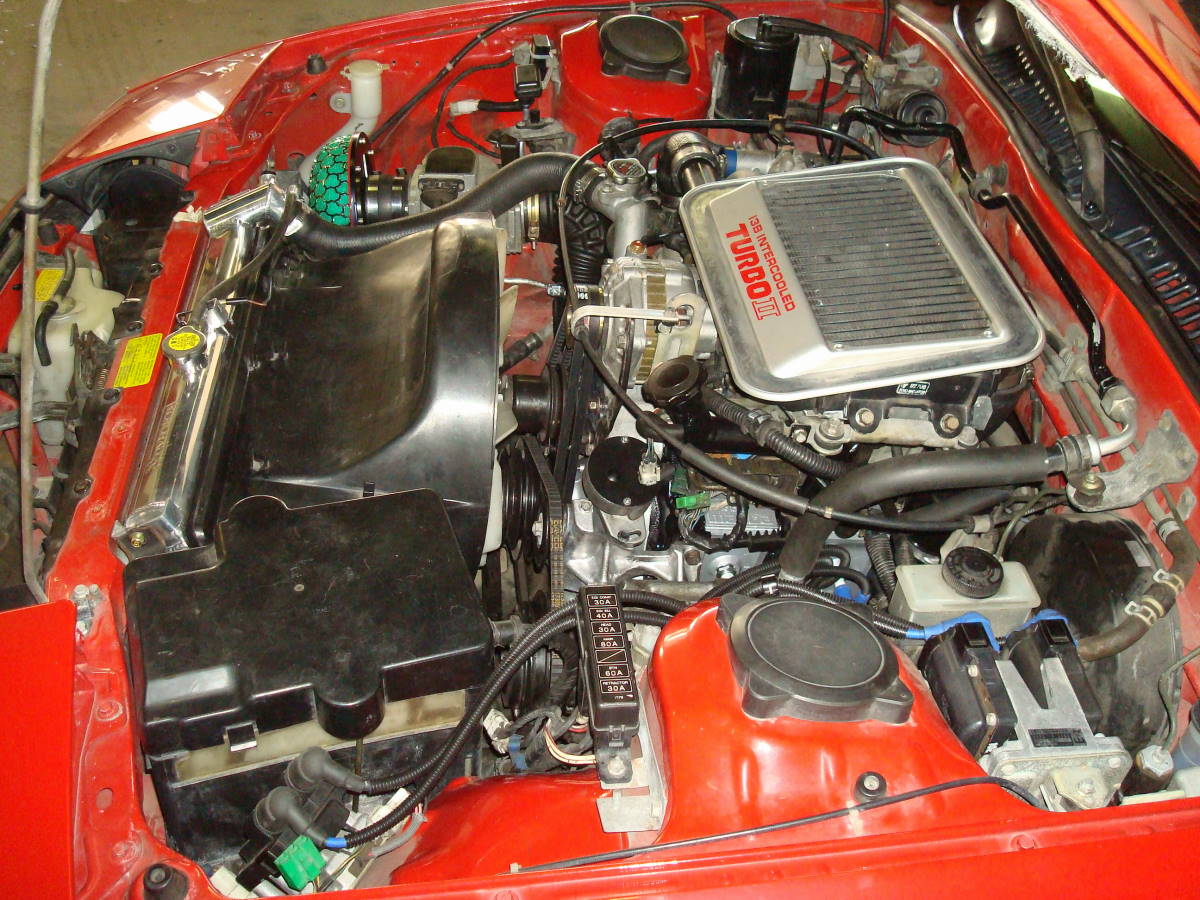

The Fluidyne is a direct replacement which fits perfectly with all OEM stuff in place. Shroud, airbox, fan, battery box, heater pipe, undertray, etc.

Of course it is 4X the price of the Koyo and others, but I guess one gets what one pays for.

Paid nearly $800 (considering shipping, duty, US to Canadian conversion) for my Fluidyne 13 years ago but it installed in less than 45 minutes and looks as good today as the day it went into the car.



I'd bet on my 2-pass for overall heat transfer vs any single pass including the fluidyne any day of the week and twice on sundays...

It also fits with all that stuff in place except for the stock intake snorkel.

I have the corksport in my street car which is very similar in design to the fluidyne (no idea who actually makes it). It fit very well also and does not require the stock brackets. But, if i had it to do over I'd get another N-flow...

The airbox works with a lot of the big radiators it's the intake snorkel that only seems to work with the single pass koyo due to the rounded end tanks.



Do you have a pic of the S5 n-flow? I've only been able to find one pic and it didn't have the filler neck extension that I've always seen on the S5 single pass... would like to confirm this as I don't want the long filler neck that points toward the engine.



OP I have a S5 radiator out of an 90 N/A vert which is in great shape, send me a PM if you want it. It's been in storage and last I saw it there were no bent fins, I believe the S5 brackets are still on there. You can have it cheap, but you have to pay shipping.



We install Koyo radiators in just about every car we work on, great fitment, fantastic performance

Koyo R series for S5



Koyo N-flow for S5



Koyo R Series for S4



Thanks Banzai!



Koyo states that they only make the radiator for the S5 as a drop in. The S4 requires the mount to be shortened a little bit or drilled out. I cut and welded mine and it fit perfectly.



there is no direct drop in, it will still require some minor modifications but they are very easy to overcome. trim the radiator shroud to clear the hose in/outlets and it should fit fine. the koyos are the easiest to install short of the fluidyne radiators.
