Where is the speed sensor wire in the ECU Located?? PICS Inside..
02-08-07, 06:43 PM
#1
Senior Member
Thread Starter
Join Date: Dec 2005
Location: Moreno Valley
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
Where is the speed sensor wire in the ECU Located?? PICS Inside..

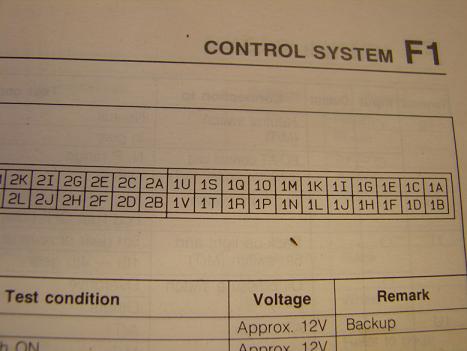

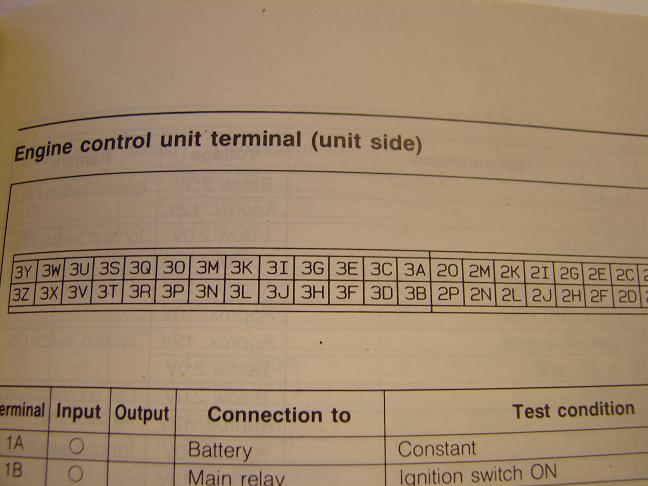

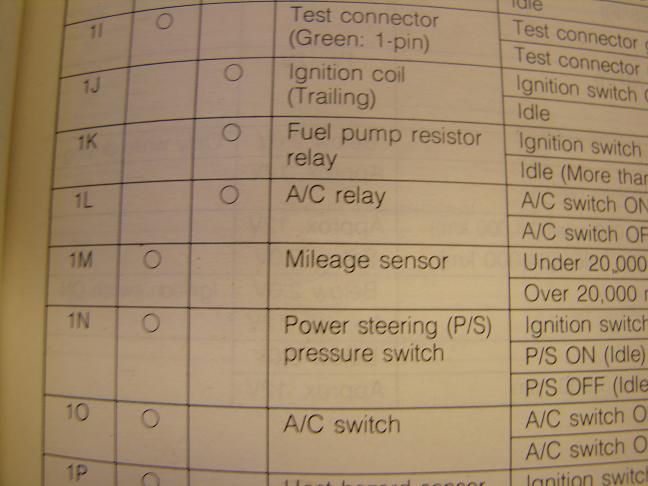

I just bought the Defi link-display and i need to attach the speed signal wire to the ECU. but im having problems which wire it is to splice on... i have a mazda factor book and gives me the layout of the ECU. i see "IM" as the "Milage sensor" could this be the wire im looking for. please help?
02-08-07, 10:19 PM
#3
What's the point??
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts
http://www.rx7city.com/Manuals/88%20...ELECTRICAL.pdf
Page 85, it looks like you just have to tap into the P/S connector for it. On a similar note, what type of output is this? (voltage, pulse, etc.)
Page 85, it looks like you just have to tap into the P/S connector for it. On a similar note, what type of output is this? (voltage, pulse, etc.)
02-08-07, 11:34 PM
#4
Senior Member
Thread Starter
Join Date: Dec 2005
Location: Moreno Valley
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by papiogxl
http://www.rx7city.com/Manuals/88%20...ELECTRICAL.pdf
Page 85, it looks like you just have to tap into the P/S connector for it. On a similar note, what type of output is this? (voltage, pulse, etc.)
Page 85, it looks like you just have to tap into the P/S connector for it. On a similar note, what type of output is this? (voltage, pulse, etc.)
Pulse 4. you got a pic where i can locate the wire???
02-08-07, 11:42 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Go to the Cruise Control Units plug and look for the green/red wire.
Or go to the Pwr Steering Control Units plug and look for the green/red wire there.
Or if you had an automatic transmission, go to the ECAT Control Unit and look for the green/red wire at the ECAT.
What are you looking for to use that wire for?
Or go to the Pwr Steering Control Units plug and look for the green/red wire there.
Or if you had an automatic transmission, go to the ECAT Control Unit and look for the green/red wire at the ECAT.
What are you looking for to use that wire for?
02-09-07, 12:00 AM
#6
Senior Member
Thread Starter
Join Date: Dec 2005
Location: Moreno Valley
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
Go to the Cruise Control Units plug and look for the green/red wire.
Or go to the Pwr Steering Control Units plug and look for the green/red wire there.
Or if you had an automatic transmission, go to the ECAT Control Unit and look for the green/red wire at the ECAT.
What are you looking for to use that wire for?
Or go to the Pwr Steering Control Units plug and look for the green/red wire there.
Or if you had an automatic transmission, go to the ECAT Control Unit and look for the green/red wire at the ECAT.
What are you looking for to use that wire for?
im installing the defi link display. for MPH or KPH
02-09-07, 12:12 AM
#7
my fc broke
Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes
on
0 Posts
if you have cruise control i beleive you can get the signal from the cc ecu. its a green and white wire from what i remember.. thats the wire i used for my turbo timer a while back
Trending Topics
Behind The Cluster
02-09-07, 06:15 PM
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by fleetcolormike
Is this where the green/red wire are at?????
Gosh no. That is the cruise control SWITCH. You want to go to the Cruis Control Unit located near your left foot. A few inches aft of the interior fuse box.
What kind of book are you looking at? It seems a good book but your not looking in the right places. Is that the Wiring Diagrams??????? book????
I looked at the seies five wiring diagrams online yesterday and it was a green/red wire leaving the instrument cluster and still green/red at the cruise control unit and pwr steering control unit.
