where does this go...
08-10-04, 06:30 PM
#1
...
Thread Starter
Join Date: Aug 2001
Location: Tampa, FL
Posts: 7,539
Likes: 0
Received 0 Likes
on
0 Posts
where does this go...

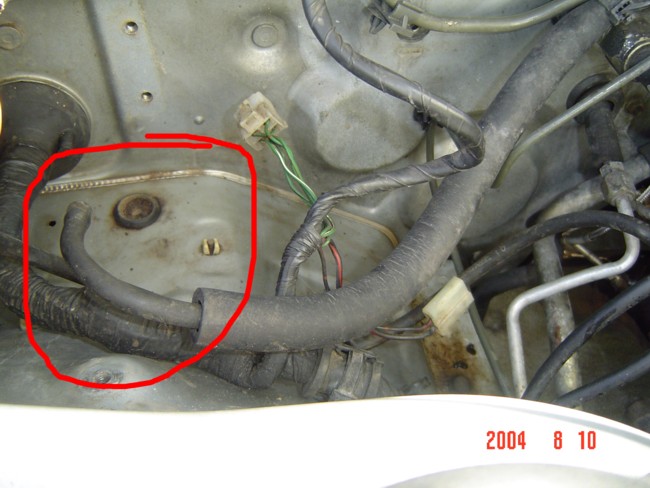

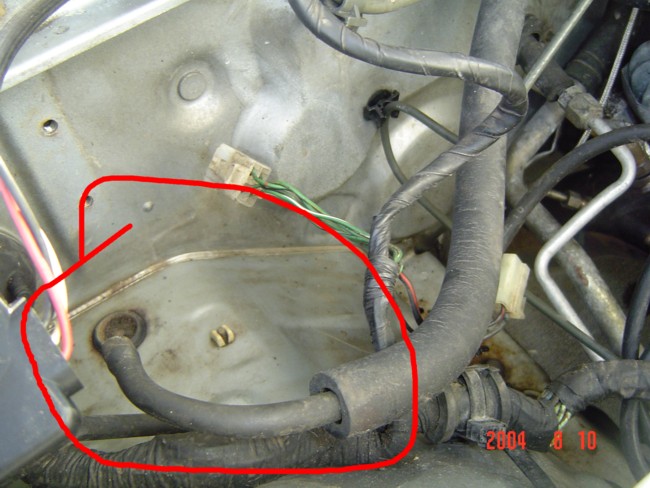

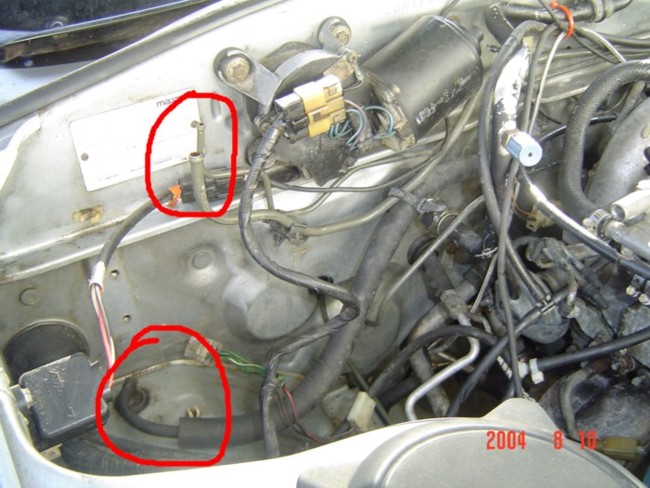

I found some misc hoses that are not connected and not capped and need some help figuring out where they go. I'll circle them in red. And this is all on the passenger side of the engine bay by the firewall. Thanks for any help.
08-10-04, 06:34 PM
#2
Junior Member
Join Date: Aug 2002
Location: Rapid City SD
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Those are the hard lines for you charcole canister, looks like its going.
One goes back to the tank and the other goes to the vacum rack.
I'm not sure what the soft line is for, all I can see is that it goes back behind the UIM...
One goes back to the tank and the other goes to the vacum rack.
I'm not sure what the soft line is for, all I can see is that it goes back behind the UIM...
Last edited by DrifterRX; 08-10-04 at 06:36 PM.
08-10-04, 06:35 PM
#3
...
Thread Starter
Join Date: Aug 2001
Location: Tampa, FL
Posts: 7,539
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DrifterRX
Those are the hard lines for you charcole canister, looks like its going.
One goes back to the tank and the other goes to the vacum rack.
One goes back to the tank and the other goes to the vacum rack.
So I need those all capped off right? Or else I have a vacuum leak right?
08-10-04, 06:39 PM
#4
Junior Member
Join Date: Aug 2002
Location: Rapid City SD
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts

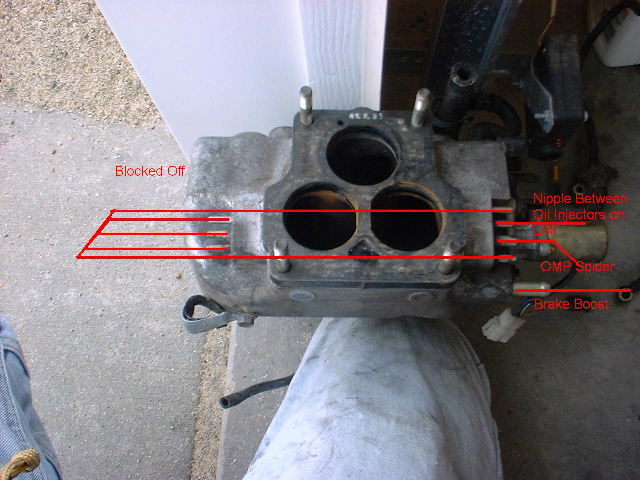

Yeah you can cap them off, if you remove the vacum rac you can pull them off the fire wall. Its just as easy to remove the vacum rack. Heres some pics to help if you have any more questions ask.
08-10-04, 08:22 PM
#7
Junior Member
Join Date: Aug 2002
Location: Rapid City SD
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Yeah hes right, the colds start is missing lol. Sorry I didn't even notice that, kinda spaced out with my own things right now
but yeah, you'll have to plug that coolant line also as the tank is gone now. It should go to the LIM I think, don't remember right off the top of my head.
but yeah, you'll have to plug that coolant line also as the tank is gone now. It should go to the LIM I think, don't remember right off the top of my head.
