where do these hoses go?
05-26-09, 10:43 PM
#6
Senior Member
iTrader: (1)
Join Date: May 2009
Location: Tacoma, WA
Posts: 662
Likes: 0
Received 0 Likes
on
0 Posts
<img src="http://i27.photobucket.com/albums/c152/dtale15/IMG_0988.jpg"></img>
<img src="http://i27.photobucket.com/albums/c152/dtale15/IMG_0989.jpg"></img>

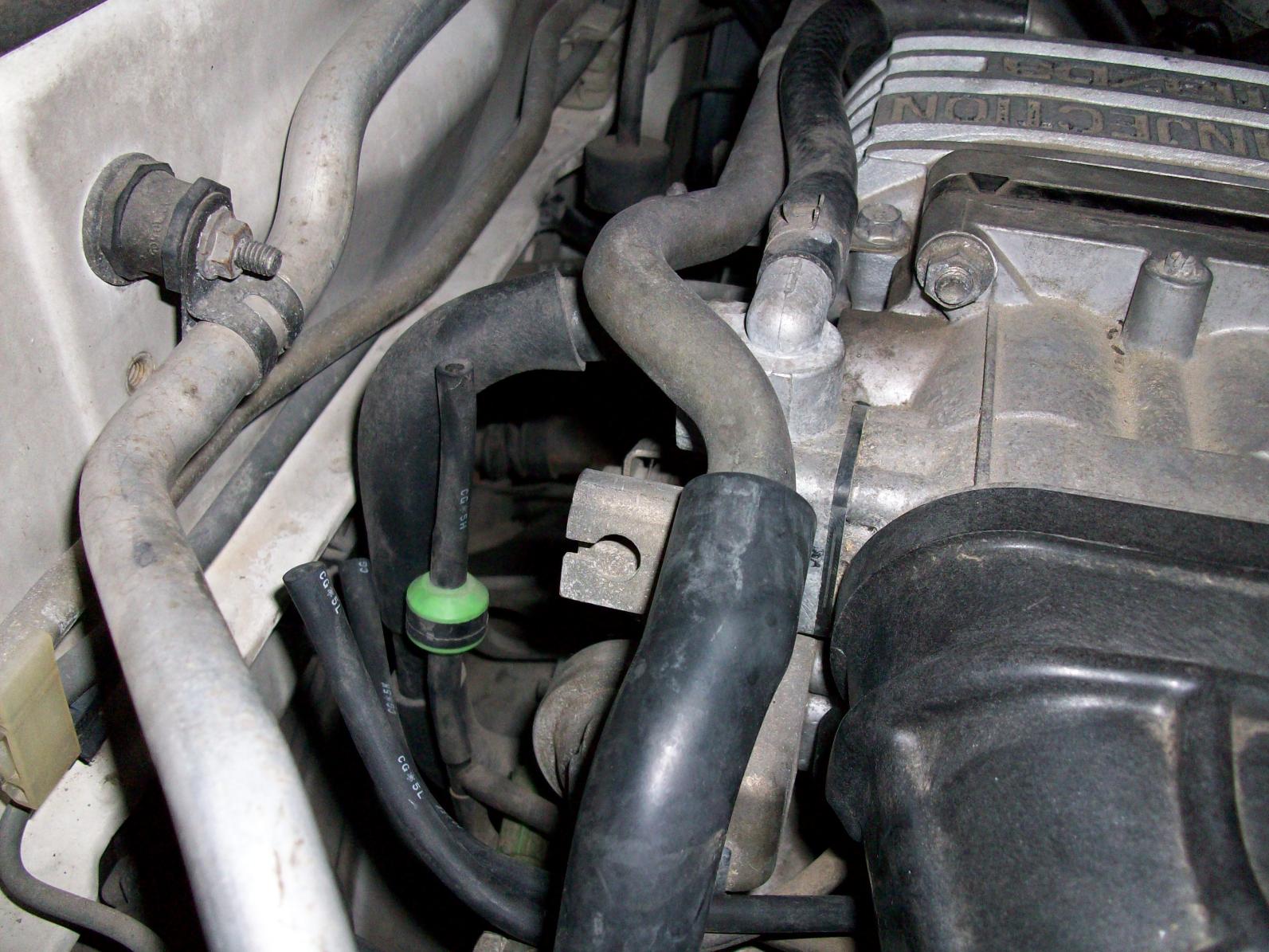

check those out.. dont know if it helps...
<img src="http://i27.photobucket.com/albums/c152/dtale15/IMG_0989.jpg"></img>
check those out.. dont know if it helps...
Trending Topics
05-28-09, 05:01 PM
#10
Slight correction; your thermovalve is missing, but the thermowax is still there. It's the metal part with the coolant line coming out of it. The plastic thermovalve just screws into the body of the thermowax housing.
Check if you have the outer set of secondary throttle plates before you do anything else. If someone removed the thermovalve, it may be because there were no plates & it had no use. The valve is only used to operate the double throttle diaphram.
If you have the plates, and want the system back, then buy a TB off of ebay or the classified section. You can scavenge the thermovalve off of it. But in the meantime, cap off those hoses. At least one of them will be creating a vacuum leak.
Check if you have the outer set of secondary throttle plates before you do anything else. If someone removed the thermovalve, it may be because there were no plates & it had no use. The valve is only used to operate the double throttle diaphram.
If you have the plates, and want the system back, then buy a TB off of ebay or the classified section. You can scavenge the thermovalve off of it. But in the meantime, cap off those hoses. At least one of them will be creating a vacuum leak.
05-28-09, 05:48 PM
#11
Zoom Zoom Baby
Thread Starter
iTrader: (1)
Join Date: Jun 2008
Location: Denver/Vegas
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
Slight correction; your thermovalve is missing, but the thermowax is still there. It's the metal part with the coolant line coming out of it. The plastic thermovalve just screws into the body of the thermowax housing.
Check if you have the outer set of secondary throttle plates before you do anything else. If someone removed the thermovalve, it may be because there were no plates & it had no use. The valve is only used to operate the double throttle diaphram.
If you have the plates, and want the system back, then buy a TB off of ebay or the classified section. You can scavenge the thermovalve off of it. But in the meantime, cap off those hoses. At least one of them will be creating a vacuum leak.
Check if you have the outer set of secondary throttle plates before you do anything else. If someone removed the thermovalve, it may be because there were no plates & it had no use. The valve is only used to operate the double throttle diaphram.
If you have the plates, and want the system back, then buy a TB off of ebay or the classified section. You can scavenge the thermovalve off of it. But in the meantime, cap off those hoses. At least one of them will be creating a vacuum leak.
tb's and carbs always seem so complex to me, well our tbs.
so if i cap them for now you think i should see improvement in the problems i've been having with idle and such?
thanks again for all the help people.
06-04-09, 08:21 PM
#14
Zoom Zoom Baby
Thread Starter
iTrader: (1)
Join Date: Jun 2008
Location: Denver/Vegas
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts

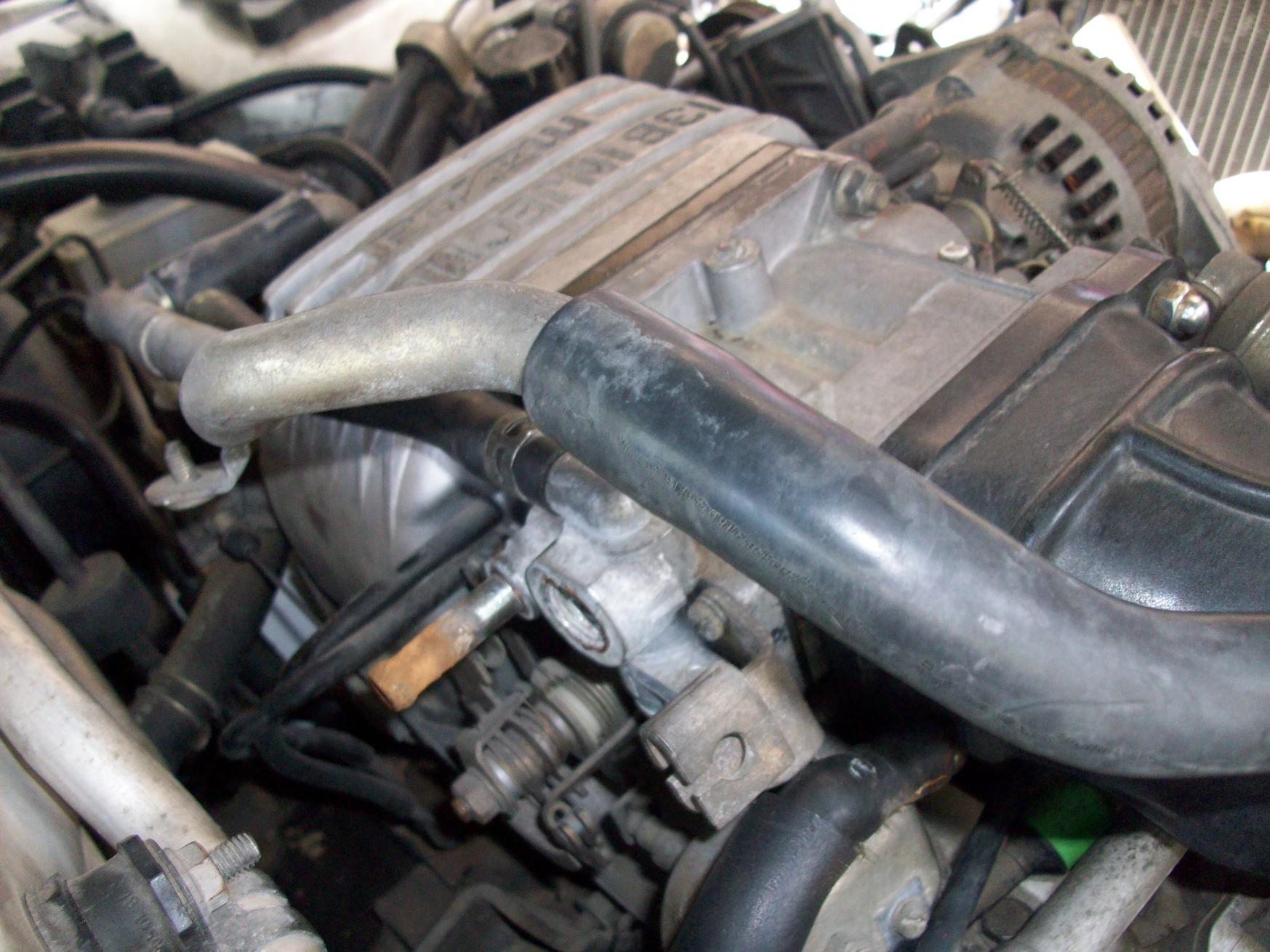

anything wrong with this picture?
i have one extra hose not sure where it goes.
and it seems like i'm missing some stuff.
help?

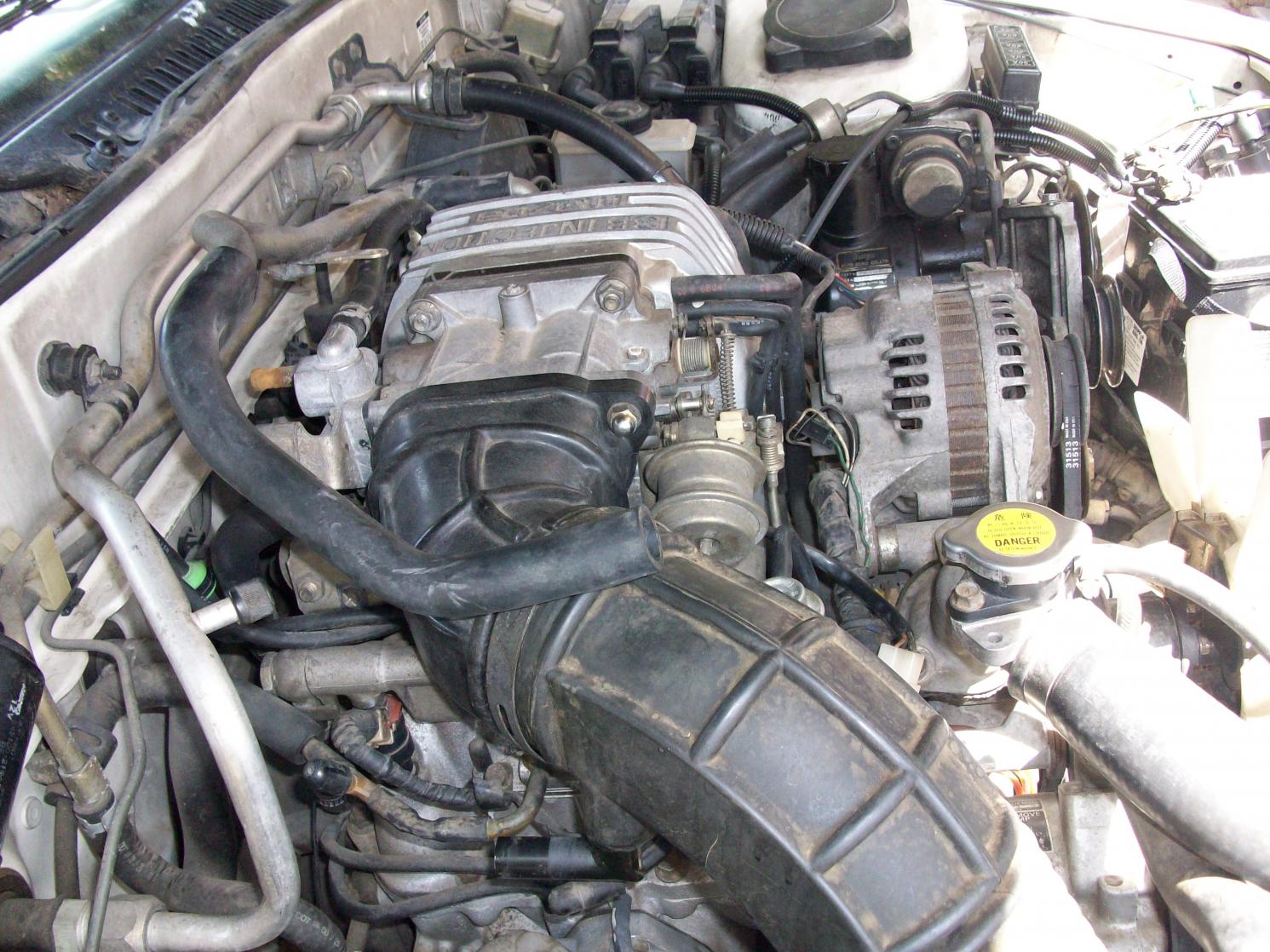

first and third pic are pre-thermovalve.

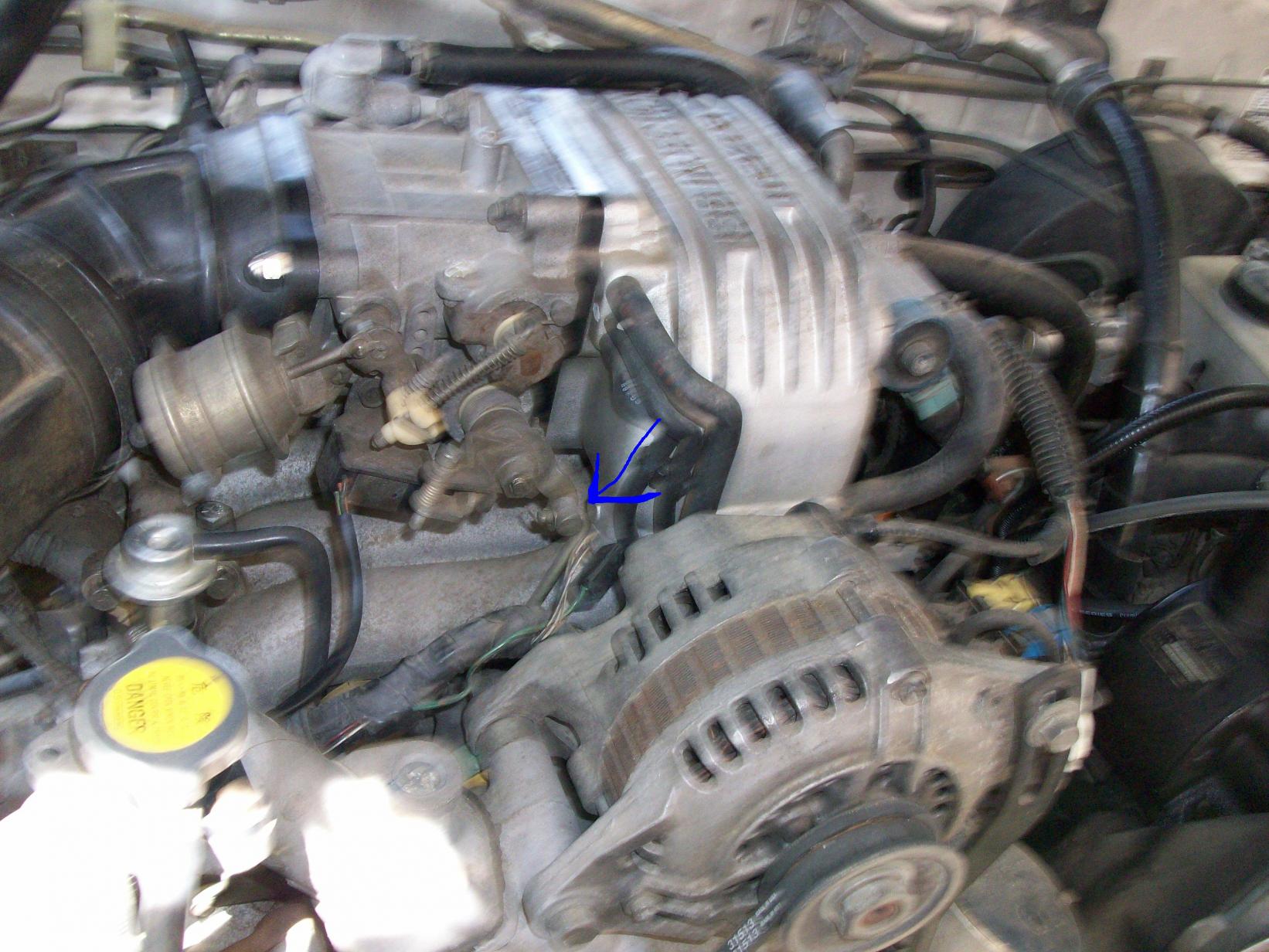

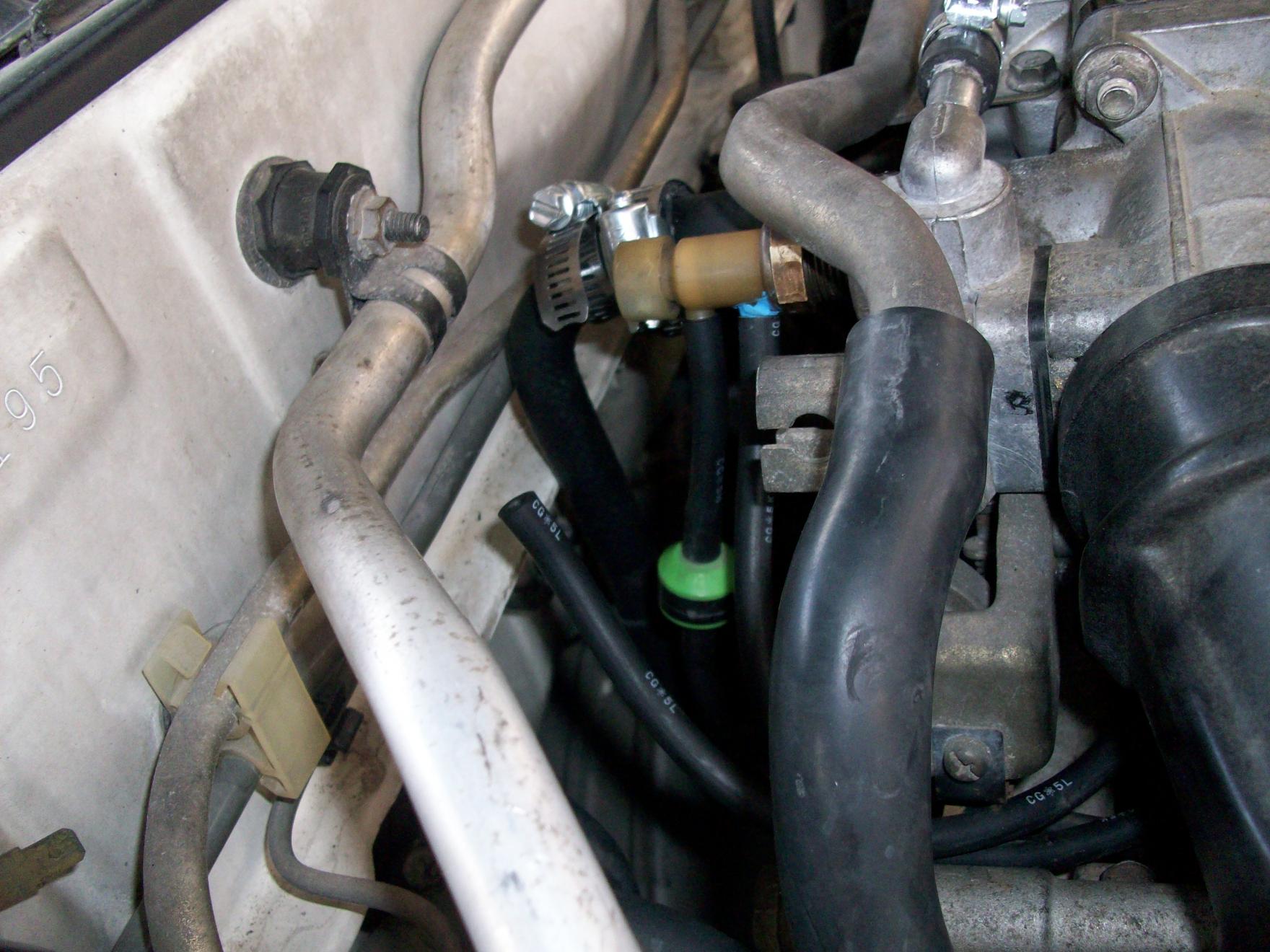

second is after and have extra hose.
i have one extra hose not sure where it goes.
and it seems like i'm missing some stuff.
help?
first and third pic are pre-thermovalve.
second is after and have extra hose.
06-05-09, 01:09 PM
#16
The double throttle diaphram you have looks like the kind off of an AT car. The thermovalve that went on ATs had 3 nipples, instead of the 2 on an MT. That extra hose goes to one of the sides on the diaphram, right?
If I'm right, you should be ok with one of the two lines to the diaphram hooked up. Which one, I'm not sure, but could test it by applying vacuum with a pump or the engine.
Edit: on second look, that looks like an S5 throttle body, as well. And where is your TPS? Someone has been mixing and matching parts.
If I'm right, you should be ok with one of the two lines to the diaphram hooked up. Which one, I'm not sure, but could test it by applying vacuum with a pump or the engine.
Edit: on second look, that looks like an S5 throttle body, as well. And where is your TPS? Someone has been mixing and matching parts.
06-06-09, 04:09 AM
#17
Zoom Zoom Baby
Thread Starter
iTrader: (1)
Join Date: Jun 2008
Location: Denver/Vegas
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
The double throttle diaphram you have looks like the kind off of an AT car. The thermovalve that went on ATs had 3 nipples, instead of the 2 on an MT. That extra hose goes to one of the sides on the diaphram, right?
If I'm right, you should be ok with one of the two lines to the diaphram hooked up. Which one, I'm not sure, but could test it by applying vacuum with a pump or the engine.
Edit: on second look, that looks like an S5 throttle body, as well. And where is your TPS? Someone has been mixing and matching parts.
If I'm right, you should be ok with one of the two lines to the diaphram hooked up. Which one, I'm not sure, but could test it by applying vacuum with a pump or the engine.
Edit: on second look, that looks like an S5 throttle body, as well. And where is your TPS? Someone has been mixing and matching parts.
the throttle body i got on ebay was different.
and the one that guy posted earlier was the same.
i'm thinking i do have an s5 one.
too bad the s4 tb i got on ebay was damaged in shipping.
so took make the s5 one work what do i need?
06-07-09, 12:36 PM
#23
If you have an OMP rod, it'll be as simple as reconnecting it to the S4 TB. If not, you'll have to find one for sale, or possibly buy a new one from a dealership.
You could also blockoff the OMP and premix, but it's kind of a pain in the ***. Some people don't mind it, but I got tired of it quickly when I was doing it. I ended up keeping the OMP on my next engine build.
You could also blockoff the OMP and premix, but it's kind of a pain in the ***. Some people don't mind it, but I got tired of it quickly when I was doing it. I ended up keeping the OMP on my next engine build.
06-07-09, 06:29 PM
#24
Zoom Zoom Baby
Thread Starter
iTrader: (1)
Join Date: Jun 2008
Location: Denver/Vegas
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
If you have an OMP rod, it'll be as simple as reconnecting it to the S4 TB. If not, you'll have to find one for sale, or possibly buy a new one from a dealership.
You could also blockoff the OMP and premix, but it's kind of a pain in the ***. Some people don't mind it, but I got tired of it quickly when I was doing it. I ended up keeping the OMP on my next engine build.
You could also blockoff the OMP and premix, but it's kind of a pain in the ***. Some people don't mind it, but I got tired of it quickly when I was doing it. I ended up keeping the OMP on my next engine build.
i have the worst memory ever.
so i would for sure forget to premix.
