where is auto computer
#1
Full Member
Thread Starter
Join Date: Oct 2004
Location: pittsburgh
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
where is auto computer
Everything I read tells me its behind the passenger side kick panle if front of the door i took it off and its not there? Is it someplace else on an 1986 Gxl
#4
Zero Rotor Motorsports
iTrader: (1)
Join Date: Feb 2004
Location: Glen Burnie, MD
Posts: 2,525
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vrooom305
I don't think there is a auto computer for S4's or so at least I've read that there is no auto computer on S4's
#7
Full Member
Thread Starter
Join Date: Oct 2004
Location: pittsburgh
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
I was told I needed to remove it for my auto to manual conversion that was the only thing i had left to do .And also I made my own mount its a little diffrent but super strong
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
That's odd. The ECU is the same on a manual as on a automatic.
Although, the automatic does have its own seperate computer(along with the ECU). I think it's called a ECAT.
I've never seen a automatic or the ECAT. I THINK it is located alongside the ECU though.
You certainly don't want to remove the ECU or the car won't run. Period.
Although, the automatic does have its own seperate computer(along with the ECU). I think it's called a ECAT.
I've never seen a automatic or the ECAT. I THINK it is located alongside the ECU though.
You certainly don't want to remove the ECU or the car won't run. Period.
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Disregard the part about the ECAT mentioned above. I think your looking for something called the 4AT Control Unit. The 88 online wiring manual seems to show it on the passengers side but not next to the ECU which is on the floor. The manual seems to show it up and to the right of the ECU. I think I'll go get my home manual and find it. Later.
#10
Rattle can retard
Join Date: Jul 2001
Location: St. Peters, MO
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
I think he's talking about the Automatic Transmission Control Unit, not the ECU.
And yes, it is up in the side behind that plastic interior plate. I had to unplug a couple things to get mine out.
I also have an 86 GXL.
There is also a Relay on the front crossmember under the hood. I don't remember which one it is though. I figured it out via the Haynes manual.
And yes, it is up in the side behind that plastic interior plate. I had to unplug a couple things to get mine out.
I also have an 86 GXL.
There is also a Relay on the front crossmember under the hood. I don't remember which one it is though. I figured it out via the Haynes manual.
#11
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I looked and it seems if you took off that right hand kick panel on the passengers side you'd find it. It appears in the fsm to be located waaaay up and to the right. That's the best I can do with the fsm.
By the way, the unit located along side the ECU is the ABS Control Unit for cars that have ABS.
By the way, the unit located along side the ECU is the ABS Control Unit for cars that have ABS.
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I just read FLOB. Sorry, the question in the thread said *auto*, which means to me automobile, not automatic. So you see where I was coming from. FLOB is right, I'm confused but now know where the automatic transmission computer is, or the 4AT Unit.
#14
King of the Loop
I am totally confused now because i was told that the 2 useless plugs under my drivers side dash once held the auto trany computer. Now its gonna bug me again
#15
Rattle can retard
Join Date: Jul 2001
Location: St. Peters, MO
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
I just read FLOB. Sorry, the question in the thread said *auto*, which means to me automobile, not automatic. So you see where I was coming from. FLOB is right, I'm confused but now know where the automatic transmission computer is, or the 4AT Unit.
But you must still be confused because there are two bees in FLOBB
#16
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Here's the B that fell off the monitor in the previous post. FLOBBB

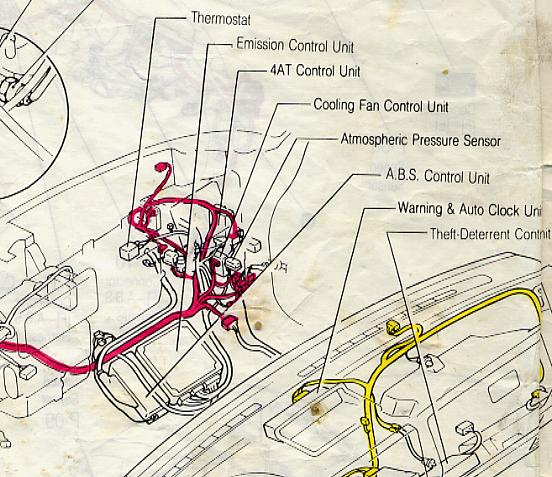

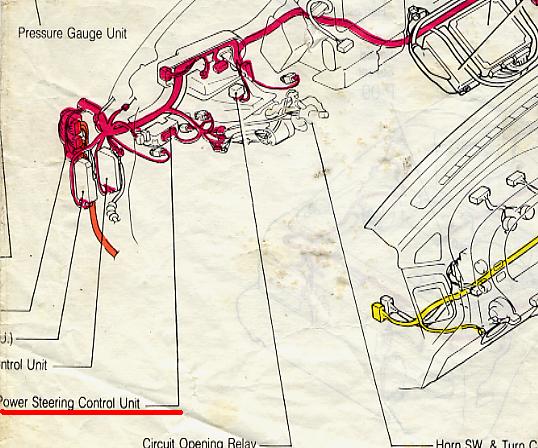

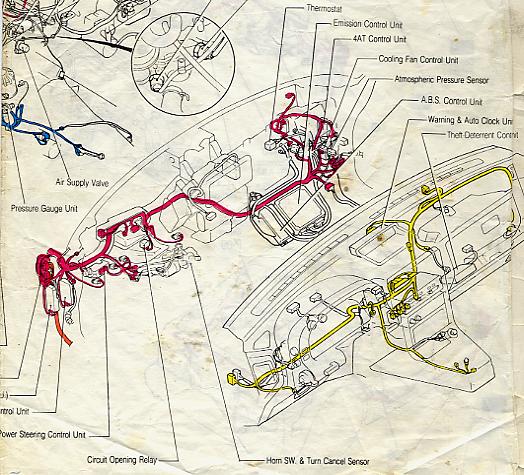

Attached is a location picture. In the far right it shows the 4AT box and to the far left it shows the Power Steering Box that I think Civics is talking about. Actually three jpg. The first shows all in the iterior, the next shows the right closer and the last the left closer.
Attached is a location picture. In the far right it shows the 4AT box and to the far left it shows the Power Steering Box that I think Civics is talking about. Actually three jpg. The first shows all in the iterior, the next shows the right closer and the last the left closer.
#18
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

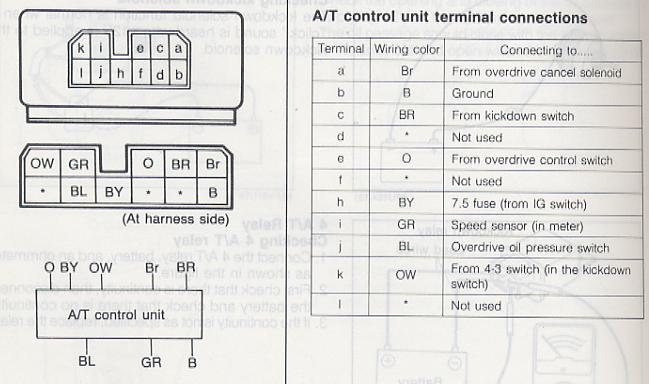

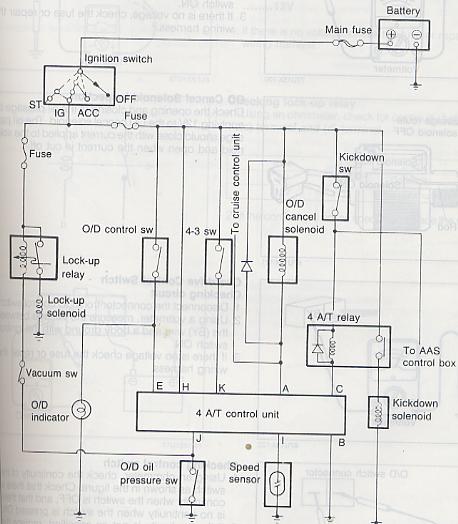

Probably not a thing. The wiring diagrams in the 87fsm are sparse when it comes to the automatic transmission. They do have a section called OVERDRIVE SYSYTEM that I copied some pages and attached. None of the eight wires seem to compromise anything if you don't have a automatic transmission.
It seems the tricky part of the swap lies in the clutch switches and the backup light switch and throw in the neutral switch for extra measure.
There's something called the 4 A/T Relay located way up front near/b/t the head lights. I'd remove that thing for ........superstitious reasons.
The ECU has some inputs related to the automatic transmission. Pin 3D from the Inhibitor Switch. Pin 2K got a ground from the overdrive switch when in overdrive but now will get that ground from the fifth gear switch when your in fifth gear.
Pin 1I got a ground from the auto transmission was in overdrive but now the manual transmission when in any gear but fifth will put a ground on this wire.
1L gets a ground anytime your not in neutral. I can't figure out when the auto transmission got this. Do not really care to know.
1G should have a ground now anytime your in neutral. The auto trans must have had a ground all the time on this pin the way I read the chart.
Yep. Just leave the thing alone and pull the 4 A/T Relay up front. I know not which relay that is. There's no wire colors in the wiring diagram that I noticed right off. Heck. Don't worry about that if you don't know where it is.
It seems the tricky part of the swap lies in the clutch switches and the backup light switch and throw in the neutral switch for extra measure.
There's something called the 4 A/T Relay located way up front near/b/t the head lights. I'd remove that thing for ........superstitious reasons.
The ECU has some inputs related to the automatic transmission. Pin 3D from the Inhibitor Switch. Pin 2K got a ground from the overdrive switch when in overdrive but now will get that ground from the fifth gear switch when your in fifth gear.
Pin 1I got a ground from the auto transmission was in overdrive but now the manual transmission when in any gear but fifth will put a ground on this wire.
1L gets a ground anytime your not in neutral. I can't figure out when the auto transmission got this. Do not really care to know.
1G should have a ground now anytime your in neutral. The auto trans must have had a ground all the time on this pin the way I read the chart.
Yep. Just leave the thing alone and pull the 4 A/T Relay up front. I know not which relay that is. There's no wire colors in the wiring diagram that I noticed right off. Heck. Don't worry about that if you don't know where it is.
