Whats up with this wiring???
#1
ole blue
Thread Starter
Whats up with this wiring???

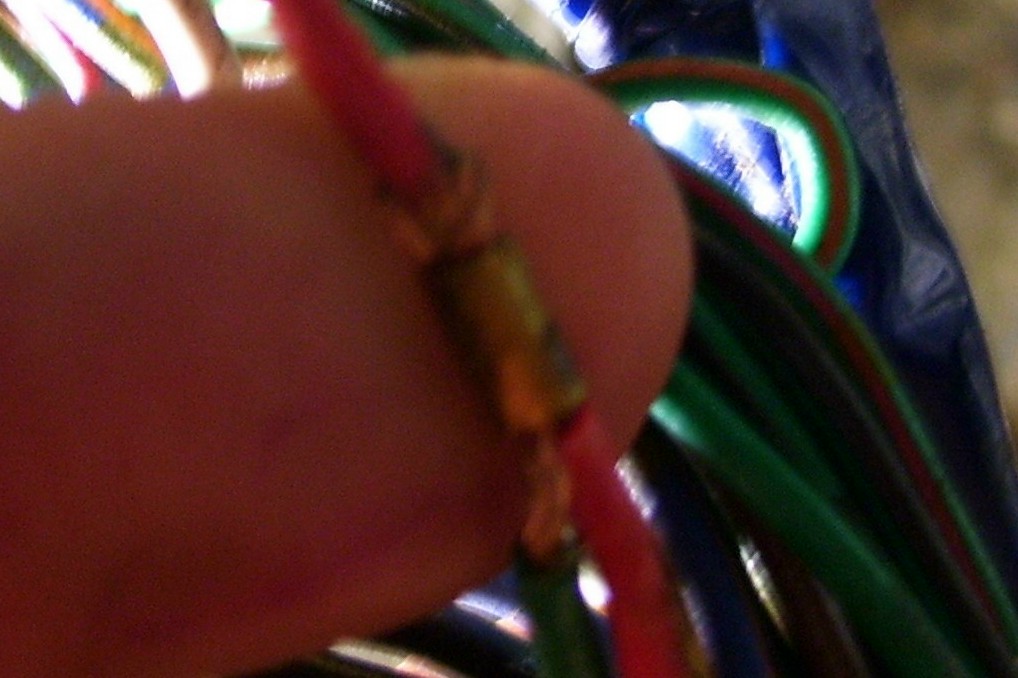

Well the pic labeled 100-0025 is of the CAS Ne ground taped into the G- sensor (Pin 3H). Is that connected properly?? *note i found it like this, i did not do this electrical work myself*

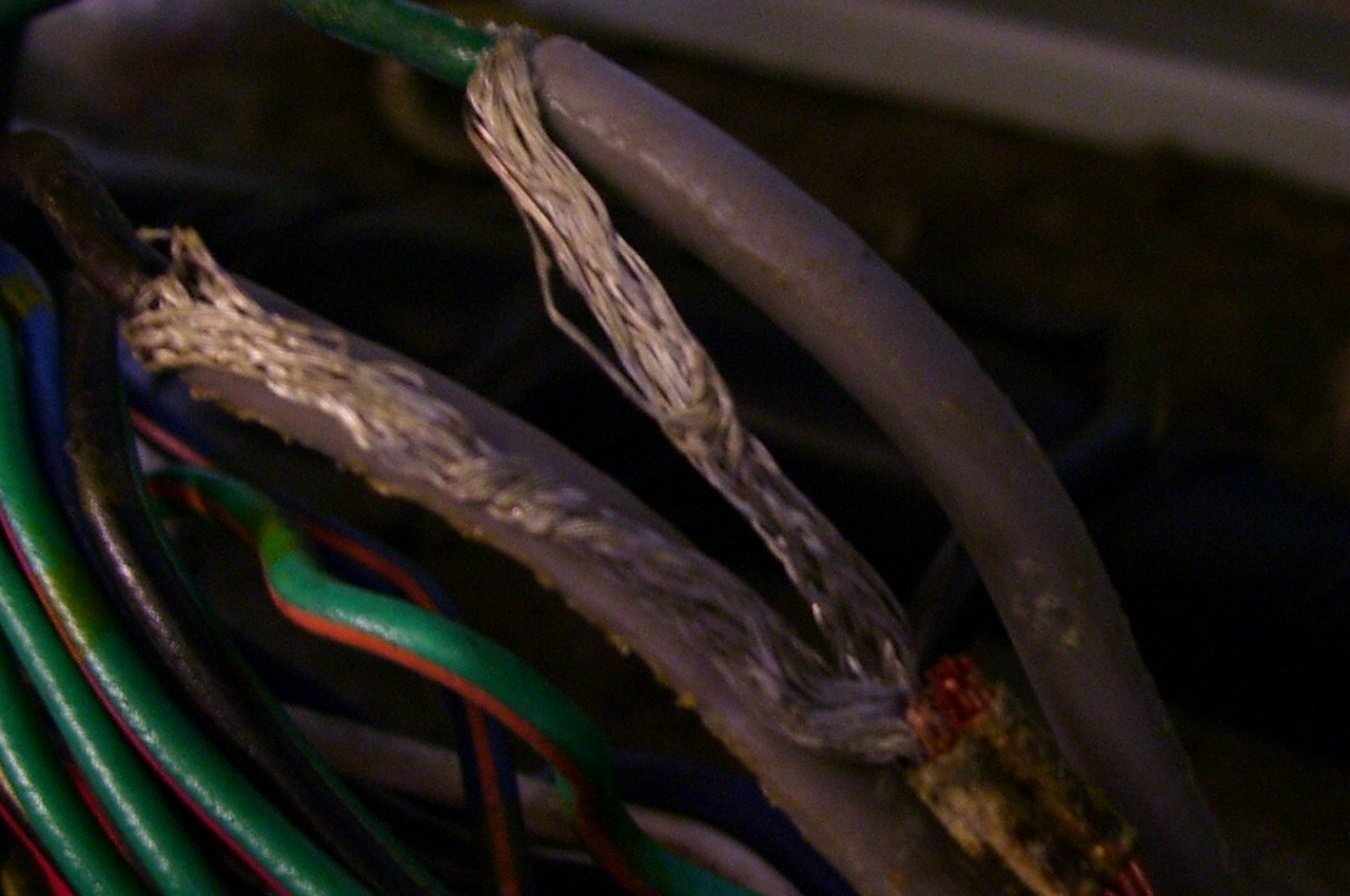

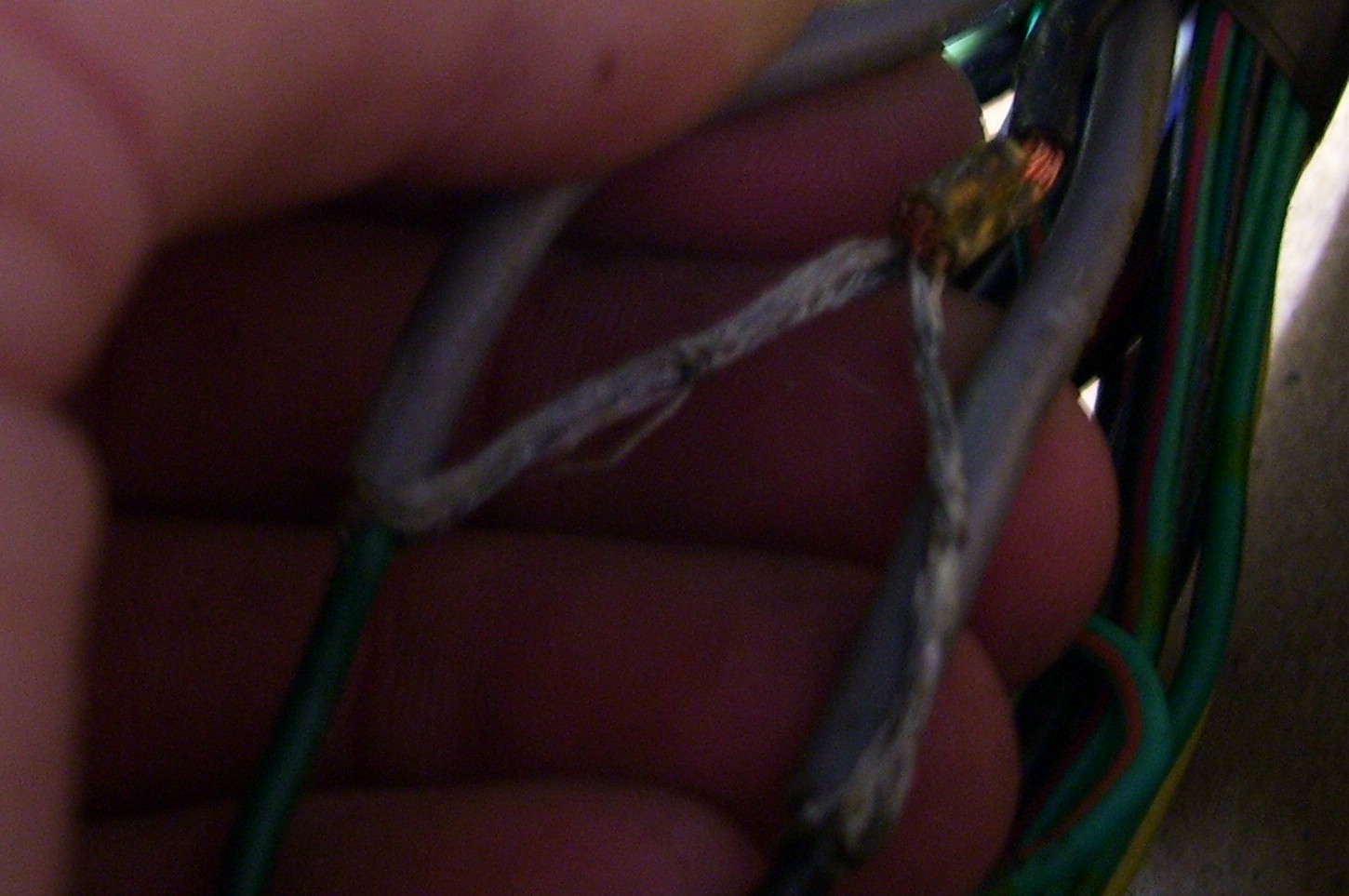

Pictures 0028 and 0030 are the ones i am confused about. The GREEN wire (pin 2B) is for the Air Flow Meter (Vs) and the BLACK wire (pin 2C) is for the Oxygen sensor....But what is that other black wire doing connected to the (shielding??) that is around both wires?? Is it suposed to be like that??
As some of you may know i am having stalling issues and wondering if any of this could relate. I have updated the stalling issue. here's a link.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/engine-stalls-need-help-615150/
This stuff is driving me NUTS so any and all help is greatly appreciated. Thanks, Logan
Pictures 0028 and 0030 are the ones i am confused about. The GREEN wire (pin 2B) is for the Air Flow Meter (Vs) and the BLACK wire (pin 2C) is for the Oxygen sensor....But what is that other black wire doing connected to the (shielding??) that is around both wires?? Is it suposed to be like that??
As some of you may know i am having stalling issues and wondering if any of this could relate. I have updated the stalling issue. here's a link.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/engine-stalls-need-help-615150/
This stuff is driving me NUTS so any and all help is greatly appreciated. Thanks, Logan
#2
Former Moderator. RIP Icemark.
The shield grounds are correct, and your bump has been deleted. Bumps are forbidden here in the 2nd gen RX-7 technical section
and it is too hard to see your first picture
and it is too hard to see your first picture
