On the passenger side engine bay. Between strut tower and headlight. It is a relay and another electronic piece with heat sinks and has metal shield. It also has a round plug attached to inside of shield.

I'm trying to do.a semi wire tuck. And clean up engine bay. Any info on this relay etc. Would be appreciated.



Pics? The only thing I can think of would be the MAP sensor...



Resistor pack?

Pictures would indeed be helpful.



It is either the solenoid resistor pack or the fuel pump resistor and relay.

Year and model?



either way you can get rid of it since you're running aftermarket injectors and the haltech. the fuel pump should be rewired even if it is the fuel pump 2 step relay, on the stock series 4 if it is the resistor pack it was for the low impedence 86-87 injectors..



^ 1:46 - 2:00

I bet this is it:



It's called a CUZ-IF..
..Cuz IF you had Pics you would have known what it is by now.........................resistor pack.



Yes I did, I called it.



Actually a Cuz If is another thing..but we won't get into that..lol!

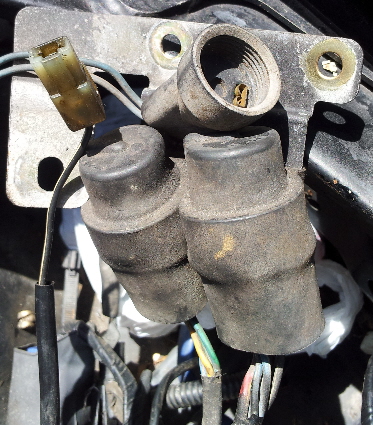

This is a solenoid resistor pack.





This is a fuel pump resistor & relay.



Aha! so, its the fuel pump resistor&relay. "she gone"

The solenoid one i had already removed. (thought this was injector resistor)


Thanks you forum. MY engine bay will be cleaner thanks to you guys.=)

You might hear from me again. But with pictures this time.
IM going to the messy driver side.... oh boy...



Picky picky picky



Yes... It is the "injector resistor". It is for the low impedance fuel injectors that came in quite a few of the series four cars. (As Karack had stated earlier.)



Got another thing. Its 2 of the relays that go in front bumper area.

The piture is of the relays and the 2 plugs/connectors im trying to eliminate. They end up being connected to these relays. THe connectors go to the air dam area, where the horns and original condencer e.fan was located.



pretty sure those are both for the A/C control system.



There are 6 relays together. these should be the only 2 round ones. If someone can confirm rotary evolution, that would be great.



OK one last relay please. It is one of the ones bolted next to dimmer and headlight relays. One of the ones in the front bumper area.

4 wire relay with wire colors being.
*light green/black
*light green
*black
*black
