What are these Solenoids?
10-02-15, 12:48 PM
#1
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Woodbridge, VA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
What are these Solenoids?

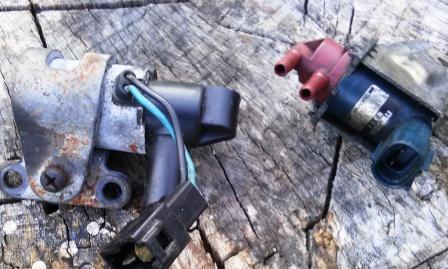

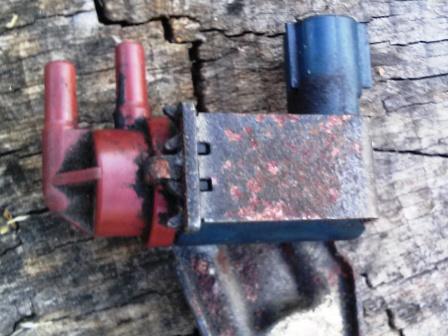

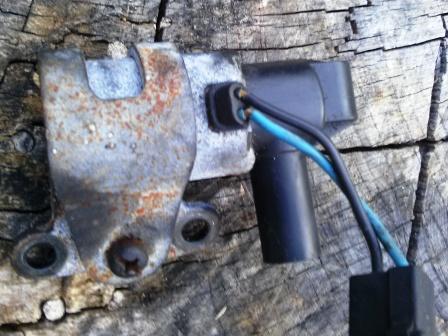

Does anyone know what these two solenoids are and where they go? The red one has N370 136200-0311 12v written on it. I believe the other one is a Air Bypass Solenoid? Any help would be much appreciated.
10-02-15, 03:31 PM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,613 Likes
on
1,852 Posts

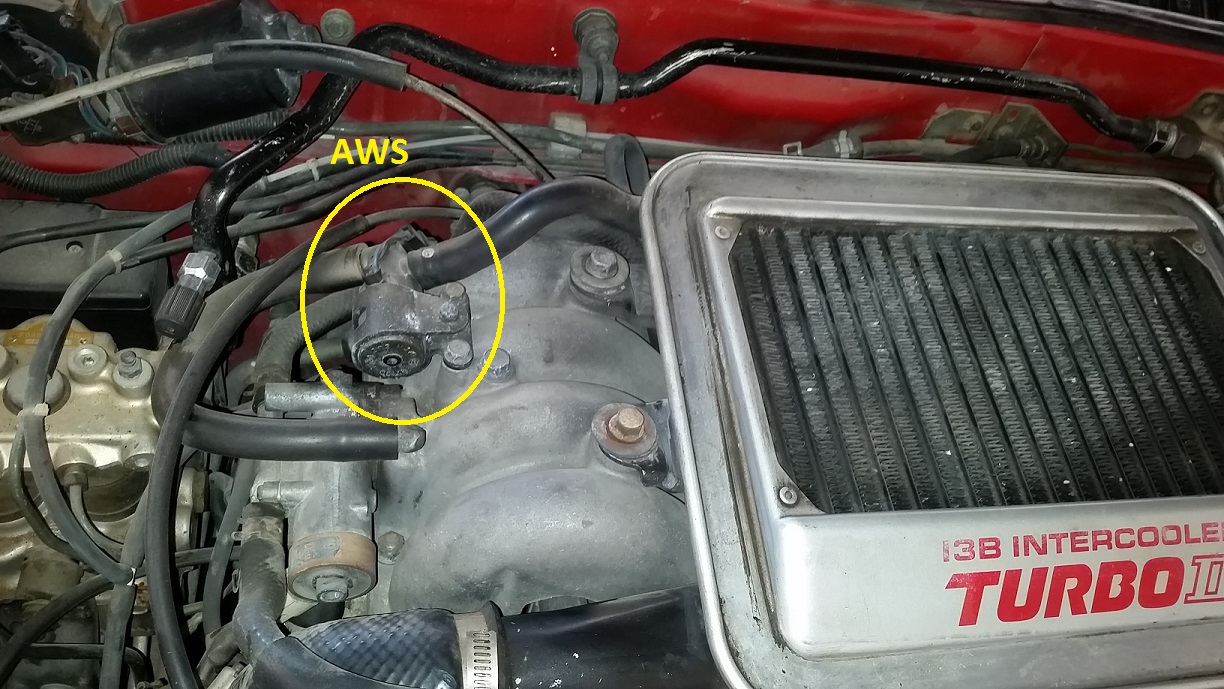

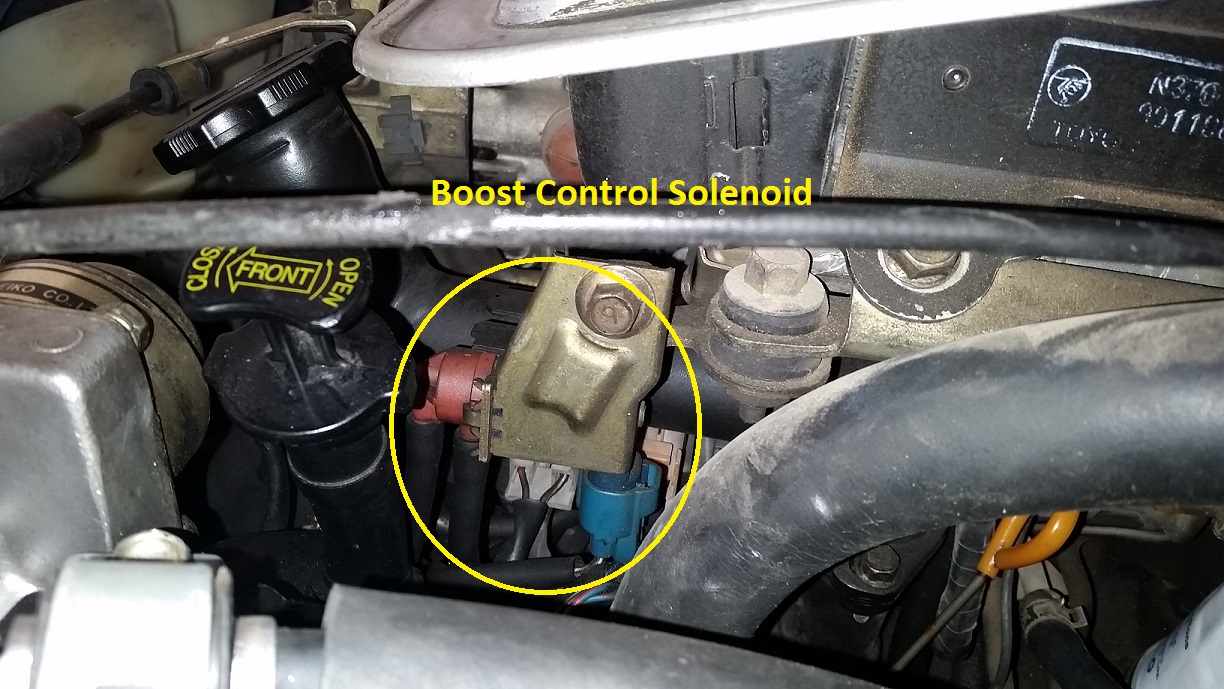

blue and red one is the S5 T2 boost control solenoid, and the other is the AWS valve
10-04-15, 07:22 PM
#4
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Woodbridge, VA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Thanks j9fd3s for pointing me in the right direction and jpk3200 for the pics. Both are a huge help.
I am now trying to figure out 4 vacuum lines on the back of the TB. The Haynes manual looks like it's (from top to bottom) air bleed from the side of the manifold, air bleed between the oil injectors, spider for the oil metering lines, and the last one for the boost gauge? However, the 2nd nipple from the top seems the biggest which would fit the spider. What order is it?
I am now trying to figure out 4 vacuum lines on the back of the TB. The Haynes manual looks like it's (from top to bottom) air bleed from the side of the manifold, air bleed between the oil injectors, spider for the oil metering lines, and the last one for the boost gauge? However, the 2nd nipple from the top seems the biggest which would fit the spider. What order is it?
10-05-15, 09:08 AM
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,613 Likes
on
1,852 Posts
Trending Topics
10-06-15, 06:44 PM
#8
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Woodbridge, VA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
^ Haha--- I need one. For some reason with your new unicorn/pony avatar and all this nipple talk, it reminds me of an old Ren and Stimpy episode. Don't ask me how they relate:
Last edited by Joe's_7; 10-06-15 at 06:52 PM.
10-06-15, 08:14 PM
#9
Senior Member
iTrader: (1)
Join Date: Aug 2007
Location: Indiana
Posts: 526
Likes: 0
Received 0 Likes
on
0 Posts
You are aware that clip is not from ren and stimpy, right? lol
The top 3 nipples on the back side of the UIM are fresh air and the bottom is vacuum. Stock, the bottom nipple goes to the thermowax idle control thing
The top 3 nipples on the back side of the UIM are fresh air and the bottom is vacuum. Stock, the bottom nipple goes to the thermowax idle control thing
10-07-15, 07:17 PM
#10
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Woodbridge, VA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
. The 1990's were so long ago. Thanks for the info. I just hooked up the bottom to the thermowax, then matched the nips per size.
I got all the other lines finally figured out except one. The vac rack next to the BAC has 4 hard lines with one capped off. What goes to the other end of the capped line? The factory manual just shows 3 lines grouped together not 4.
10-08-15, 06:16 PM
#12
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Woodbridge, VA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts

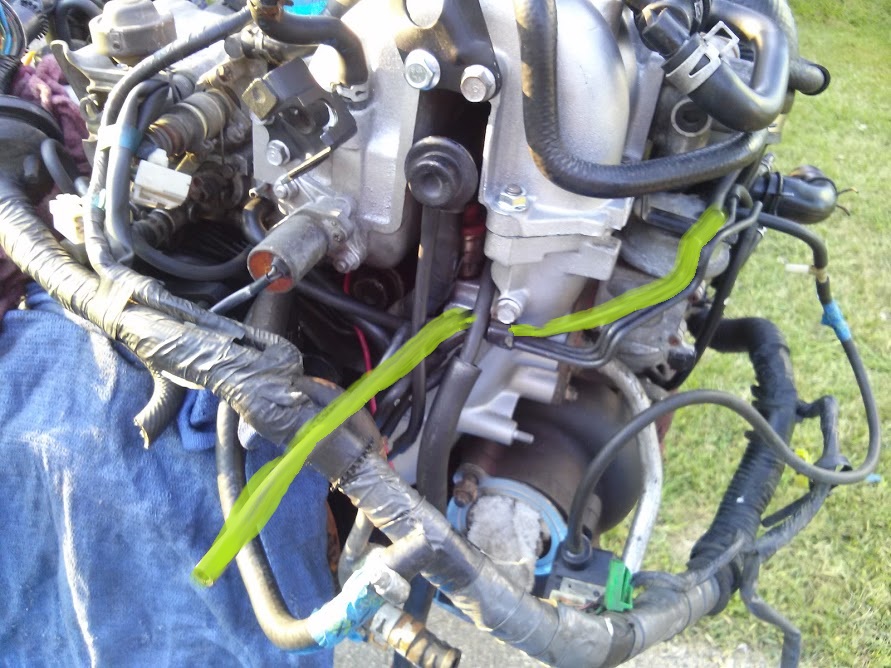

I am talking about the line in the attachment highlighted in green. It is in the hard lines that attach to the back of the Intake Manifold and connect to the ACV. Where does the other end of the capped line go?
