what are these connectors for???
11-20-04, 09:05 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

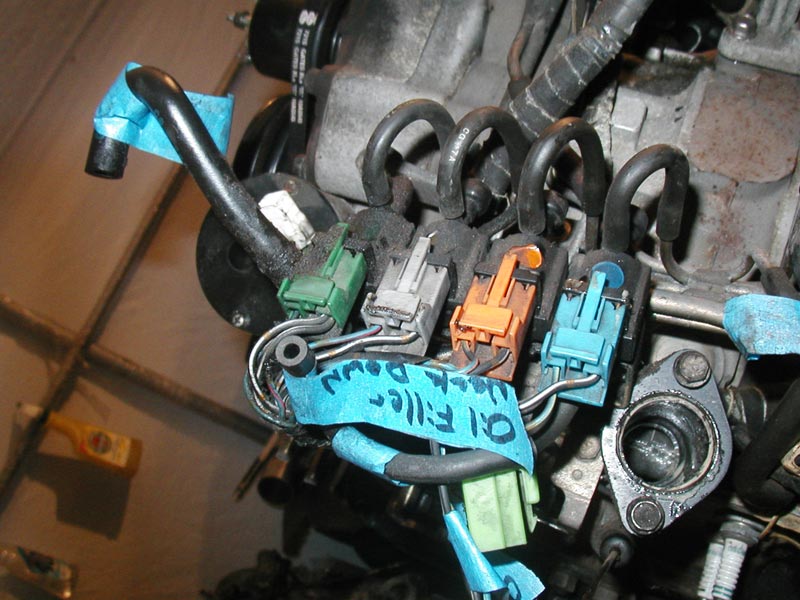

Left to right: Green is the twin scroll solenoild, Gray is the ACV Switching solenoid, Orange is the FPR solenoid and Blue is the most favored Relief solenoid. Free FSM's are online.
11-20-04, 09:26 PM
#6
i am legendary
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dallen
Depends on if you plan to keep the stock computer. The CPU won't work correctly without lots of modification if you just disconnect the emmissions.
11-20-04, 09:45 PM
#7
Nurse I need 1300cc's NOW
Thread Starter
Originally Posted by HAILERS
Left to right: Green is the twin scroll solenoild, Gray is the ACV Switching solenoid, Orange is the FPR solenoid and Blue is the most favored Relief solenoid. Free FSM's are online.
green
i wanna remove twin scroll
grey
i already removed acv
orange
that will stay
blue
no idea what that does
Trending Topics
11-21-04, 12:07 AM
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Blue controls the Relief valve in the ACV. Free FSM's online.
The CPU effects the emissions in no form or fashion. Turn signals...yes. Idiot lights....yes. And other non-sense...yes....CPU. Free FSM online or can be bought from MAZDATRIX.....for a nominal fee plus tax/shipping.
The CPU effects the emissions in no form or fashion. Turn signals...yes. Idiot lights....yes. And other non-sense...yes....CPU. Free FSM online or can be bought from MAZDATRIX.....for a nominal fee plus tax/shipping.
