what is this ???? pics inside
both of these are on the passanger side of the car behind the headlight what are they for?

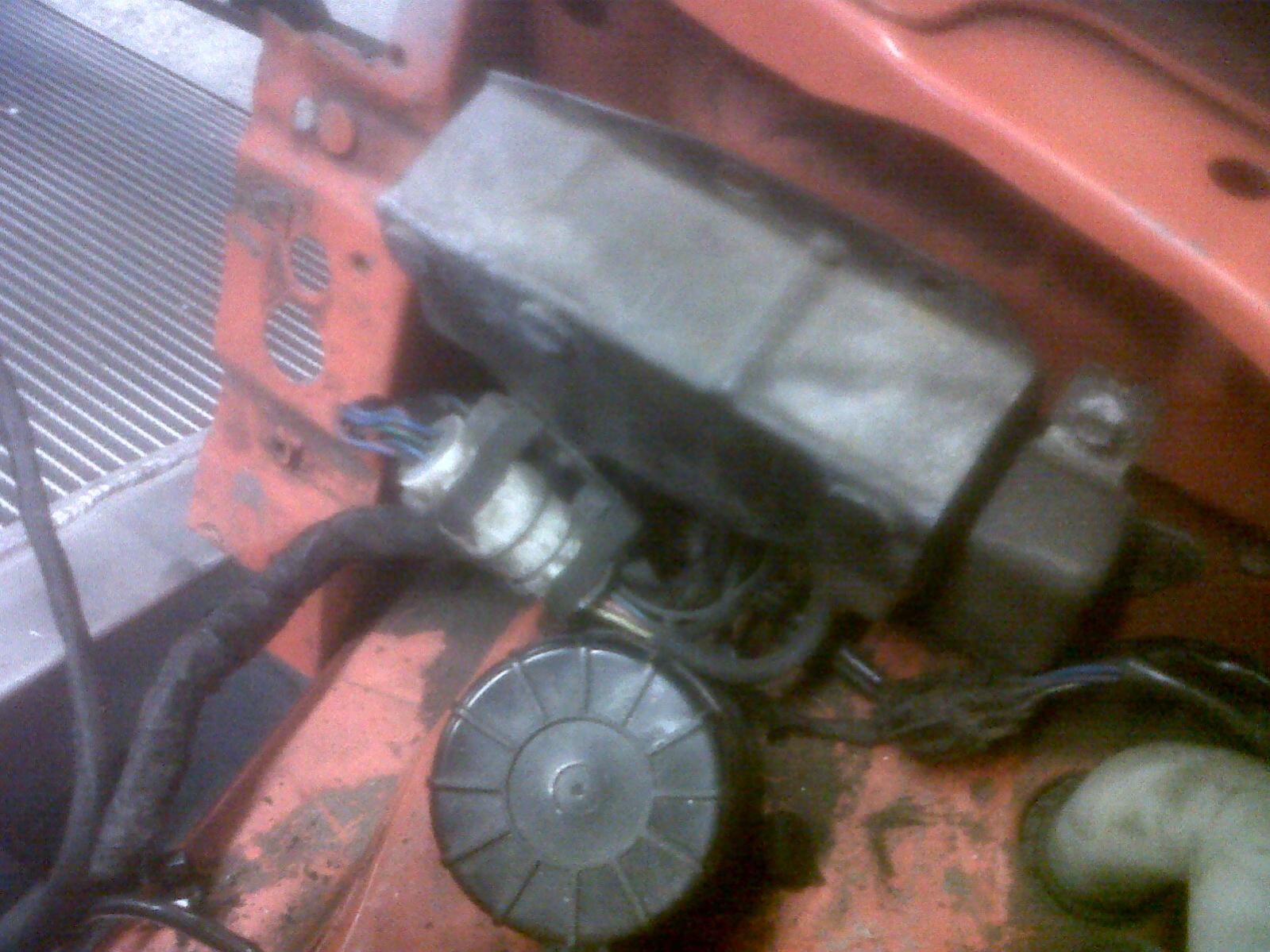

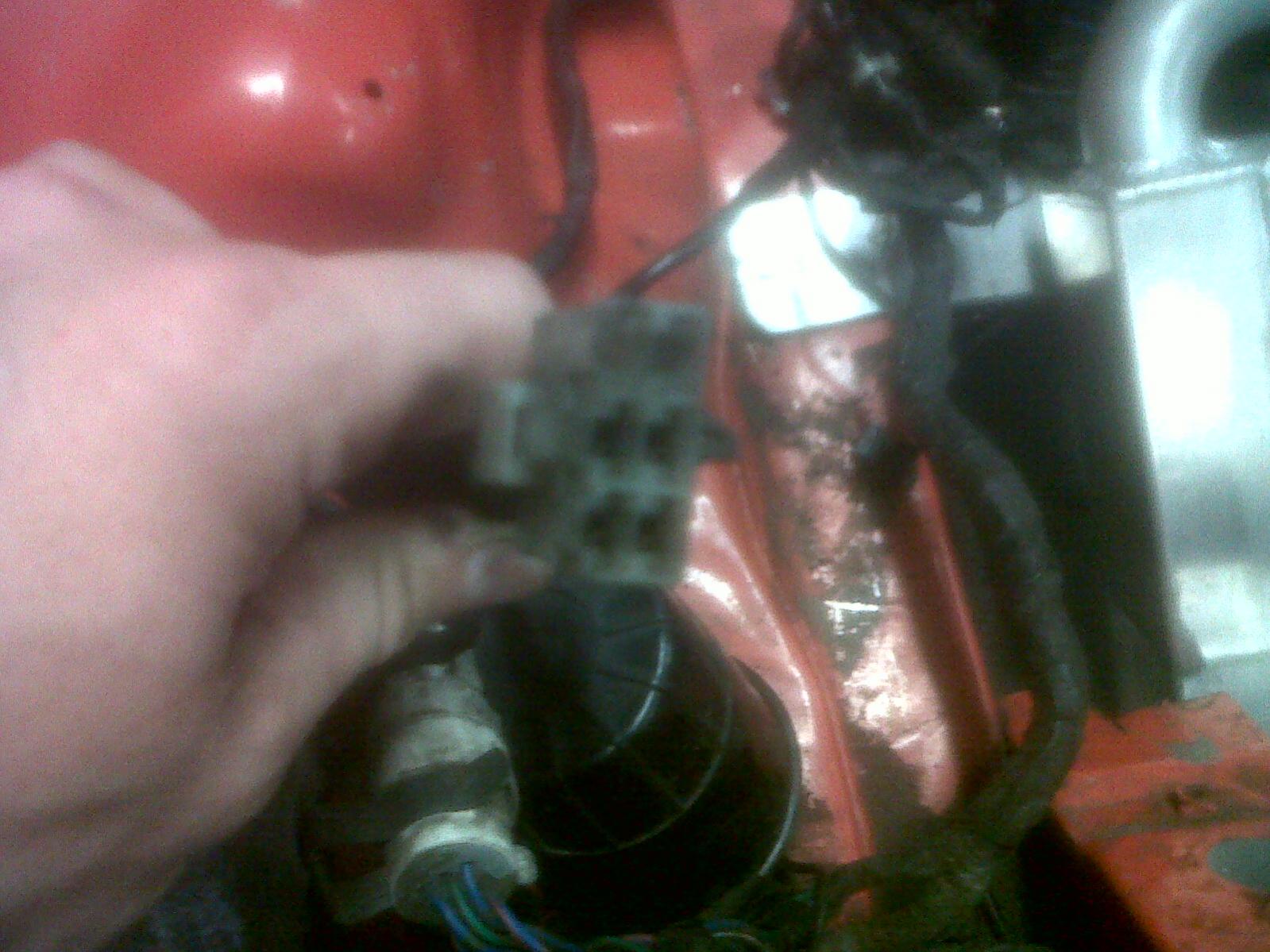

the connector is a six pin but only four of them are used.and the metal box
the connector is a six pin but only four of them are used.and the metal box
06-26-12, 07:55 AM
#3
Actually, the fuel pump resistor relay is located underneath the air box. What is pictured is the solenoid resistor box used for low impedance injectors.
If the plug in the 1st pic has a B/R, W/B, W/R and W/Blue wires then it is for the Auto Adjust Suspension.
If the plug in the 1st pic has a B/R, W/B, W/R and W/Blue wires then it is for the Auto Adjust Suspension.
06-26-12, 09:01 AM
#6
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
It's a Vicinity Proximeter...you go outside the GTA and your Car blows up!
Connector is AAS.The silver thing is Resistor box.
If the car has it and has not bee modified by anyone then most likely the resistors are LO impedance.It makes the ECU see HI Impedance.
Doesn't the Megasquirt use the stock wiring anyways?.So really you should be worrying about that.Because it would see HI regardless of the injector impedance.
Connector is AAS.The silver thing is Resistor box.
If the car has it and has not bee modified by anyone then most likely the resistors are LO impedance.It makes the ECU see HI Impedance.
Doesn't the Megasquirt use the stock wiring anyways?.So really you should be worrying about that.Because it would see HI regardless of the injector impedance.
06-26-12, 09:09 AM
#7
Make It Happen!
iTrader: (11)
Join Date: Jun 2010
Location: Ontario, Canada
Posts: 522
Likes: 0
Received 0 Likes
on
0 Posts
Sorry Satch,
check page 50-34 of the wiring diagram The white connector there with (2 blue wires, 2 blue/red wires, a black/white wire and a green/red wire) is connector F-09 it is for the fuel pump relay and resistor. the resistor box for the fuel injectors is a different connector all together. You can see a pic of the injector resistor box here (at the bottom of the page)
https://www.rx7club.com/forum/showth...enoid+resistor
I just rebuilt my wiring harness because of a problem with the injector resistors and also just finished rewiring my fuel pump (to delete the fuel pump relay and resistor for my Power FC)
