what is the oil pressure for the turbo?
#1
Full Member
Thread Starter
Join Date: Nov 2005
Location: Vancouver, bc
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
what is the oil pressure for the turbo?
I think im giving my turbo too much oil pressure and its blowing oil past the seals. Ive tried three different turbos, and all the same billowing smoke. Ive also tried it with bypassing the turbo making it run like an NA and there is no smoke then.
So ive came to the conclusion that i must be giving the turbo too much oil pressure. If i have my math right, it should be around 8psi (F=P(A).. F = 60(.125) = ~8psi)
Its a NA-T and for some reason its been blowing oil past every turbo so far. The only other thing it could be is my drain is clogged or kinked or something. But I'll check that tomorow anyway.
Thanks,
Jason
So ive came to the conclusion that i must be giving the turbo too much oil pressure. If i have my math right, it should be around 8psi (F=P(A).. F = 60(.125) = ~8psi)
Its a NA-T and for some reason its been blowing oil past every turbo so far. The only other thing it could be is my drain is clogged or kinked or something. But I'll check that tomorow anyway.
Thanks,
Jason
#3
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

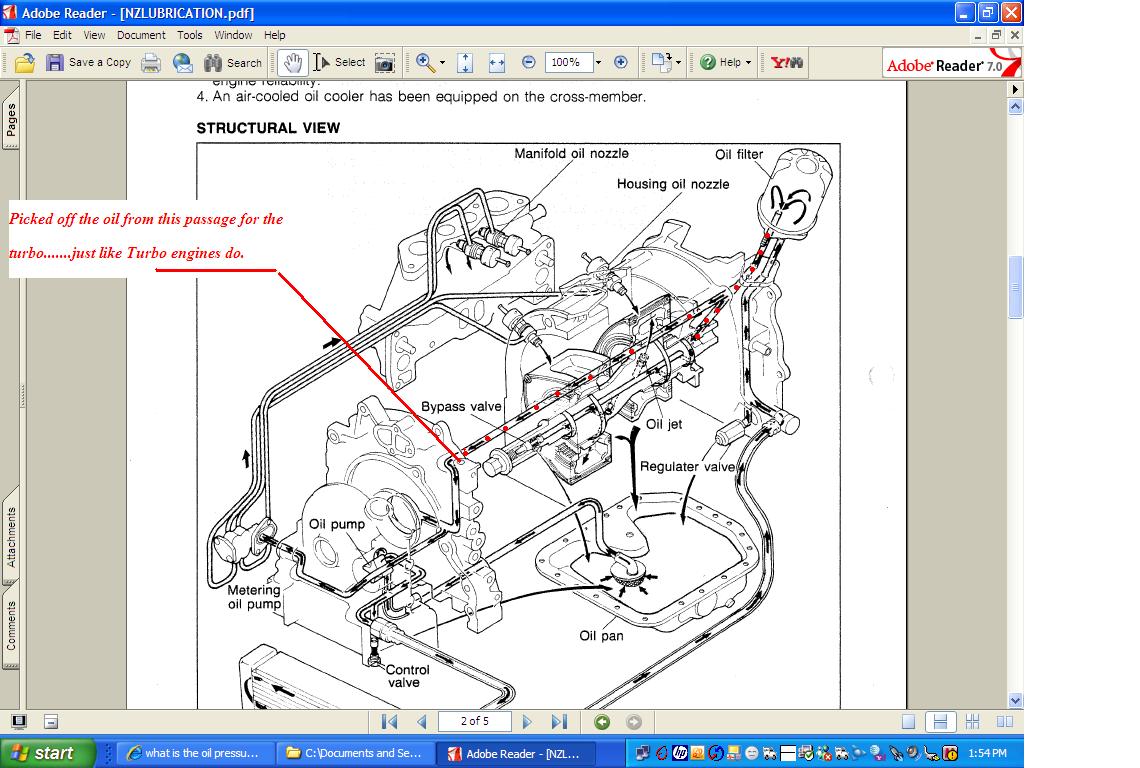

I've a na to turbo and the oil feed comes from the left side of the front side housing oil passage and that pressure is what you see on the oil pressure gauge. Never measured it at the turbo....but its coming right off the oil feed passage for the bearings.
Like mentioned above, I'd suspect your return line from the turbo to the front/cover/pan.
Like mentioned above, I'd suspect your return line from the turbo to the front/cover/pan.
#4
Full Member
Thread Starter
Join Date: Nov 2005
Location: Vancouver, bc
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
stock turbo, oil feed is comming off braided oil lines from the rear of my block. And the return is goin to the oil pan.
Yea, turns out when I tweaked the return pipe, it kinked it enough to build up the pressure.
Yea, turns out when I tweaked the return pipe, it kinked it enough to build up the pressure.
#7
Junior Member
Join Date: Aug 2002
Location: Hamiltron, New Zealand
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
A possible reason the oil is blowing past the seals could be a relation between oil pressure and volume into the turbo. Too much oil in the turbo under pressure and it's got to go somewhere if the drain can't cope. Possibly restrict the flow?
Trending Topics
#8
Needs shifter bushings!
No restrictions lol
Yeah id suggest that it worked wonders for philiptompkins lol https://www.rx7club.com/single-turbo-rx-7s-23/does-turbo-really-need-much-oil-796333/
