What the heck is this?!

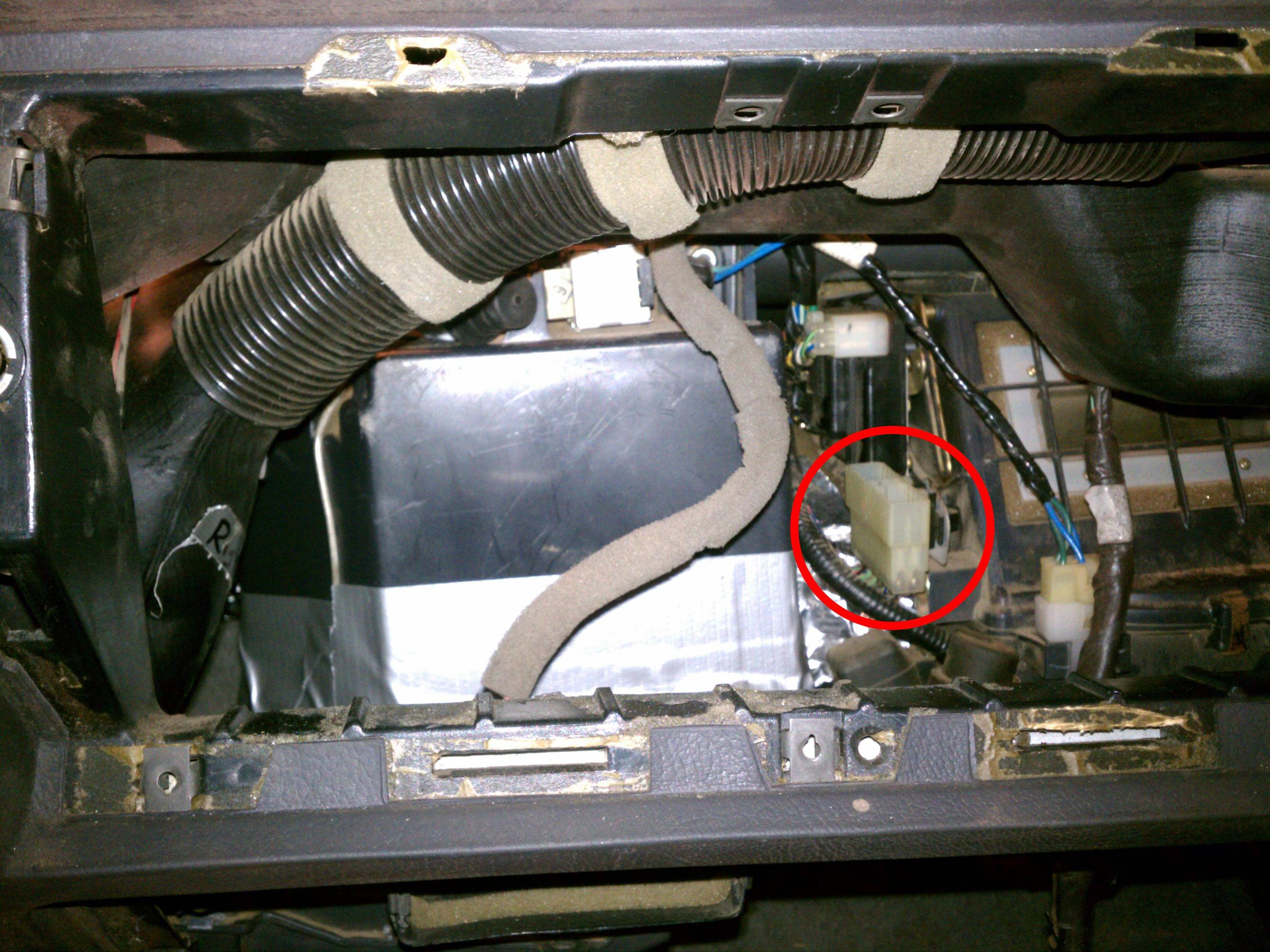

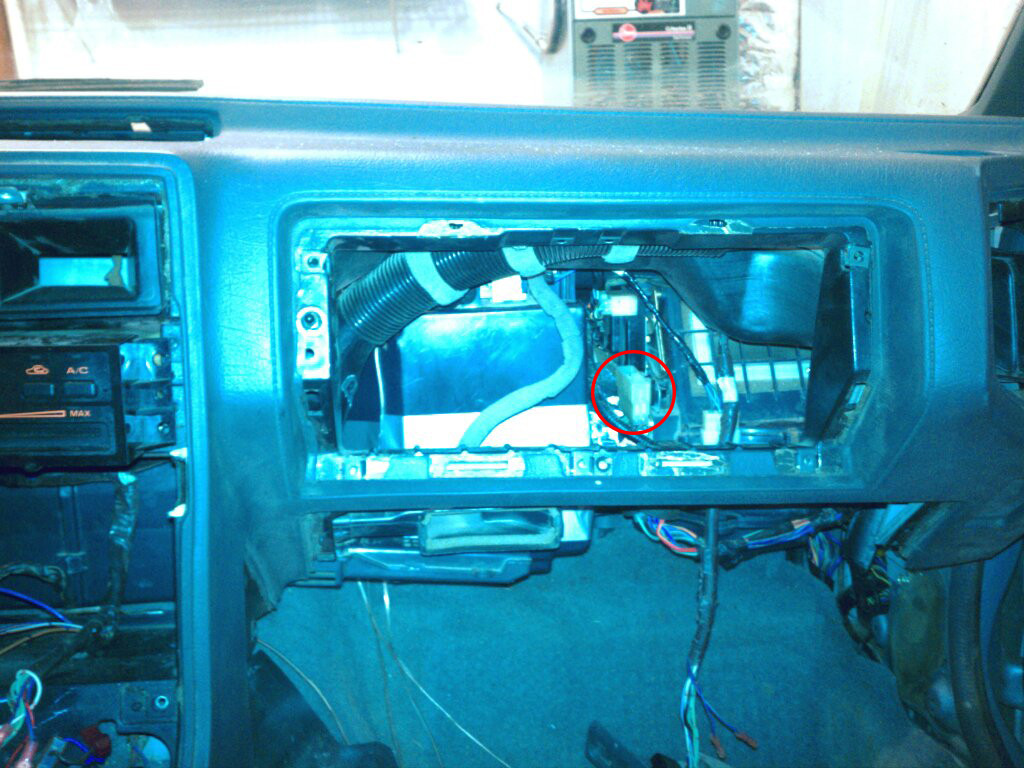

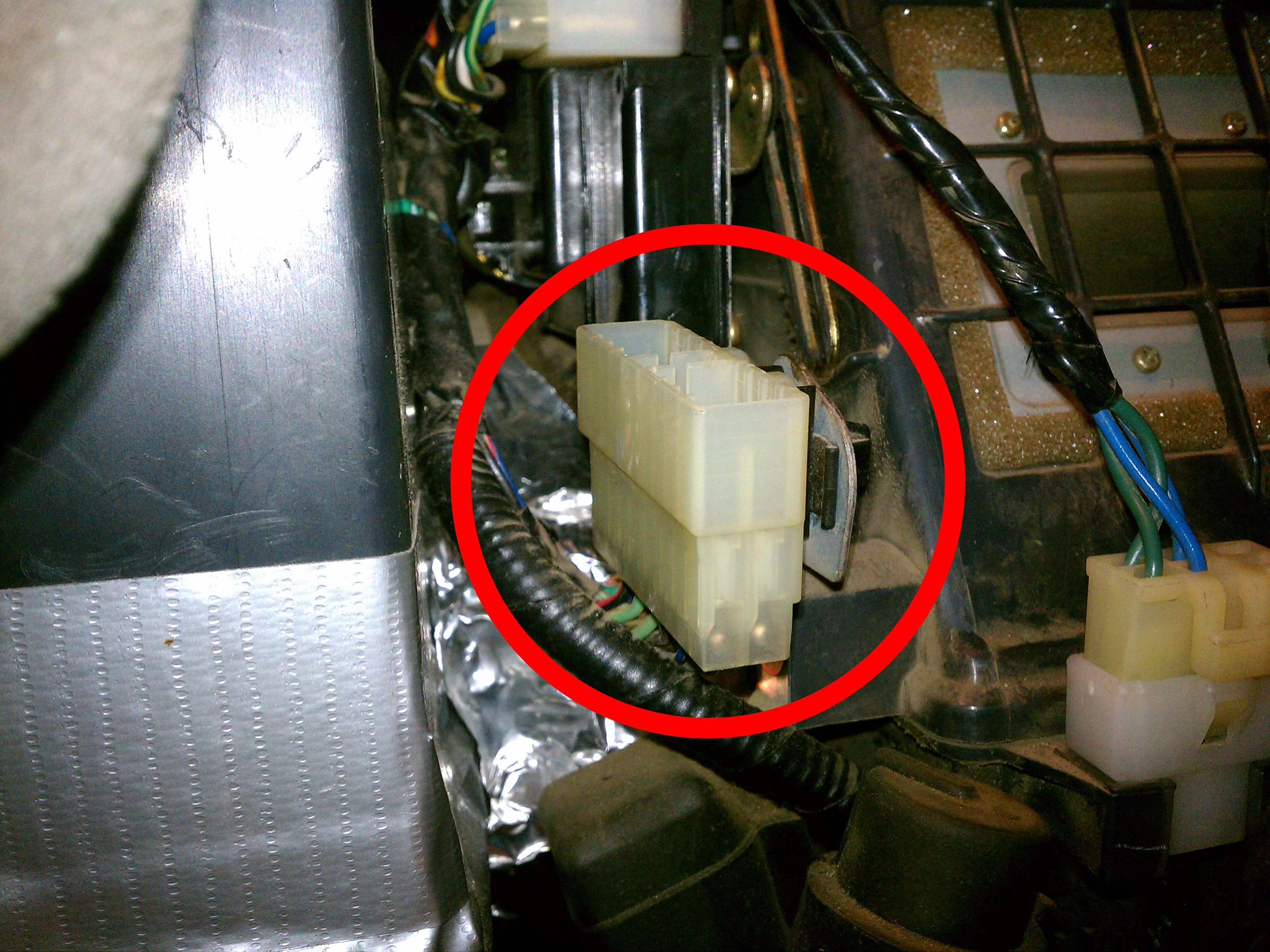

Okay, I'd like to know what plugs into the harness that is circled below.
BONUS POINTS if you can tell me whether or not the logicon/heater controller works (specifically will the fans blow) when this is NOT connected.
BONUS POINTS if you can tell me whether or not the logicon/heater controller works (specifically will the fans blow) when this is NOT connected.
03-15-12, 09:46 PM
#4
Full Member
Thread Starter
Join Date: May 2010
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
I do know that it is NOT where the speaker plugs in...close to it, but not it. I also know where the logicon plugs in, however mine is not turning on and everything else is. I've tried a new logicon with no luck. So trying to figure out what went wrong. Thinking this big empty plug may be related.
Trending Topics
03-17-12, 01:51 PM
#8
Full Member
Thread Starter
Join Date: May 2010
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
03-17-12, 10:45 PM
#9
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
thats not for the logicon.
The logicon connector is located at the firewall.
Pop the top dash plate off and you cab see it.
that connector is for AC.( I am pretty sure),I saw it all all my car that did NOT have A/C and it was just sitting there unplugged so I never worried about it!
The logicon connector is located at the firewall.
Pop the top dash plate off and you cab see it.
that connector is for AC.( I am pretty sure),I saw it all all my car that did NOT have A/C and it was just sitting there unplugged so I never worried about it!
