What do i attach this vaculm line to?
Thread Starter
Full Member
Joined: May 2007
Posts: 80
Likes: 0
From: knoxville TN
What do i attach this vaculm line to?

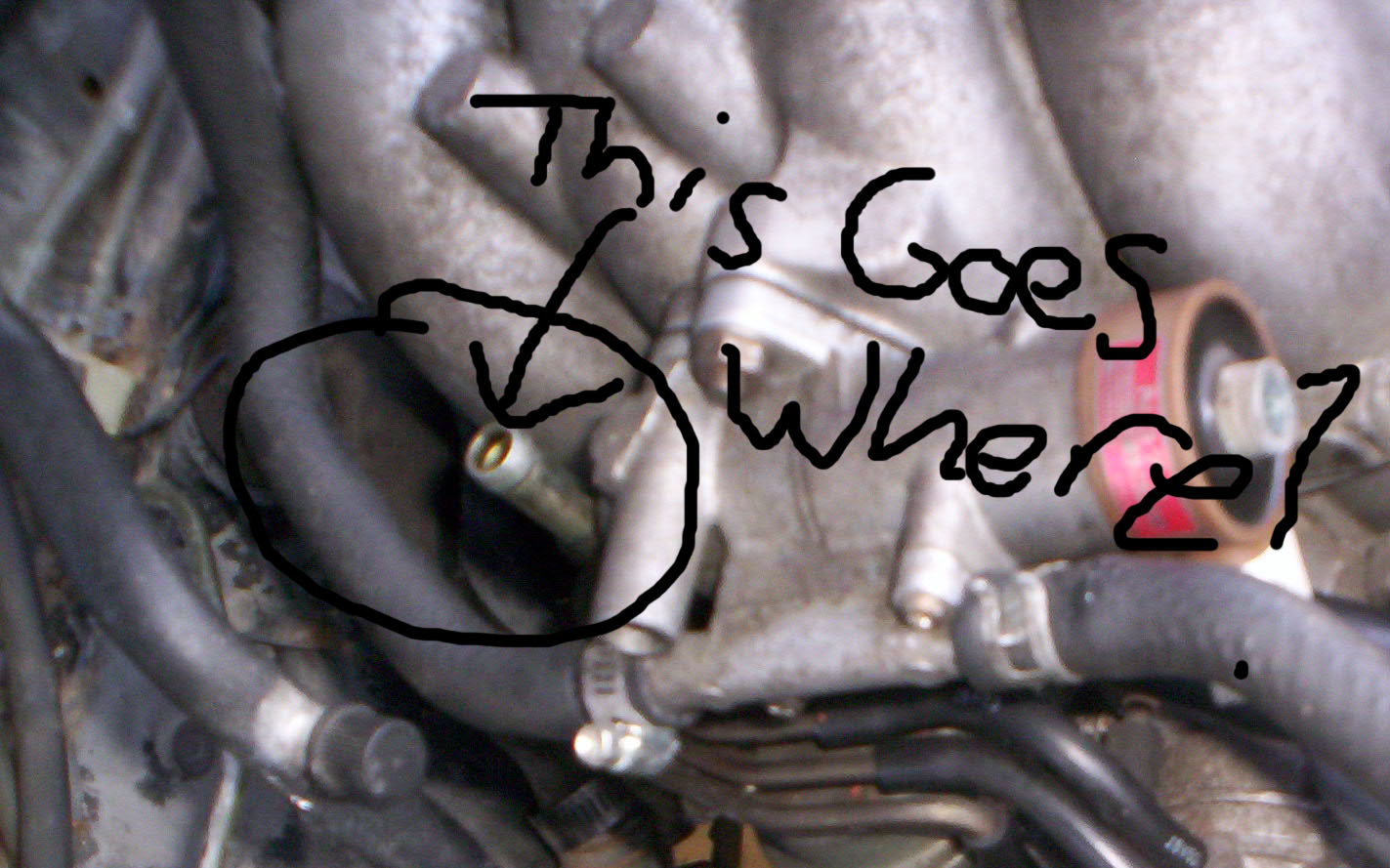

what do I attach to this vaculm line. it is quite a large one and im not sure as to where it went. I did an engine swap and have no reference from the previous engine.
If I had to guess I would say that is a JDM engine that you swapped in.
You can cap off that connection as it isn't needed in a US rx7. The member above is correct in saying though that it was used for the brake booster on that car the motor came out of.
Mike
You can cap off that connection as it isn't needed in a US rx7. The member above is correct in saying though that it was used for the brake booster on that car the motor came out of.
Mike
Trending Topics
lol, wow didn't know you could learn anymore on these HAILERS.
My engine has the same spot that was not used when the air bypass was installed and it's just plugged after doing research on them. The US models don't have those. Not sure why the JDM ones did, guess they just wanted it in another spot. However it is a great place to hook up for extra vaccum sources.
Mike
My engine has the same spot that was not used when the air bypass was installed and it's just plugged after doing research on them. The US models don't have those. Not sure why the JDM ones did, guess they just wanted it in another spot. However it is a great place to hook up for extra vaccum sources.
Mike
Last edited by BushyTea; May 24, 2007 at 12:47 AM.
The Cause of Death
Joined: Mar 2004
Posts: 2,202
Likes: 2
From: New York
The Cause of Death
Joined: Mar 2004
Posts: 2,202
Likes: 2
From: New York
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Like the fellow said above, on a 87 TurboII, the brake booster feed line is on the back of the intake manifold next to the three or four small vacuum.
I need to stare at that picture then my engine. Maybe it's a JDM thing. But on a series four there's a nipple near the BAC that gets a hose from that nipple and goes to the Air Bypass Solenoid. I might be wrong because I've never seen a JDM.
I need to stare at that picture then my engine. Maybe it's a JDM thing. But on a series four there's a nipple near the BAC that gets a hose from that nipple and goes to the Air Bypass Solenoid. I might be wrong because I've never seen a JDM.
Senior Member
Joined: Nov 2005
Posts: 541
Likes: 0
From: united states
i agree with hailers. i also think it is the to the airbypass valve and from the air bypass valve it goes to the intercooler. im not totally sure being that my car and motor are over 200 miles away or i would check. it may be to the brake booster but i think that line on the us motors are by the vacuum nipples on upper intake on the firewall side. i almost think that there may be a nipple from the bacv to the air by pass valve thats what makes me think it may be a brake booster. i guess we would have to know is it us or jdm
It is for the brake booster on a JDM. Those come on JDM engines at least on the S4 models.
Again, had it on mine when the Air Bypass was installed and it never went to anything. Capped it off and it's been that way for 3 years now. On a US car it becomes an extra vaccum source.
Mike
Again, had it on mine when the Air Bypass was installed and it never went to anything. Capped it off and it's been that way for 3 years now. On a US car it becomes an extra vaccum source.
Mike
I'm a boost creep...
Joined: Jan 2002
Posts: 15,608
Likes: 8
From: Auckland, New Zealand
Originally Posted by HAILERS
And all this time I thought it went to the Air Bypass Solenoid.
Originally Posted by BushyTea
My engine has the same spot that was not used when the air bypass was installed...
Originally Posted by 2713ddddavid
As I just removed the Air Bypass Solenoid today. Thats exactly what it is for.
Originally Posted by Blackfc3srx7
Strange on my S4 n/a its a coolant line
It's the brake booster vac line, as mentioned at the top of the thread before all you clowns got involved.

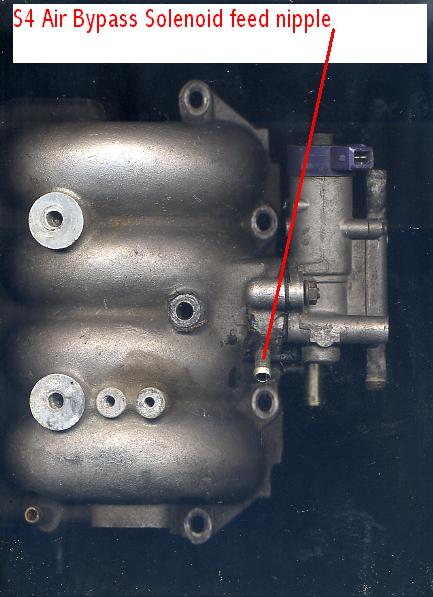

And it not a "JDM" thing, it's for RIGHT HAND DRIVE engines. The angle that photo was taken at makes it look close to where the AWS solenoid nipple is on US UIM's, but as you can see in this photo, it's not.
Holy mass confusion Batman...
It's the brake booster vac line, as mentioned at the top of the thread before all you clowns got involved. And it not a "JDM" thing, it's for RIGHT HAND DRIVE engines.
The angle that photo was taken at makes it look close to where the AWS solenoid nipple is on US UIM's, but as you can see in this photo, it's not.
It's the brake booster vac line, as mentioned at the top of the thread before all you clowns got involved.
And it not a "JDM" thing, it's for RIGHT HAND DRIVE engines. The angle that photo was taken at makes it look close to where the AWS solenoid nipple is on US UIM's, but as you can see in this photo, it's not.
Fast when it works
Joined: Oct 2005
Posts: 267
Likes: 0
From: Missoula MT usa
Close, the air bypass solenoid isnt on this manifold because the jdm doesnt have it. Look closer at the picture and you see it comes from behind the BAC rather than just above it on the uim.
I'm a boost creep...
Joined: Jan 2002
Posts: 15,608
Likes: 8
From: Auckland, New Zealand
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
It's really boring when someone posts a picture of a Right Hand JDM engine. Uggggh.

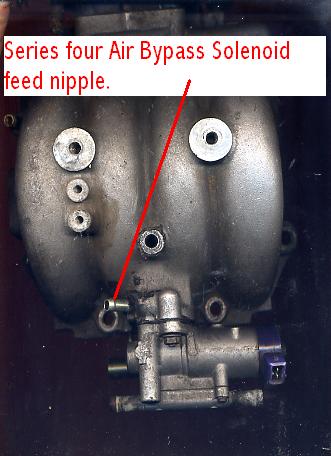

Here's a decent USA, series four, intake manifold showing the nipple that cause international conflict.
Here's a decent USA, series four, intake manifold showing the nipple that cause international conflict.
Last edited by HAILERS; May 26, 2007 at 07:37 AM.
