Water Pump Modification
08-04-03, 10:43 PM
#1
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
Water Pump Modification
Interesting thoughts brought up by Snrub in the Canadian forum, some of which I had been meaning to ask over here.
(Special thanks to renns for the free parts
)
Well, I went ahead and tore apart a water pump.
Heres some pics.
(I'll be posting information with pictures, so do your best to not interrupt me until you see my last post where I will say I'm done posting pics. )

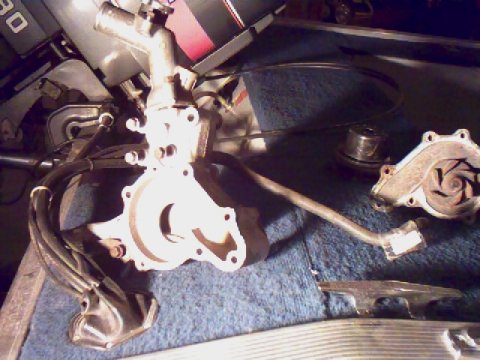

Pump housing:
(Special thanks to renns for the free parts
)
Originally posted by Snrub
I was thinking a water-pump pully that would slow it the water pump down so it wouldn't cavitate the coolant. Anyone know how that would effect normal conditions such as lower rev long trip highway heat disipation? Other heat suggestions?
I was thinking a water-pump pully that would slow it the water pump down so it wouldn't cavitate the coolant. Anyone know how that would effect normal conditions such as lower rev long trip highway heat disipation? Other heat suggestions?
Heres some pics.
(I'll be posting information with pictures, so do your best to not interrupt me until you see my last post where I will say I'm done posting pics.
)Pump housing:
08-04-03, 10:49 PM
#2
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts

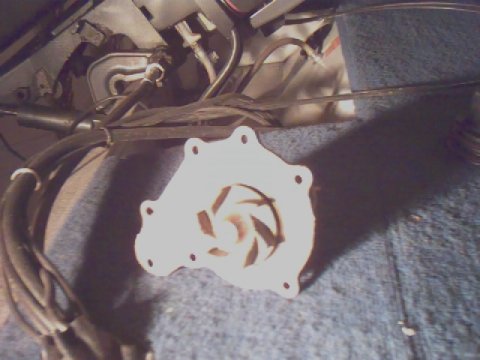

One thought I had would be is does anyone think there would be anything to be gained by modified fins on the pump itself?
Have a look.
(*Cough* - Better view of the fins maybe in the 1st pic.. Stupid cheap digital camera..)
Have a look.
(*Cough* - Better view of the fins maybe in the 1st pic.. Stupid cheap digital camera..)
08-04-03, 11:12 PM
#6
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
Re: Water Pump Modification
Originally posted by Black13B
(I'll be posting information with pictures, so do your best to not interrupt me until you see my last post where I will say I'm done posting pics. )
(I'll be posting information with pictures, so do your best to not interrupt me until you see my last post where I will say I'm done posting pics.
)
If the forum wouldn't timeout EVERY time I upload it wouldn't be so bad..
NOT done..
08-04-03, 11:22 PM
#7
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
STUPID SERVERS.
I am forced to to use my own hosting, where they will turn to big fat X's in mere weeks. So much for having pics for anyone who uses search!
OK.
I realized that you have to retain the shape, due to the pump design itself. Not worth messing with.
I am forced to to use my own hosting, where they will turn to big fat X's in mere weeks. So much for having pics for anyone who uses search!
OK.
I realized that you have to retain the shape, due to the pump design itself. Not worth messing with.
Last edited by Black13B; 08-04-03 at 11:29 PM.
Trending Topics
08-04-03, 11:35 PM
#9
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
Finally:

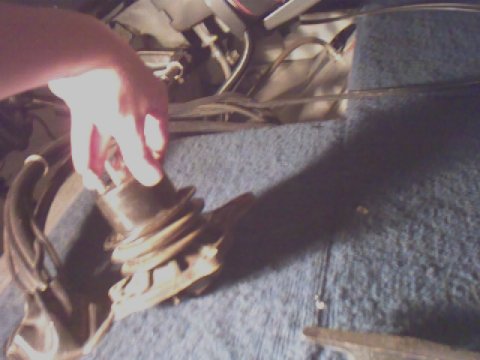

The pulley (in your hand) is very light, and where it mounts is fairly thin.
Machining new one(s) wouldn't be too tough I don't think.
A larger diameter pulley would result in a slower spin, which in turn would be better for higher RPMs, right?
One important thing I forgot to mention was this is for cars who see higher RPMs than most daily drivers. Snrub noticed his car got much hotter while racing at the track, and this is how the topic came about. A more efficient pump at higher RPM.
One thing I wanted to know (if anyone knows) is what is the most efficient engine speed (in turn, making the pump speed) for the most flow? Or is anything closer to idle speed best?
Would a bigger pulley (depending on how much bigger) make a big difference? I would think that it would, however thoughts are always welcome (yep, I'm done posting pics).
Edit: Radical Idea. Shave off 3 of the 6 fins on the inside of the pump?
Comments! Now!
The pulley (in your hand) is very light, and where it mounts is fairly thin.
Machining new one(s) wouldn't be too tough I don't think.
A larger diameter pulley would result in a slower spin, which in turn would be better for higher RPMs, right?
One important thing I forgot to mention was this is for cars who see higher RPMs than most daily drivers. Snrub noticed his car got much hotter while racing at the track, and this is how the topic came about. A more efficient pump at higher RPM.
One thing I wanted to know (if anyone knows) is what is the most efficient engine speed (in turn, making the pump speed) for the most flow? Or is anything closer to idle speed best?
Would a bigger pulley (depending on how much bigger) make a big difference? I would think that it would, however thoughts are always welcome (yep, I'm done posting pics).
Edit: Radical Idea. Shave off 3 of the 6 fins on the inside of the pump?
Comments! Now!
Last edited by Black13B; 08-04-03 at 11:51 PM.
08-05-03, 12:00 AM
#11
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
If they made one?
I'd much rather modify my own if possibly to improve it any.. However if modifying a stock one yeilds next to nil for results, then I would have to get another one..
I'd much rather modify my own if possibly to improve it any.. However if modifying a stock one yeilds next to nil for results, then I would have to get another one..
08-05-03, 11:34 AM
#13
I did some EXTENSIVE searching and found the following:
Sounds like a reasonable solution.
I don't think removing fins would be a good idea. You could end up with more turbulence than when you started. Fluid dynamics is not intuitive.
Decreasing the speed of the water pump would probably be the best way to go (if you didn't want to do the polishing thing.)
Originally posted by BLUE TII
Polish the surface of the fins and knife edge their backside.
Cavitation is caused by excessive turbulence- the above mentioned will cut the turbulence down.
Polish the surface of the fins and knife edge their backside.
Cavitation is caused by excessive turbulence- the above mentioned will cut the turbulence down.
Sounds like a reasonable solution.
I don't think removing fins would be a good idea. You could end up with more turbulence than when you started. Fluid dynamics is not intuitive.
Decreasing the speed of the water pump would probably be the best way to go (if you didn't want to do the polishing thing.)
08-05-03, 11:43 AM
#14
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by eyeoutthere
I did some EXTENSIVE searching and found the following:
I did some EXTENSIVE searching and found the following:
I saw that.I'm not accepting one response as "the answer". I'm looking for thoughts or input on modification.
Decreasing the speed of the water pump would probably be the best way to go (if you didn't want to do the polishing thing.)
08-05-03, 12:23 PM
#16
Full Member
Join Date: Jul 2003
Location: Albany, NY
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
I guess if the blades were more steamlined and polished when they cut into the water they would cause less disturbance and have less resistance so it would use less power to turn? I don't know too much about this stuff so just throwing it out there and keeping post alive
08-05-03, 02:58 PM
#18
Senior Member
Join Date: Apr 2001
Location: Long Beach, CA, USA
Posts: 265
Likes: 0
Received 0 Likes
on
0 Posts
Cavitation is caused by low pressure areas behind the impeller blades. I doubt you're going to remedy that with any modification you could make to the impeller.
Rob
Rob
08-05-03, 05:37 PM
#21
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Aaron Cake
Underdrive pullies.
Underdrive pullies.
Originally posted by Project84
Ya, they sell these you know....
Ya, they sell these you know....
This is not necessarily for my own application. Perhaps a replacement pulley that can be installed before going to the track, and can be replaced. Removing the pulley itself is not a tedious task.
I would have liked to hear thoughts on preventing cavatation, but looks like theres no real solution I haven't heard before this..
Modifying fins was just something that popped into my head, hence "radical idea".
Bad idea then, I take it?Also:
Originally posted by Black13B
One thing I wanted to know (if anyone knows) is what is the most efficient engine speed (in turn, making the pump speed) for the most flow? Or is anything closer to idle speed best?
One thing I wanted to know (if anyone knows) is what is the most efficient engine speed (in turn, making the pump speed) for the most flow? Or is anything closer to idle speed best?
Last edited by Black13B; 08-05-03 at 05:46 PM.
08-05-03, 06:47 PM
#23
Eats, Sleeps, Dreams Rotary
iTrader: (1)
Join Date: Jun 2001
Location: London, Ontario, Canada
Posts: 3,106
Likes: 0
Received 0 Likes
on
0 Posts
Since he put my post in here, I still want to know if changing the pully is going to effect the cooling if I'm boosting for prolonged periods on the highway in the 3-4k range.
08-05-03, 08:33 PM
#24
In Full Autist Cosplay
Thread Starter
iTrader: (1)
Join Date: Nov 2002
Location: Alberta
Posts: 2,330
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Aaron Cake
Electric water pump won't cavitate...
Electric water pump won't cavitate...
Sounds like an excellent mod for a track car!
Not for street use obviously.. At least I wouldn't imagine.. could it?
May sound silly to the rotary community (seen it done on V8 drag cars), but, how about an electric motor (mount to stock air pump location?) with a small belt to power the pump?
May be something worth looking into for anyone who drives it on the road and doesn't mind doing a quick mod before seeing the track every now and again..
Again this isn't exactly for my purposes but for anyone else who may be seeking something of the like (eg - Snrub)
08-06-03, 12:05 PM
#25
Originally posted by Black13B
Anyone make one? Tough to install at all?
Sounds like an excellent mod for a track car!
Not for street use obviously.. At least I wouldn't imagine.. could it?
Anyone make one? Tough to install at all?
Sounds like an excellent mod for a track car!
Not for street use obviously.. At least I wouldn't imagine.. could it?
I don’t see why it wouldn’t work, seeing as thought the 13b doesn’t flow any more coolant then a large piston motor.
The problem is finding one for your car. Current draw may be another issue if you are using the stock alt and have other elc. accessories.
An electric WP for my TA runs about $150. Typically the pumps are mounted on the stock water pump housing and either use the existing impeller or come with their own.
