Walbro help
01-20-04, 03:49 PM
#1
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
Walbro help
Just kind of confused... on the stock pump there are 3 wires and on the walbro I have 2 a red and black.... what do I do now...
assembly is out .... walbro is mounted i guess, just stuck on the wiring.
assembly is out .... walbro is mounted i guess, just stuck on the wiring.
01-20-04, 04:14 PM
#2
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
I have no soldering iron or terminals... is it safe for me to just wrap the wire around the place where I bolt it ?
Or am I just asking to be blown up.
Or am I just asking to be blown up.
01-20-04, 04:23 PM
#3
Rotary Enthusiast
Join Date: Sep 2002
Location: Statesboro, GA
Posts: 1,233
Likes: 0
Received 0 Likes
on
0 Posts
i did mine with no problems, can't remember how the wiring was, sorry. ya, don't just wrap wires around stuff. there is no doubt that a spark is immenent followed by a boom. leave all the explosions to the motor.
one wire is probably to the fuel level sender. you are gonna have to find out which one it is
or maybe two are the fuel level sender and you ground the pump to the bracket. and the red is obviously the power wire.
one wire is probably to the fuel level sender. you are gonna have to find out which one it is
or maybe two are the fuel level sender and you ground the pump to the bracket. and the red is obviously the power wire.
01-20-04, 05:34 PM
#4
I R SAD PANDA W/O BAW
I just did mine over the weekend. Look at the old pump and it will say positive and negative and one extra ground going to the negative I believe. If you already cut the wires just match them up in length and you should be able to figure out which one is the extra ground. I just did the twist and tape method but taped it very very well.
01-20-04, 05:35 PM
#5
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
Ok so I guess I figured my wiring problem... I hope. I put black wire from walbro to where black wire was previously and same for the red except, there was an existing wire there I just attached onto as well. THe thired "gold/copper" wire I didnt even touch.
I put it all back in and now my car won't start...
I think it may be flooded from the fuel that was in the lines after I took the pump out. THe fuel just somehow made it into the engine...
now to refresh my memory... which plug(s) do I pull and which fuse(s). I know the EGI but the comp or inj or both.
I put it all back in and now my car won't start...
I think it may be flooded from the fuel that was in the lines after I took the pump out. THe fuel just somehow made it into the engine...
now to refresh my memory... which plug(s) do I pull and which fuse(s). I know the EGI but the comp or inj or both.
Trending Topics
01-20-04, 05:57 PM
#8
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by fc3seeker
Ok so I guess I figured my wiring problem... I hope. I put black wire from walbro to where black wire was previously and same for the red except, there was an existing wire there I just attached onto as well. THe thired "gold/copper" wire I didnt even touch.
I put it all back in and now my car won't start...
I think it may be flooded from the fuel that was in the lines after I took the pump out. THe fuel just somehow made it into the engine...
now to refresh my memory... which plug(s) do I pull and which fuse(s). I know the EGI but the comp or inj or both.
Ok so I guess I figured my wiring problem... I hope. I put black wire from walbro to where black wire was previously and same for the red except, there was an existing wire there I just attached onto as well. THe thired "gold/copper" wire I didnt even touch.
I put it all back in and now my car won't start...
I think it may be flooded from the fuel that was in the lines after I took the pump out. THe fuel just somehow made it into the engine...
now to refresh my memory... which plug(s) do I pull and which fuse(s). I know the EGI but the comp or inj or both.
01-20-04, 05:59 PM
#9
Full Member
Join Date: Nov 2003
Location: North York, Ontario
Posts: 233
Likes: 0
Received 0 Likes
on
0 Posts
dude, go out and buy a 20$ soldering iron...they're cheap and easy as hell to use and will save you a ton of headaches later on. Cars are exposed to rain, snow, dirt, extreme heat and cold and a all kinds of vibrations, all of which arn't too friendly to electrical connections. A good solder joint covered in heat shrink (a hair dryer works fine). Trust me, you'll be thankfull later.
01-20-04, 06:01 PM
#11
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by dubrc
dude, go out and buy a 20$ soldering iron...they're cheap and easy as hell to use and will save you a ton of headaches later on. Cars are exposed to rain, snow, dirt, extreme heat and cold and a all kinds of vibrations, all of which arn't too friendly to electrical connections. A good solder joint covered in heat shrink (a hair dryer works fine). Trust me, you'll be thankfull later.
dude, go out and buy a 20$ soldering iron...they're cheap and easy as hell to use and will save you a ton of headaches later on. Cars are exposed to rain, snow, dirt, extreme heat and cold and a all kinds of vibrations, all of which arn't too friendly to electrical connections. A good solder joint covered in heat shrink (a hair dryer works fine). Trust me, you'll be thankfull later.
01-20-04, 06:03 PM
#12
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Dan H

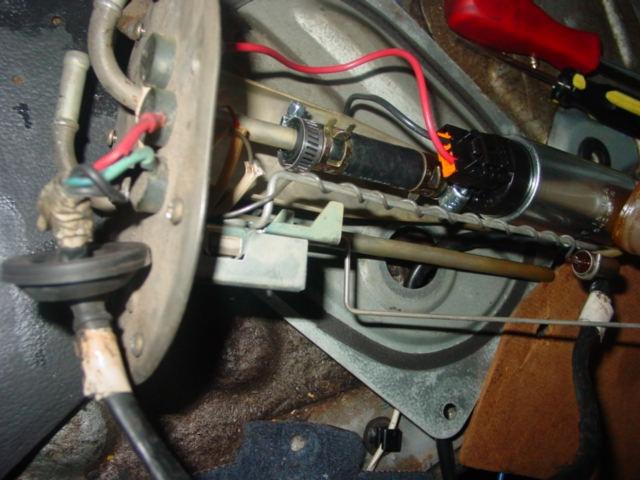

Red goes on that fitting on the right and put a bolt over it. The black one is grounded to the side of the metal piece.
Red goes on that fitting on the right and put a bolt over it. The black one is grounded to the side of the metal piece.
With what I have now... nothing is grounded to the metal piece.
01-20-04, 06:08 PM
#14
Zoom Zoom Boom!
Join Date: Mar 2003
Location: San Francisco, CA
Posts: 2,312
Likes: 0
Received 0 Likes
on
0 Posts
Damn, the server is being *** slow! Anyways, let me know how it goes. You can borrow my soldering iron if you want but make sure there is not a drop of fuel on the assembly.
Oh yeah, I doubt you flooded but I'm not too sure. Did you hear the fuel pump go on when you turn the key on the "On" position? The Walbro's are pretty loud.
Oh yeah, I doubt you flooded but I'm not too sure. Did you hear the fuel pump go on when you turn the key on the "On" position? The Walbro's are pretty loud.
01-20-04, 06:11 PM
#15
I R SAD PANDA W/O BAW
How many times did you try cranking it? I depressurized my fuel system but some fuel still came out. After the install it took me 2-4 cranks to get it started.
01-20-04, 06:23 PM
#18
I R SAD PANDA W/O BAW
It should be pretty loud mine is. I noticed it immediately. High pitched whirring sound. Did you remember to plug it in? I know it sounds stupid but I almost put the cover back on before plugging it in.
01-20-04, 06:27 PM
#19
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by ilike2eatricers
It should be pretty loud mine is. I noticed it immediately. High pitched whirring sound. Did you remember to plug it in? I know it sounds stupid but I almost put the cover back on before plugging it in.
It should be pretty loud mine is. I noticed it immediately. High pitched whirring sound. Did you remember to plug it in? I know it sounds stupid but I almost put the cover back on before plugging it in.
to the one beside the rear driver speaker ? the one that goes under the carpet...?
Last edited by fc3seeker; 01-20-04 at 06:31 PM.
01-20-04, 06:53 PM
#24
I R SAD PANDA W/O BAW
Yea thats the plug it goes through and under the metal plate and plugs into the top of the fuel pump if I remember correctly. Where is your black wire going? Looks like you totally got rid of the original wiring. What I did was cut and splice into the original wires. I think the black wire goes to the negative and the original 2nd ground splices together and the red goes to the positive.
01-20-04, 07:13 PM
#25
T2 Noob.
Thread Starter
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts

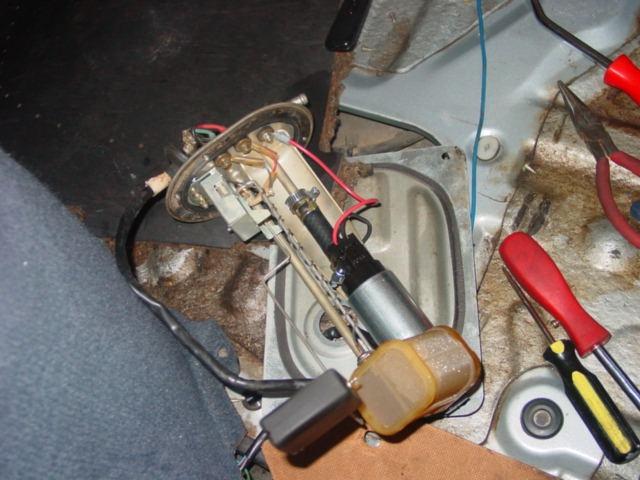

THe black wire went to the side of the metal piece...
Yes I got rid of the original... should I have kept it ?
what can i do now.... I dont really understand what your saying about splcing.. your gonna have to talk to me like im a 10 yr old.
Yes I got rid of the original... should I have kept it ?
what can i do now.... I dont really understand what your saying about splcing.. your gonna have to talk to me like im a 10 yr old.
