Voltage in dash 0.3v lower than batt voltage
#1
Full Member
Thread Starter
Join Date: Jan 2002
Location: Pasadena, CA
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Voltage in dash 0.3v lower than batt voltage
I am trying to troubleshoot electrical issues with my car (low voltage < 2Krpms) ; I'm not sure if it's a bum alternator, bad grounds, ghosts, etc.
I measured the voltage in my dash, in the cigarette lighter socket, and it is 0.3v lower than the battery voltage. Is this normal? If not, any recommendations on what might be suspect? (this is an S5 NA)
I'm going to go and redo all the big grounds (bat terminal, starter, ECU @ intake, shock tower, under T coil) when it's not raining outside, but are there some relays or anything else that would affect this drop or which are commonly problematic?
Thanks!
I measured the voltage in my dash, in the cigarette lighter socket, and it is 0.3v lower than the battery voltage. Is this normal? If not, any recommendations on what might be suspect? (this is an S5 NA)
I'm going to go and redo all the big grounds (bat terminal, starter, ECU @ intake, shock tower, under T coil) when it's not raining outside, but are there some relays or anything else that would affect this drop or which are commonly problematic?
Thanks!
#2
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
Considering the number of connections between the battery and the cig lighter, and how years of corrosion at each connection has built up over the years creating resistance at each of those connections, .03 volt drop is actually pretty darn good.
#5
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
Honest, I understood what you said. And I still stand by that .3v drop comparison between the battery and the cigarette lighter isn't bad at all.
#7
Rotary Freak
The power for the CIGAR goes (depending if the alt is putting out or not) from the battery.........to the engine bay fuse box.........thru the Main Fuse.......to the ignition switch...........thru the ignition switch............to the CIGAR fuse.........to the cigar receptacle.
But that same CIGAR fuse also feeds other items (remote mirrors etc) and the power from the ignition switch to the CIGAR fuse also feeds the 20a Audio fuse and whatever that audio fuse feeds into.

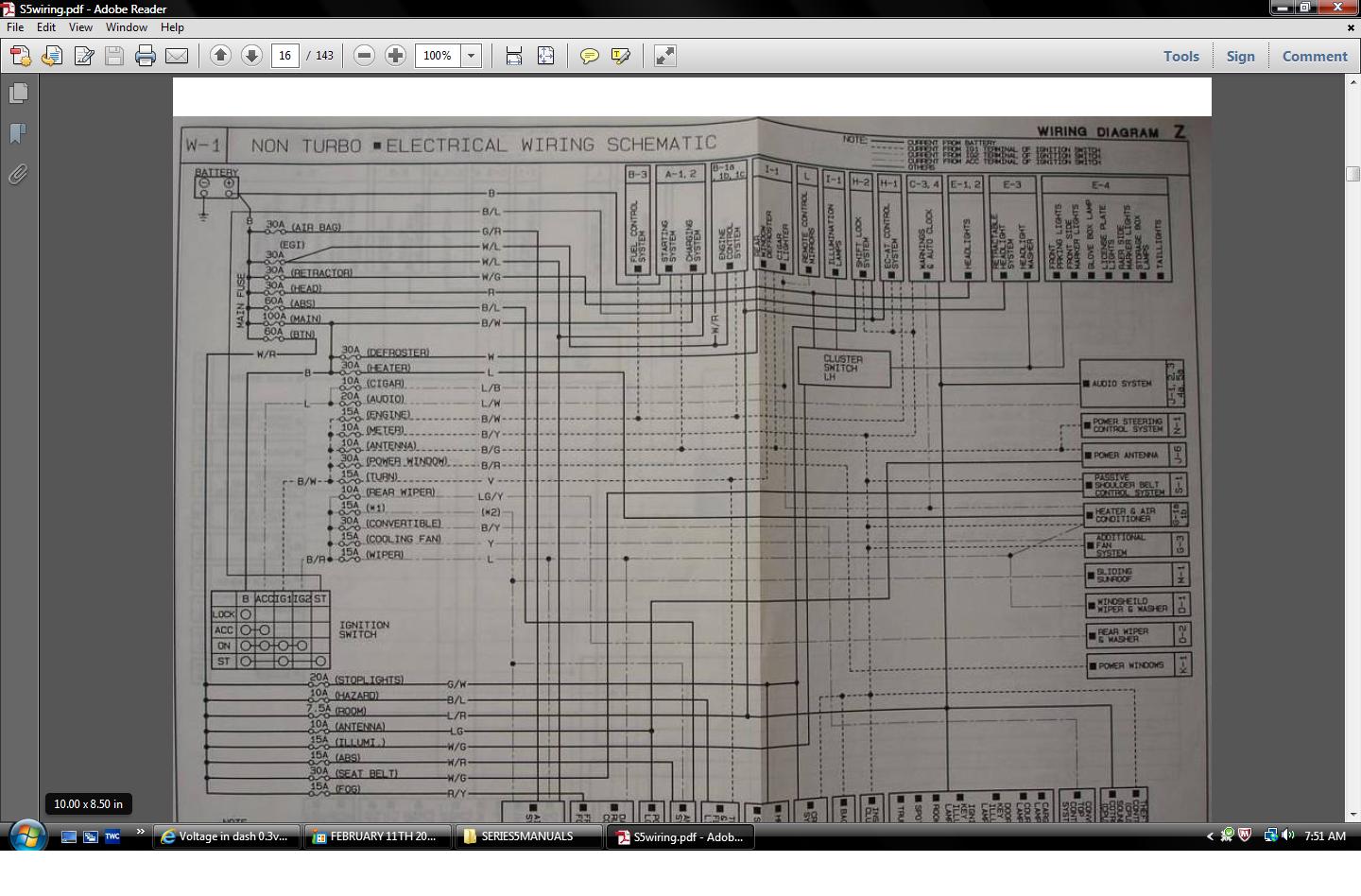

Look at the wiriing diagrams in the series five manual and page W-1 and you can see that path right there.
