TurboII2NV

is it possible to get rid of the vacuum nest below the upper intake on a TII
and just connect the fuel delivery and return directly to the fuel rail?? and just toss that stupid nest in the garbage?

Project84

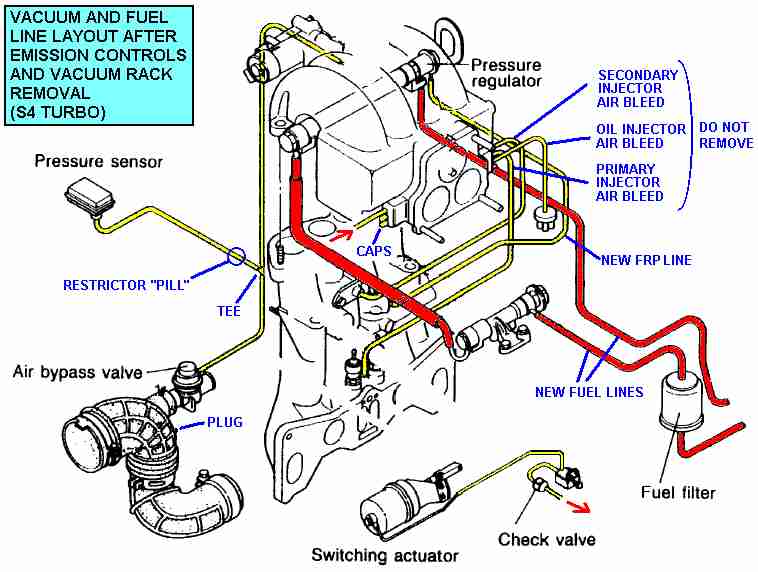

For a 86-88 TII, this is what you need to do.

miketreid

Do you have one of those for a N/A?

red_ricer

iTrader: (3)

A little off the subject but if you remove the air bypass valve when you make a TID and block the BAC off where do you run the boost sensor from?

VietFC

from the same spot. The BAC is above the boost sensor nipple.

TurboII2NV

thanks guys this helps a lot
it will be done

red_ricer

iTrader: (3)

Oh.....ok cool

baddassTurboII

Where do the oil injector air bleeds go?

baddassTurboII

Can you guys tell me where the injector bleeds and oil bleeds go? I have no clue,from the picture I cannot tell which hose goes where,also on the side where it say caps with the red arrow is ? do you cap all three lines? and last question, whats a restrictor pill?
