vacuum line mapping

OK so I think I have a vacuum line leak somewhere causing my engine to have an unstable idle and then to eventually die out. My question is does anyone have a diagram of where all the vacuum lines are located?

1987 T2 conversion

Reply Like

03-22-10, 02:15 PM

HAILERS

Join Date: May 2001

Location: FORT WORTH, TEXAS,USA

Posts: 20,563

Likes: 0

Received 21 Likes on 19 Posts

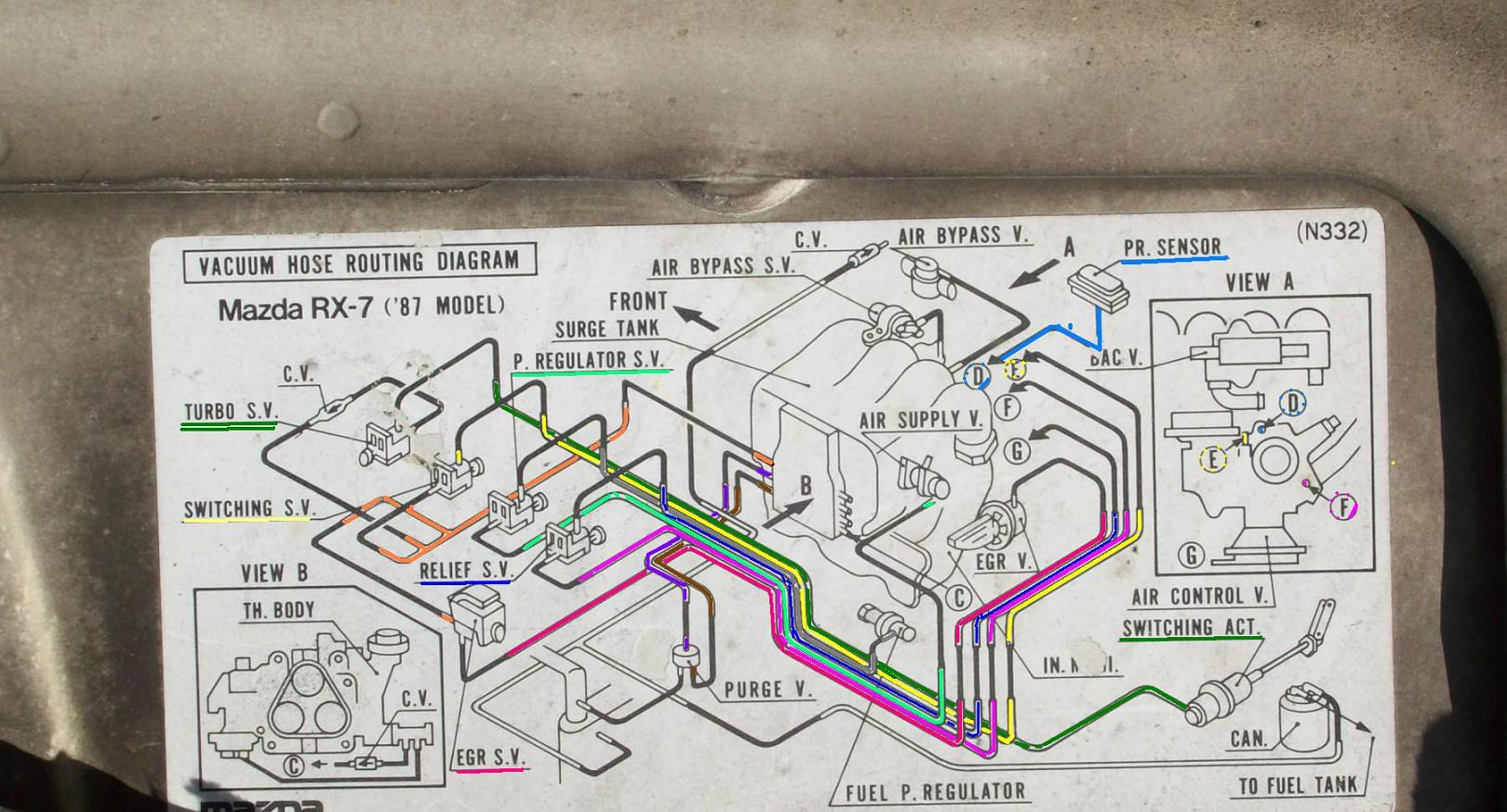

Attached Thumbnails

Reply Like

03-22-10, 10:36 PM

datz

GNARKILL

Join Date: Nov 2009

Location: phoenix, az

Posts: 551

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by HAILERS

hey hailers would you have a diagram like that for a s5?

Reply Like

03-22-10, 10:54 PM

calpatriot

Senior Member

Join Date: Aug 2009

Location: Los Angeles

Posts: 479

Likes: 0

Received 0 Likes on 0 Posts

How about the online FSM?
