The cars a Turbo 2 series 5, got either a vac leak or injector problem so thought f**k it, While i'm at it i'm going to pull the emissions.

So what i wanted to know before i start, is what size vac hose should i go out and buy. I imagine I need a few sizes like 3mm, 6mm etc.

I could probably work out what to bin myself but if someone has a Diagram of how everything should be set up after it's all removed that would be nice.

Thanks guys

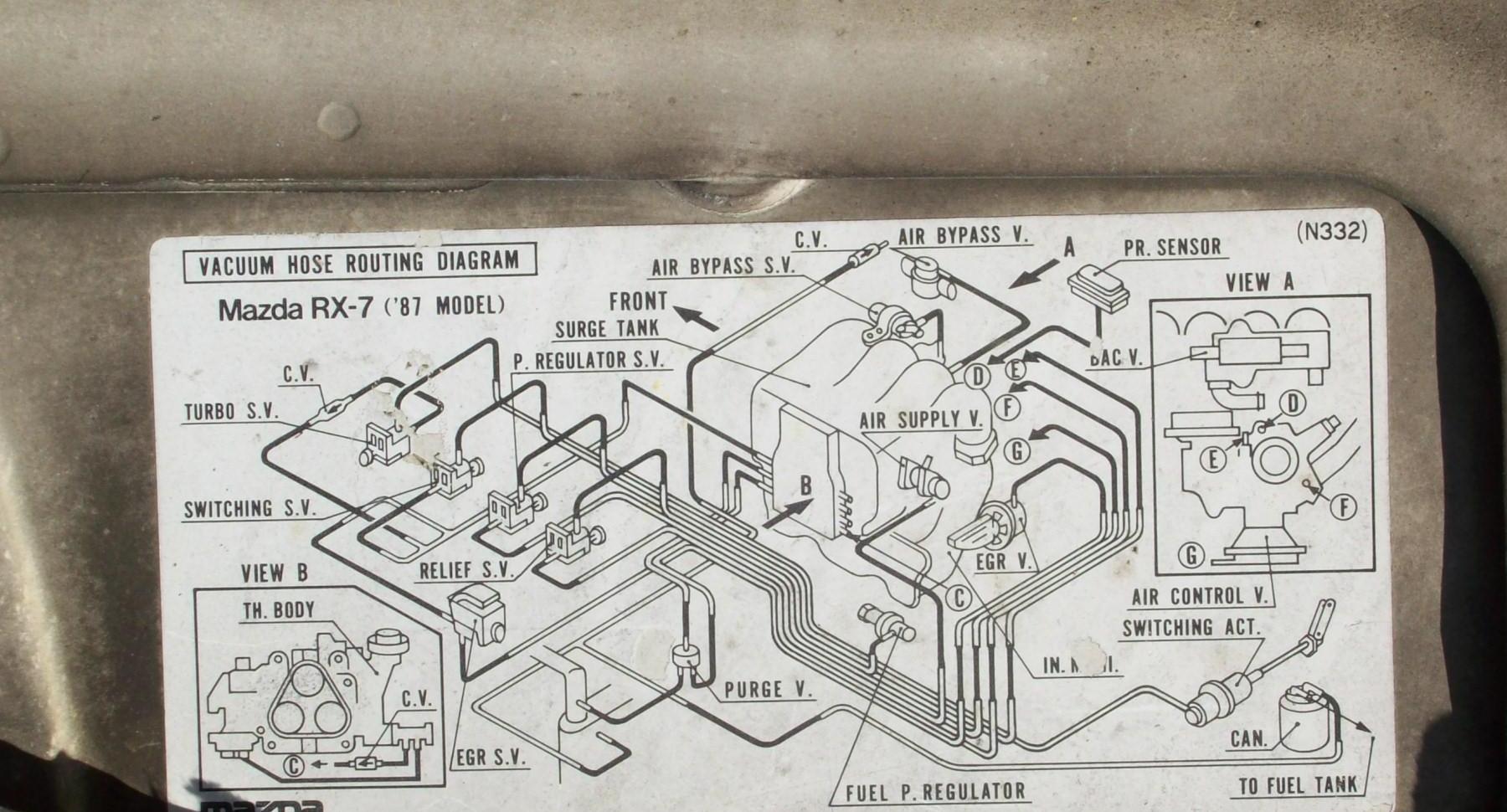

Most T2 USA version cars have a vacuum diagram attached to the underside of the hood. An example of a series FOUR is attached. Won't help you though.



3.5mm and 6mm hose
