vacuum hose help
year: 87
Model: turbo II
specifics: all stock

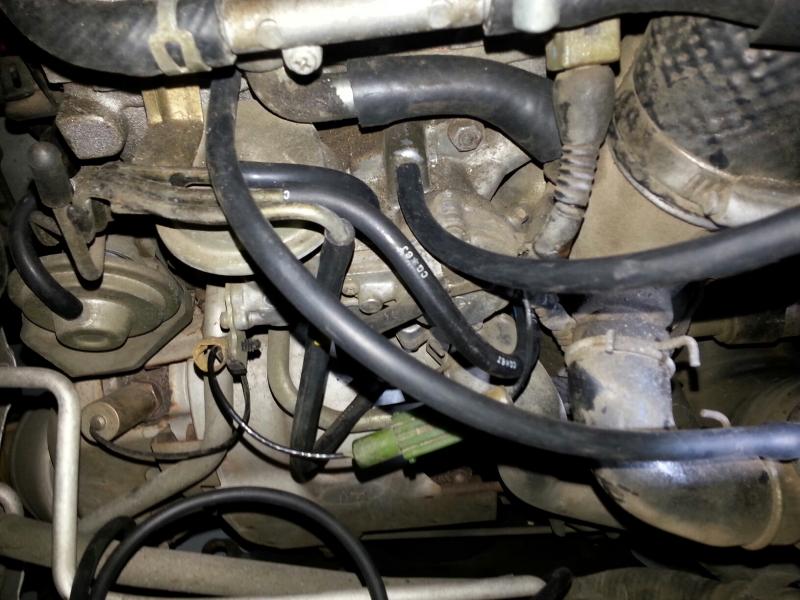

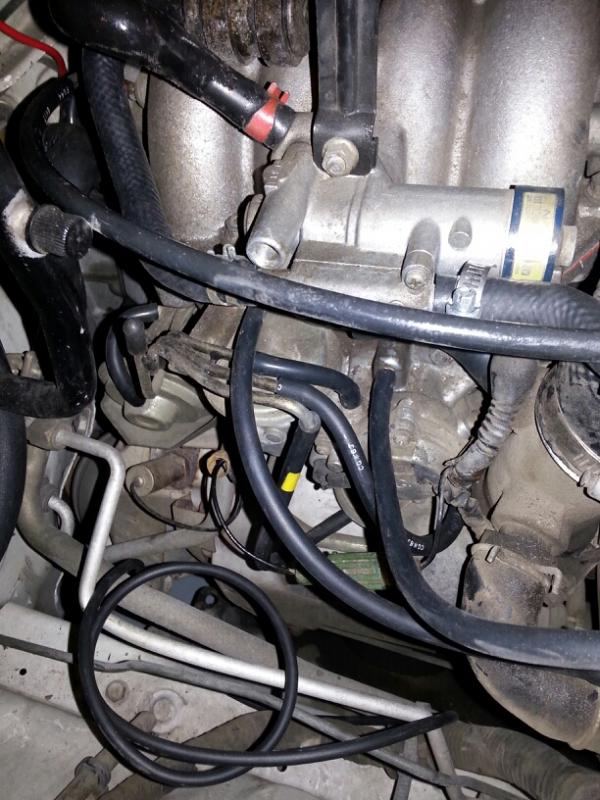

Hi everyone, i can't tell if my vacuum lines are correctly plumbed. take a look and let me know if what you see is correct or needs to change.
The top left hose that goes out of the screen is going to the factory BOV. the hose on the right of the screen is going to the pressure sensor.
also where is the one thats vacuum capped off supposed to go?
disregard the extra vacuum tubing sitting in the engine bay. i forgot to move it before taking the pictures
Model: turbo II
specifics: all stock
Hi everyone, i can't tell if my vacuum lines are correctly plumbed. take a look and let me know if what you see is correct or needs to change.
The top left hose that goes out of the screen is going to the factory BOV. the hose on the right of the screen is going to the pressure sensor.
also where is the one thats vacuum capped off supposed to go?
disregard the extra vacuum tubing sitting in the engine bay. i forgot to move it before taking the pictures
