Vacuum hose help?
#2
Full Member
iTrader: (2)
Join Date: Aug 2005
Location: New Hampshire
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
The bac is supplied by the intake. Should have 2 hoses coming off it.
Is this an s5 or s4. I'll see if i can get pics tomorrow. That hose with the check valve goes on the side towards the fire wall should be a hose that runs under the tb to the vacuum pot actuator
Is this an s5 or s4. I'll see if i can get pics tomorrow. That hose with the check valve goes on the side towards the fire wall should be a hose that runs under the tb to the vacuum pot actuator
#3
Full Member
iTrader: (1)
Join Date: Apr 2012
Location: Phoenix
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts

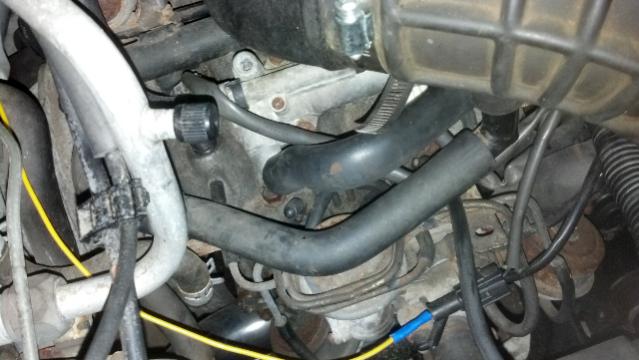

The white valve with the two nipple is the thermowax. Take the line in your last pic and connect it underneath your throttlebody to a actuators connected to the first set of butterfly valves. It's on the right hand side of your throttle body. Make sure the checkvalve is pointed in the right direction to allow air from the white valve to the actuator. Just blow into to both side to see which way that is. The second pic I believe connects to your bac. There should be a little valve that bolts to that side of your intake that it connects to. It has a wire with a white plug attached.
#5

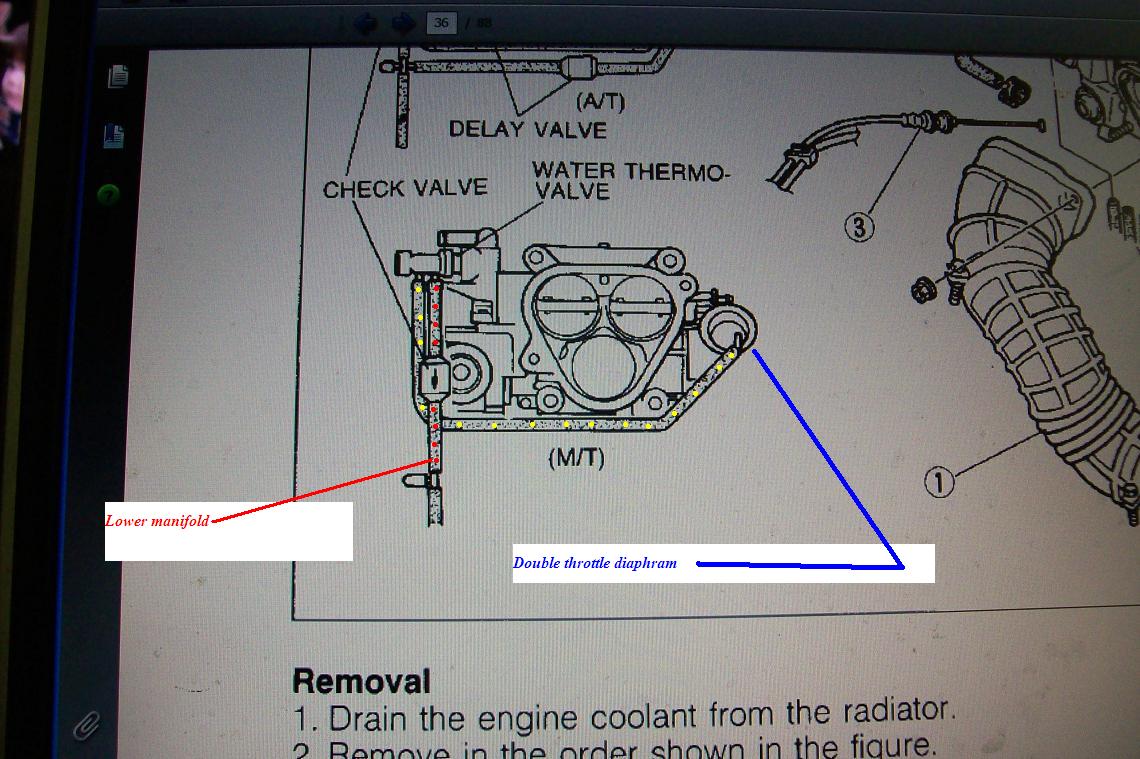

okay i went ahead and found this and this is how its hooked up.
https://www.rx7club.com/attachments/...c-watertwo-jpg
I just need to find where this plug goes to

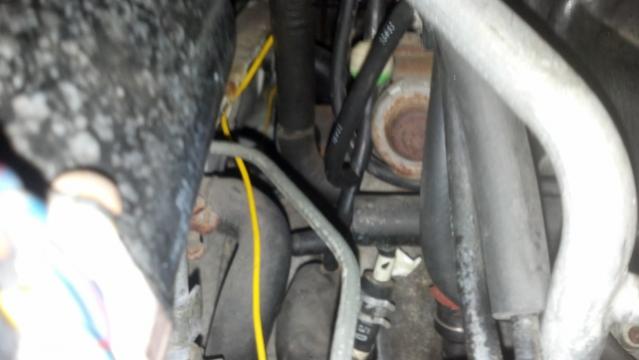

And as far as the second picture, i cant find any places to put the hose on, on the bac
I really appreciate the fast response
https://www.rx7club.com/attachments/...c-watertwo-jpg
I just need to find where this plug goes to
And as far as the second picture, i cant find any places to put the hose on, on the bac
I really appreciate the fast response
